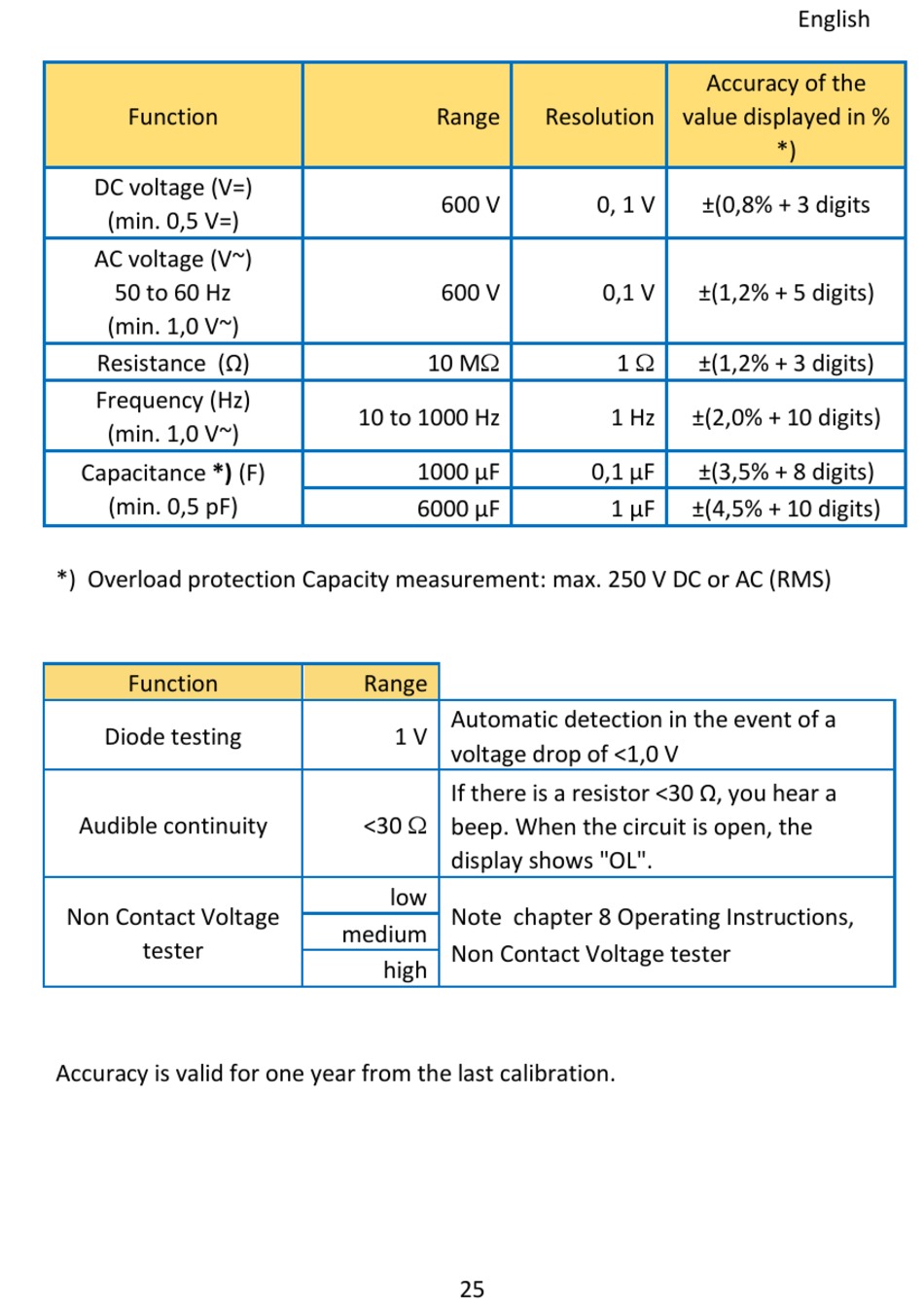

PANCONTROL PAN Pocketmeter Bedienungsanleitung Seite 25

Function
DC voltage (V=)
(min. 0,5 V=)
AC voltage (V~)
50 to 60 Hz
(min. 1,0 V~)
Resistance (Ω)
Frequency (Hz)
(min. 1,0 V~)
Capacitance *) (F)
(min. 0,5 pF)
*) Overload protection Capacity measurement: max. 250 V DC or AC (RMS)
Function
Diode testing
Audible continuity
Non Contact Voltage
tester
Accuracy is valid for one year from the last calibration.
Range
600 V
600 V
10 M
10 to 1000 Hz
1000 µF
6000 µF
Range
Automatic detection in the event of a
1 V
voltage drop of <1,0 V
If there is a resistor <30 Ω, you hear a
<30 
beep. When the circuit is open, the
display shows "OL".
low
Note chapter 8 Operating Instructions,
medium
Non Contact Voltage tester
high
25
Accuracy of the
Resolution value displayed in %
0, 1 V ±(0,8% + 3 digits
0,1 V ±(1,2% + 5 digits)
1 
±(1,2% + 3 digits)
1 Hz ±(2,0% + 10 digits)
0,1 µF ±(3,5% + 8 digits)
1 µF ±(4,5% + 10 digits)
