INSTALLATION
the "I" position; a green indicator indicates the equipment is in operation (Fig. 15).
• Check connection of the cabinet connector to the compressor (Fig. 11).
• Check connection of the cabinet manometer hose to the pneumatic block of the compressor
(Fig. 6).
• Check to ensure the condensate drain hose on the dryer and the hose from the pressure switch
are properly connected to the collection tank (Fig. 7).
The compressor is not equipped with a backup power supply.

15. PNEUMATIC AND ELECTRICAL DIAGRAMS

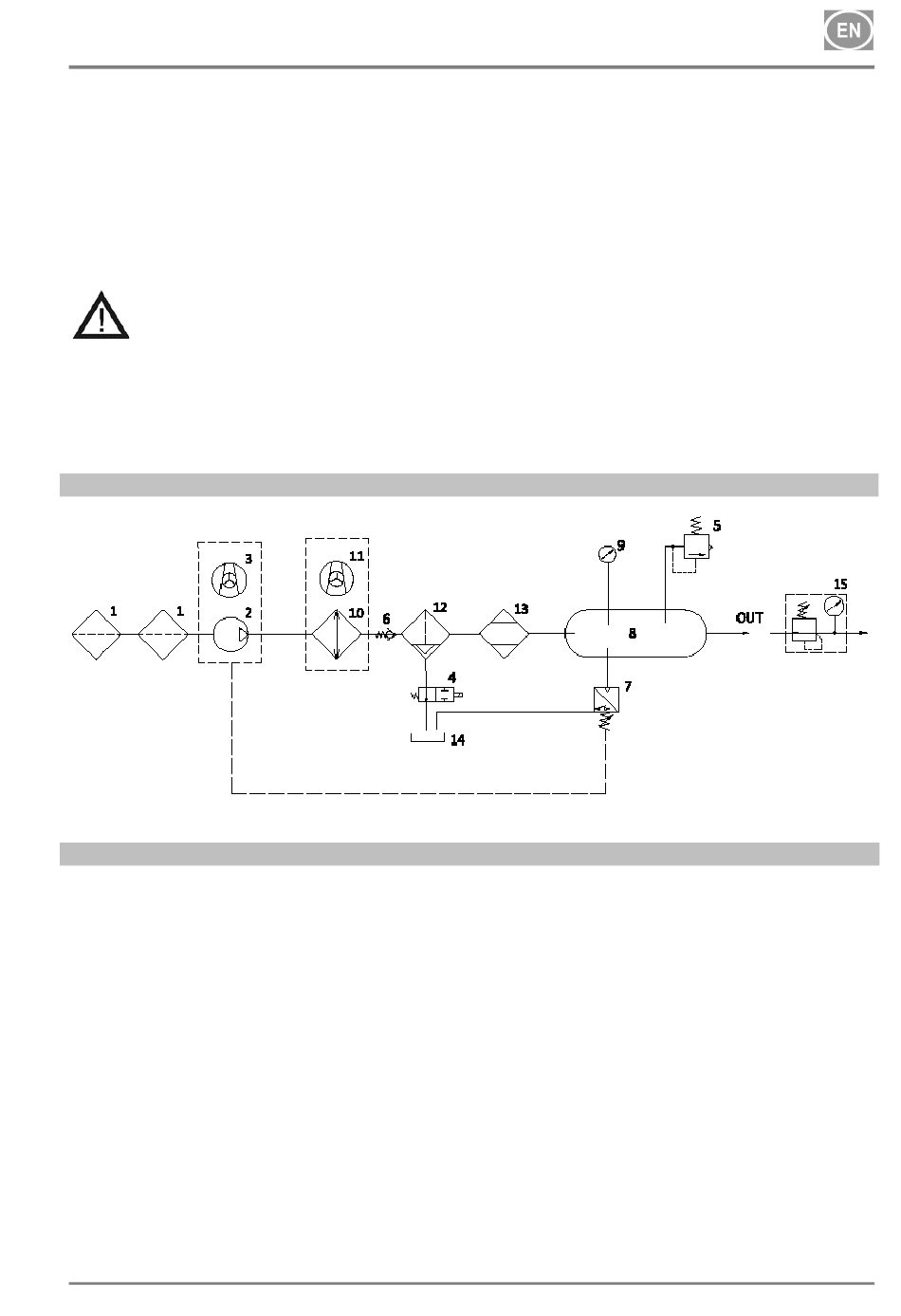

15.1. Pneumatic diagram
DK50 PLUS/M, DK50 2V/M
Description to pneumatic diagram:
1 Inlet filter
2 Air pump
3 Fan
4 Solenoid valve
5 Safety valve
6 Non-return valve
7 Pressure switch
8 Air tank
03/2023
9 Pressure gauge
10 Cooler
11 Cooler fan
12 Condensate separator
13 Dryer
14 Condensate collection vessel
15 Regulator with pressure gauge
29 NP-DK50 PLUS, 2V-ADS-A-3_03-2023
