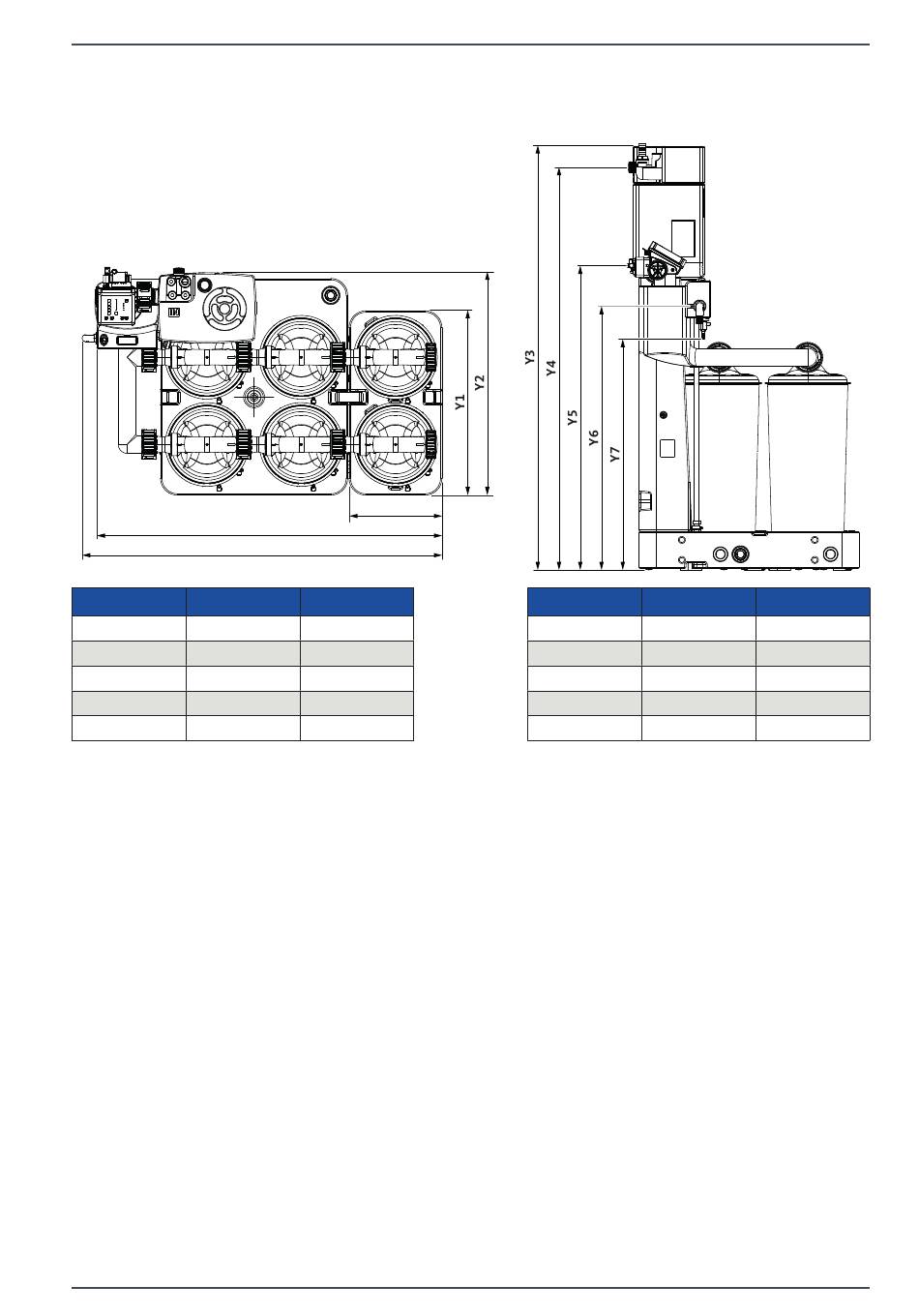

4.6.4 QWIK-PURE
Pos.‑Nr. [mm]
[X1] 1278
[X2] 1234
[X3] 335
[Y1] 655
[Y2] 790
90
®
X3
X2
X1
[in]
50.32
48.58
13.19
25.79
31.10
Pos.‑Nr. [mm]
[Y3] 1482
[Y4] 1408
[Y5] 1065
[Y6] 922
[Y7] 807
QWIK-PURE
®
[in]
58.35
55.43
41.93
36.30
31.78
