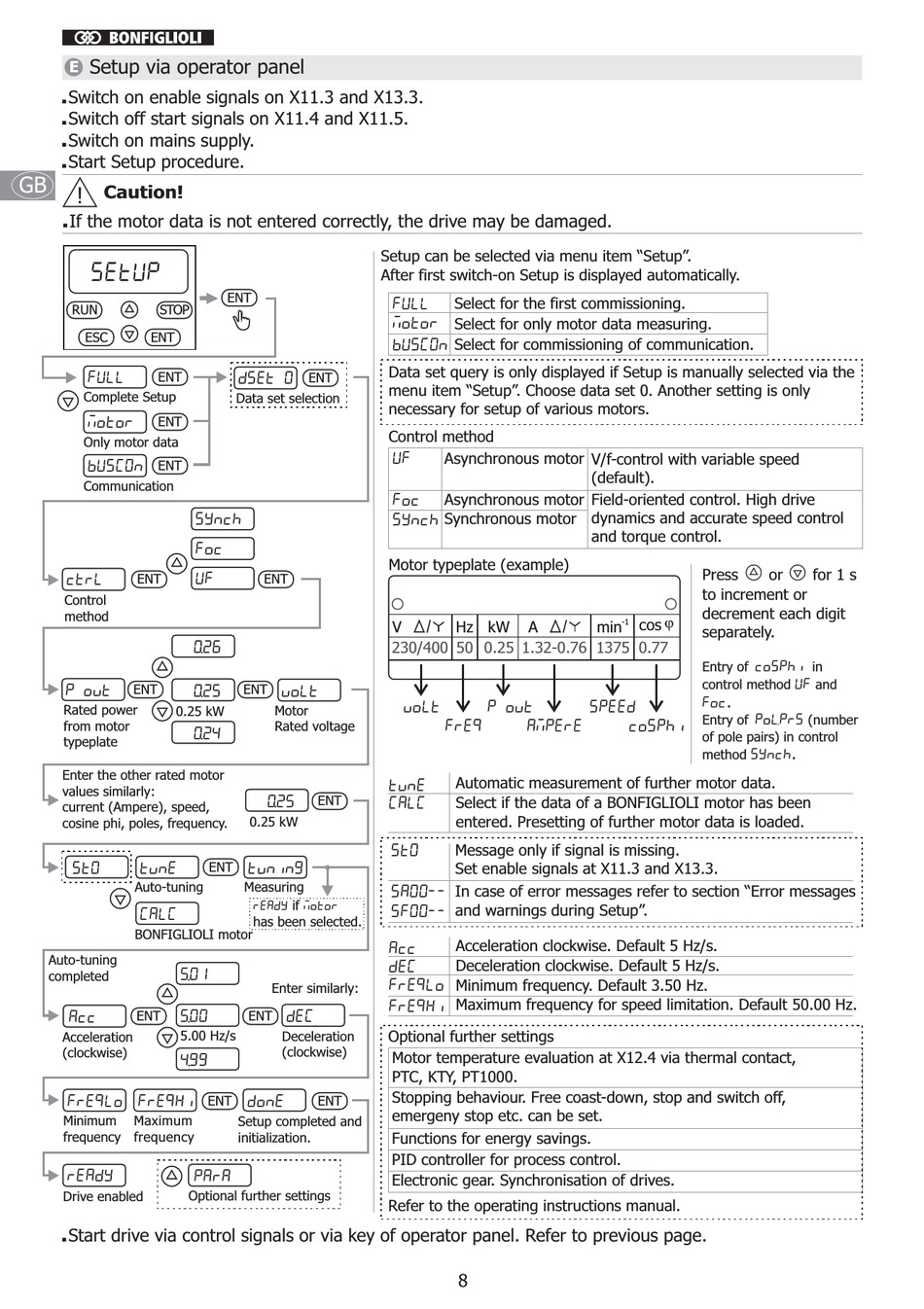

Setup via operator panel
E
,
Switch on enable signals on X11.3 and X13.3.
,
Switch off start signals on X11.4 and X11.5.
,
Switch on mains supply.
,
Start Setup procedure.
GB
Caution!
!
, If the motor data is not entered correctly, the drive may be damaged.
SETUP
RUN
STOP
ESC
ENT
FuLL
ENT
Complete Setup
Motor
ENT
Only motor data
BUSCON
ENT
Communication
cTRL
ENT
Control
method
026
P ovt
025
ENT
Rated power
0.25 kW
from motor
024
typeplate
Enter the other rated motor
values similarly:
current (Ampere), speed,
cosine phi, poles, frequency.
STO
Tvne
Auto-tuning
CALC
BONFIGLIOLI motor
Auto-tuning
501
completed
500
Acc
ENT
5.00 Hz/s
Acceleration
(clockwise)
499
FreqLo
FreqHi
Minimum
Maximum
frequency
frequency
ready
Optional further settings
Drive enabled
, Start drive via control signals or via key of operator panel. Refer to previous page.
ENT
Dset 0
ENT
Data set selection
SyNch
Foc
UF
ENT
voLt
ENT
Motor
Rated voltage
025
ENT
0.25 kW
Tvning
ENT
Measuring
ready
Motor
if
has been selected.
Enter similarly:
DEC
ENT
Deceleration
(clockwise)
done
ENT
ENT
Setup completed and
initialization.
Para
Setup can be selected via menu item "Setup".
After first switch-on Setup is displayed automatically.
FuLL
Select for the first commissioning.
Motor
Select for only motor data measuring.
BUSCON
Select for commissioning of communication.
Data set query is only displayed if Setup is manually selected via the
menu item "Setup". Choose data set 0. Another setting is only
necessary for setup of various motors.
Control method
UF
Asynchronous motor
Foc
Asynchronous motor
SyNch
Synchronous motor
Motor typeplate (example)
V
Hz kW
A
230/400
50 0.25
1.32-0.76
voLt
P ovt
Freq
Ampere
Tvne
Automatic measurement of further motor data.
CALC
Select if the data of a BONFIGLIOLI motor has been
entered. Presetting of further motor data is loaded.
StO
Message only if signal is missing.
Set enable signals at X11.3 and X13.3.
SA0O--
In case of error messages refer to section "Error messages
SF0O--
and warnings during Setup".
Acc
Acceleration clockwise. Default 5 Hz/s.
DEC
Deceleration clockwise. Default 5 Hz/s.
FreqLo
Minimum frequency. Default 3.50 Hz.
FreqHi
Maximum frequency for speed limitation. Default 50.00 Hz.
Optional further settings
Motor temperature evaluation at X12.4 via thermal contact,
PTC, KTY, PT1000.
Stopping behaviour. Free coast-down, stop and switch off,
emergeny stop etc. can be set.
Functions for energy savings.
PID controller for process control.
Electronic gear. Synchronisation of drives.
Refer to the operating instructions manual.
8
V/f-control with
variable speed
(default).
Field-oriented control. High drive
dynamics and accurate speed control
and torque control.
Press
to increment or
decrement each digit
cos j
-1
min
separately.
1375
0.77
cosPhi
Entry of
control method
Foc
SPEED
.
PoLPrS
cosPhi
Entry of
of pole pairs) in control
Synch
method
or
for 1 s
in
UF
and
(number
.
