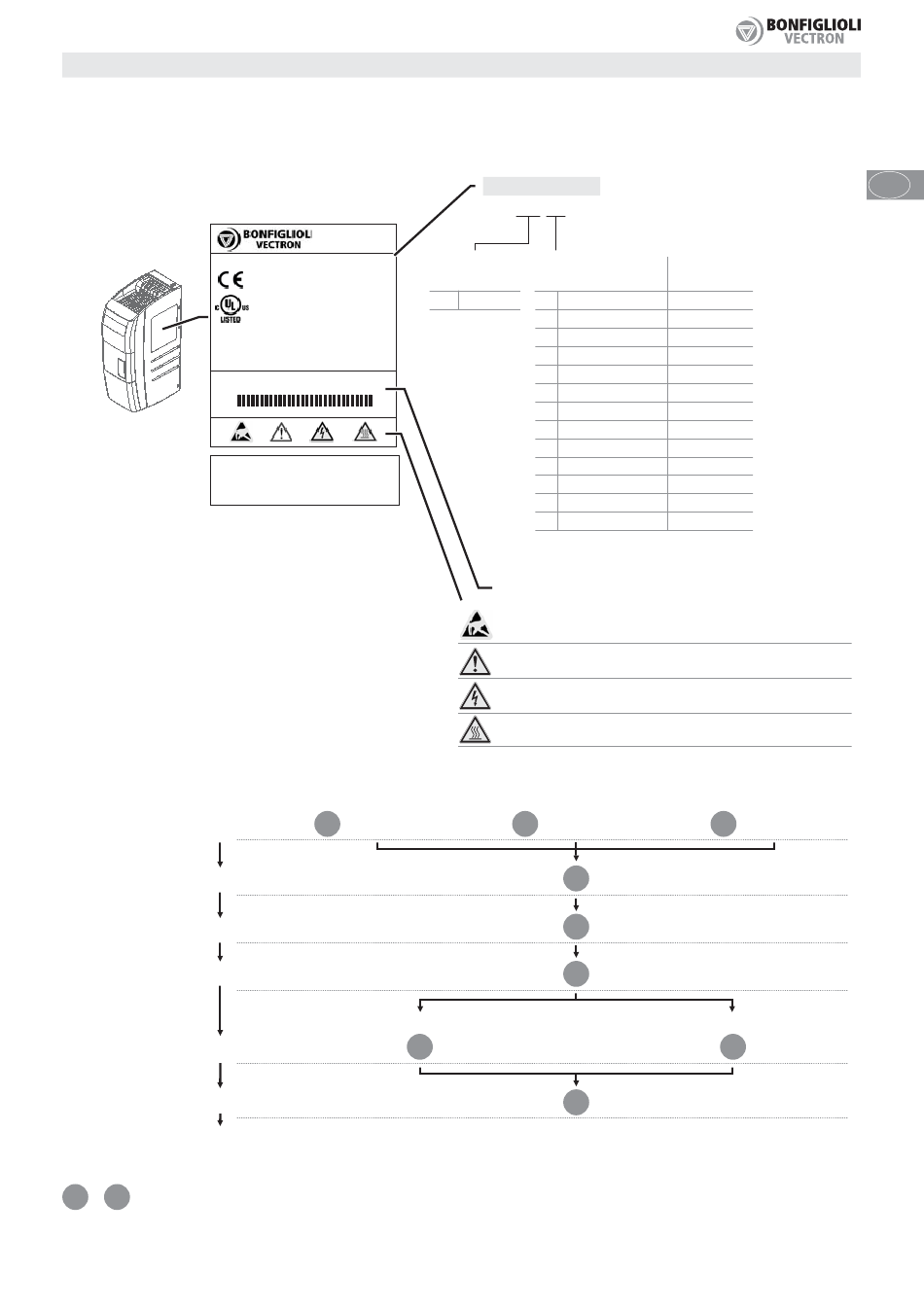

Inverter type
,
Determine the type of frequency inverter.
,
Verify that the rated input voltage corresponds to the local power supply.
,
Verify that the recommended motor shaft power of the frequency inverter corresponds to the rated
power of the motor.
Frequency Inverter AGL 401-05
E204867
Power Conversion
Equipment
PART No.: 123 567 000
SERIAL No.: 04072345
CAUTION
Capacitor Discharge Time > 3 min
Temps de decharge du condensateur > 3 min
Assembly
Mains connection
Motor connection
Commissioning
Connection of control lines
Setup via operator panel
Start drive
: Refer to the corresponding section.
A1
E
...
47807 Krefeld
Germany
Input
400 V / 480 V 50 - 60 Hz
3ph 1.8 A
Output
0 - Uinput, 0 - 1 kHz, 3ph
0.55 kW
83KA
cont.[A]
1.8
60s [A]
2.25
1s [A]
3.0
Ratings for temp. range 0 - 40 °C
Refer to Instruction Manual
SW: 4.2.0
Made in Germany
ATTENTION
Risk of Electric Shock
A1
Frame size 1
Operating via control signals.
D1
Type designation
AGL 401-05
Rated
Recommended
input voltage
motor shaft power
401 400 V
02
0.25 kW
03
0.37 kW
05
0.55 kW
07 0.75 kW
09
1.1 kW
11
1.5 kW
13
2.2 kW
15
3.0 kW
18
4.0 kW
19
5.5 kW
21
7.5 kW
22
9.2 kW
23
11.0 kW
Software version
Warning! Electrostatic sensitive components.
Warning! High leakage current.
Warning! Dangerous voltage. Risk of electric shock.
Warning! Hot surfaces.
A2
Frame size 2
B
C
D
E
3
Frame size
1
1
1
1
1
1
1
2
2
3
3
3
3
A3
Frame size 3
Operating via operator panel.
D2
