Type 701080 (Short Housing) - JUMO miroTRON Kurzanleitung

5.3.1

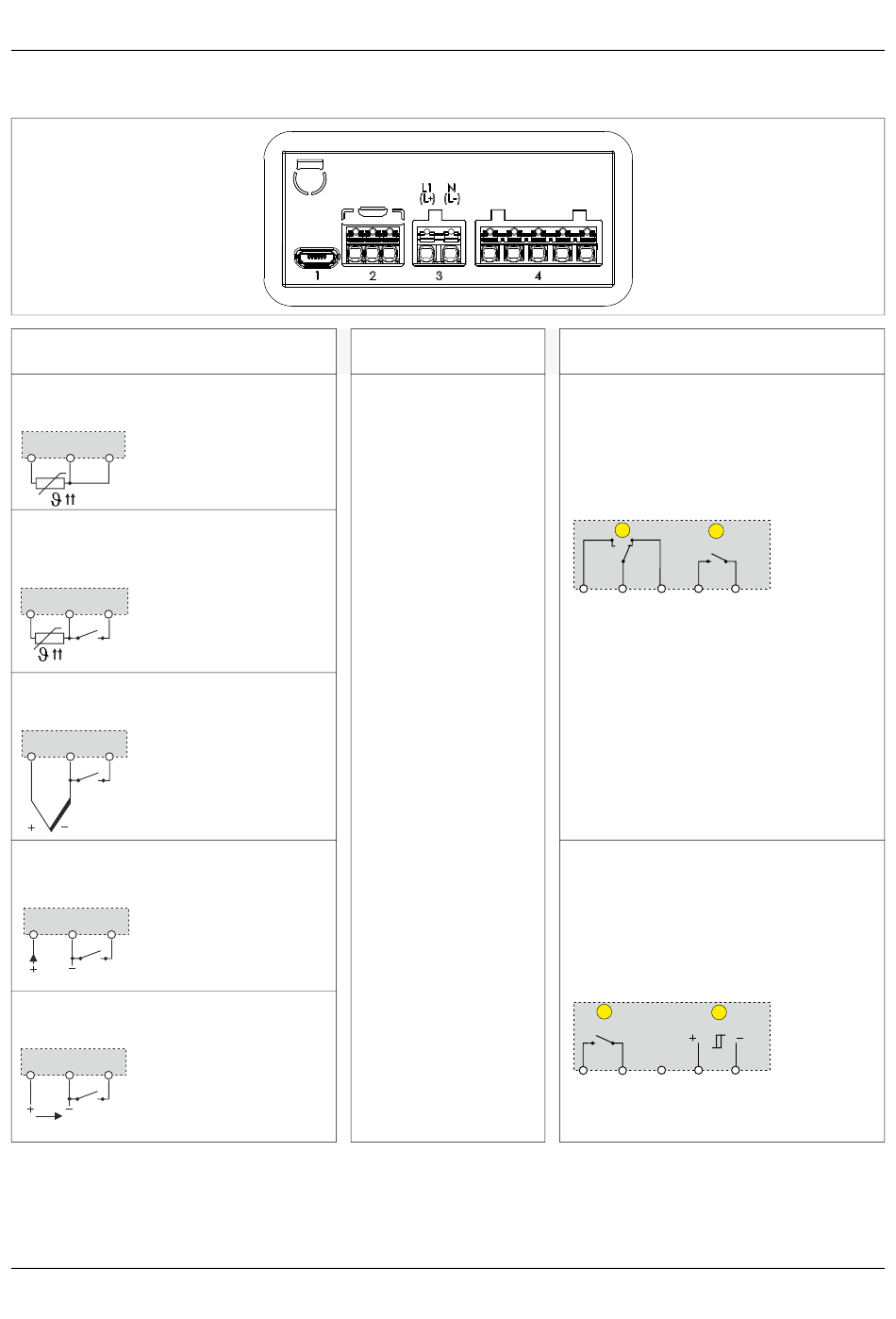

Type 701080 (short housing)

Terminal strip 2:
Analog input, digital input
RTD temperature probe in three-wire cir-
cuit (no digital input)
3
1 2
RTD temperature probe in two-wire circuit
and
Digital input
2 3
1
Thermocouple and
digital input
2 3
1
Current 0(4) to 20 mA and
digital input
1 2 3
I
x
Voltage 0 to 10 V and
digital input
3
1 2
U
x
Terminal strip 3:
L1(L+), N(L-)
Voltage supply (see
nameplate)
AC 230 V, 48 to 63 Hz
or
AC 115 V, 48 to 63 Hz
or
DC 12 to 24 V
5 Electrical connection
Terminal strip 4:
Digital outputs
1 relay changeover contact,
1 relay normally open contact
Digital output 1 (changeover contact) and
digital output 2 (normally open contact):
1 2
2 3 4
1
The two relays are not allowed to be oper-
ated on different mains voltage circuits. It
is also not admissible to mix how the re-
lays are operated – using a SELV electri-
cal circuit and a mains supply circuit.
1 relay normally open contact,
1 digital output DC 0/14 V
Digital output 1 (normally open contact)
and
digital output 2 (DC 0/14 V):
1 2
DC 0/14V
3 4
1 2
5
5
21
