Function diagram and main components

Fig.

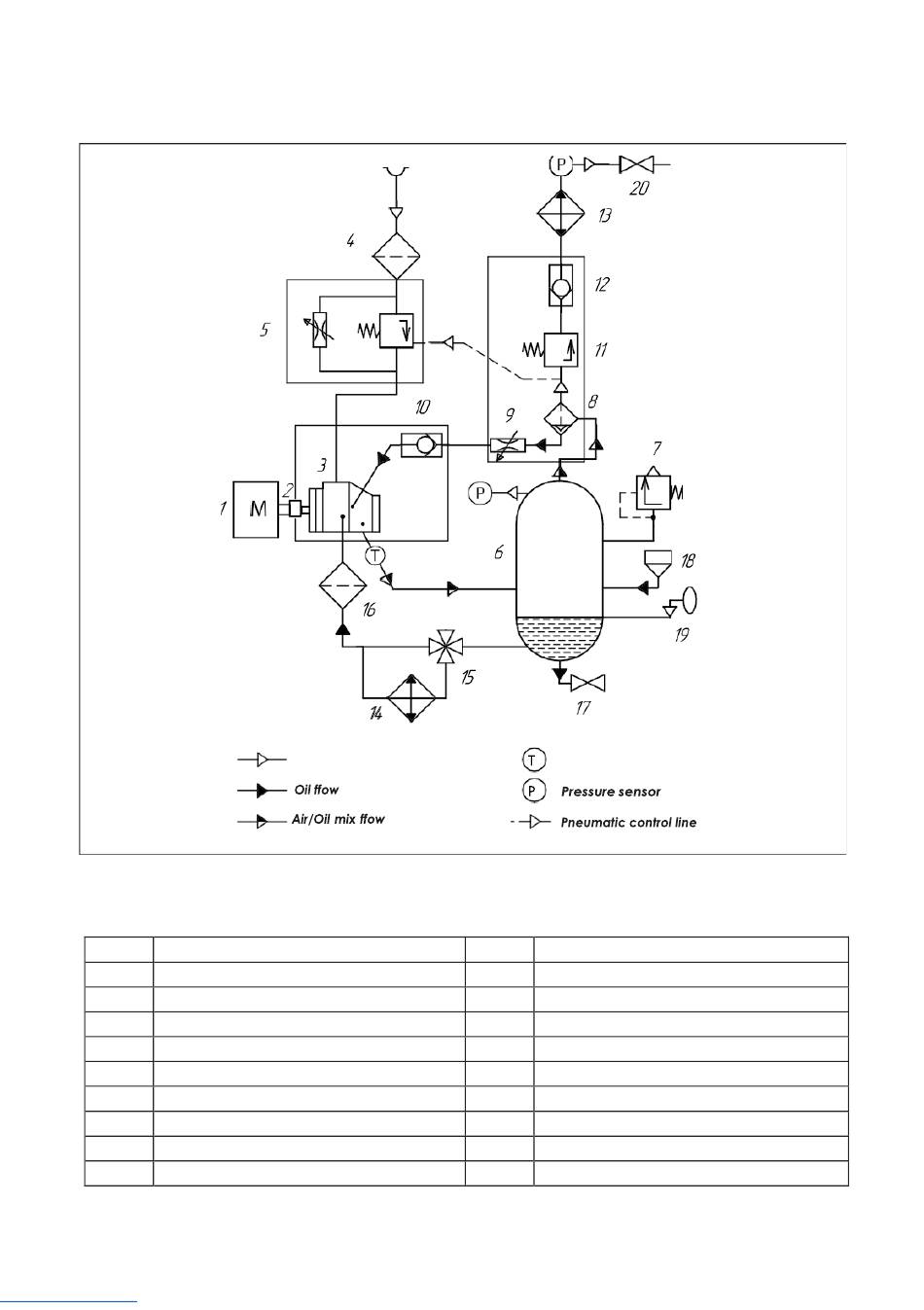

2.3 Function diagram DV75-90
Main components
1 Electric motor
2 Flexible coupling
3 Air end
4 Air filter
5 Intake valve
6 Air-Oil separation tank
7 Safety valve
8 Air-Oil separator
9 Throttle valve
10 Non-return valve
+7 (800) 777-83-75(звонок бесплатный)
www.v-p-k.ru
Air ffow Temperature sensor
11 Min. Pressure valve
12 Non-return valve
13 Heat-exchanger, Air section
14 Heat-exchanger, Oil section
15 Thermostatic valve
16 Oil filter
17 Drain valve
18 Oil filling plug
19 Oil level sight glass
20 Air outlet valve
