3.5 Pneumatic circuit diagram

6

3.6 Connection to power supply and electric circuit diagram

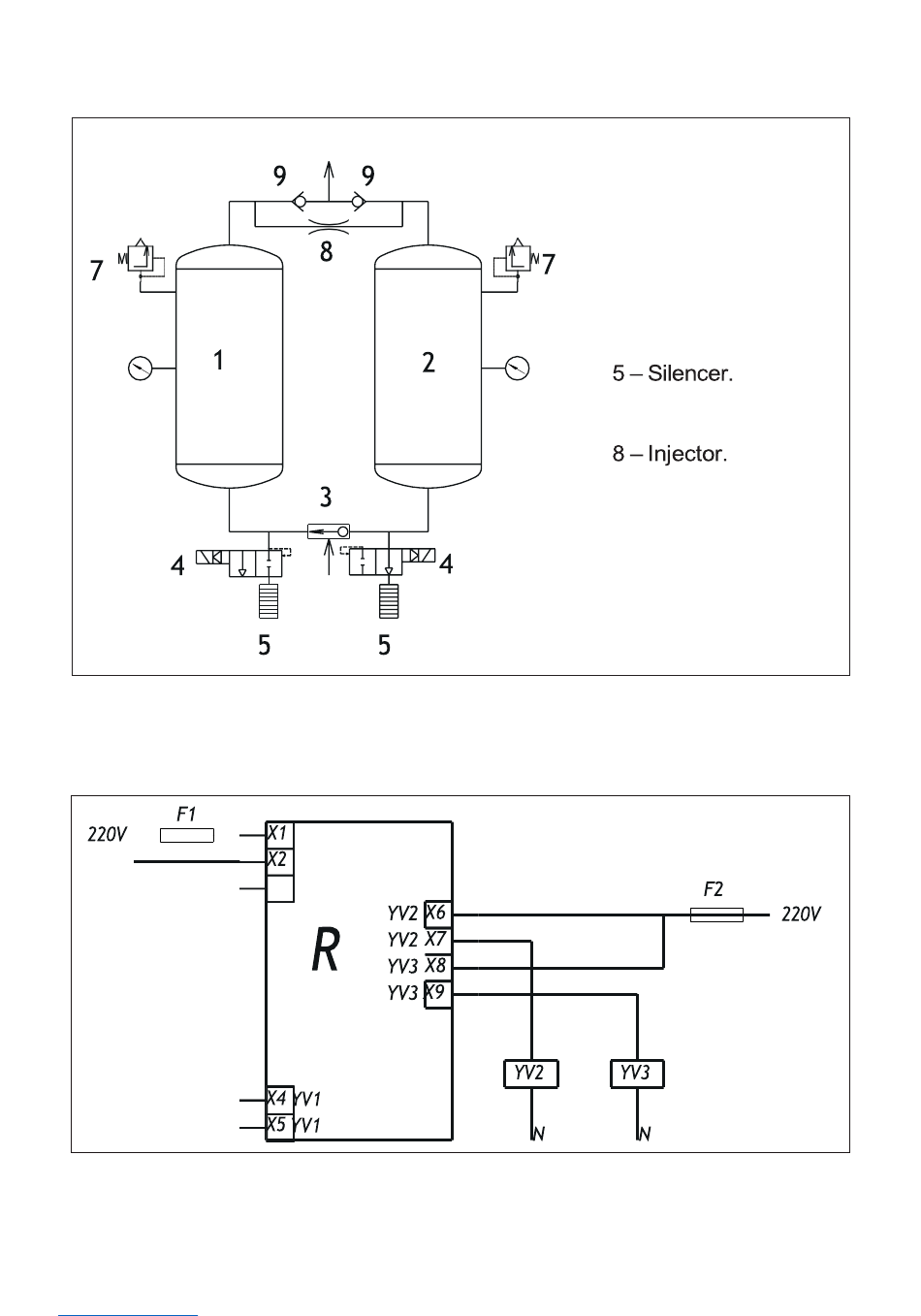

Figure 3.6.1 displays an electrical schematic diagram for dryers.
N
PE
Figure 3.6.1. Electrical schematic diagram
+7 (800) 777-83-75(звонок бесплатный)
www.v-p-k.ru
10
X3
1 – Left tower.
2 – Right tower.
3 – Bypass valve.
4 – Solenoid valve.
6 – Manometer.
6
7 – Safety valve.
9 – Check valve.
10 – Outlet valve
14 14
ADX200
