3.2 Dimensions

3.3 Requirements on installation facility

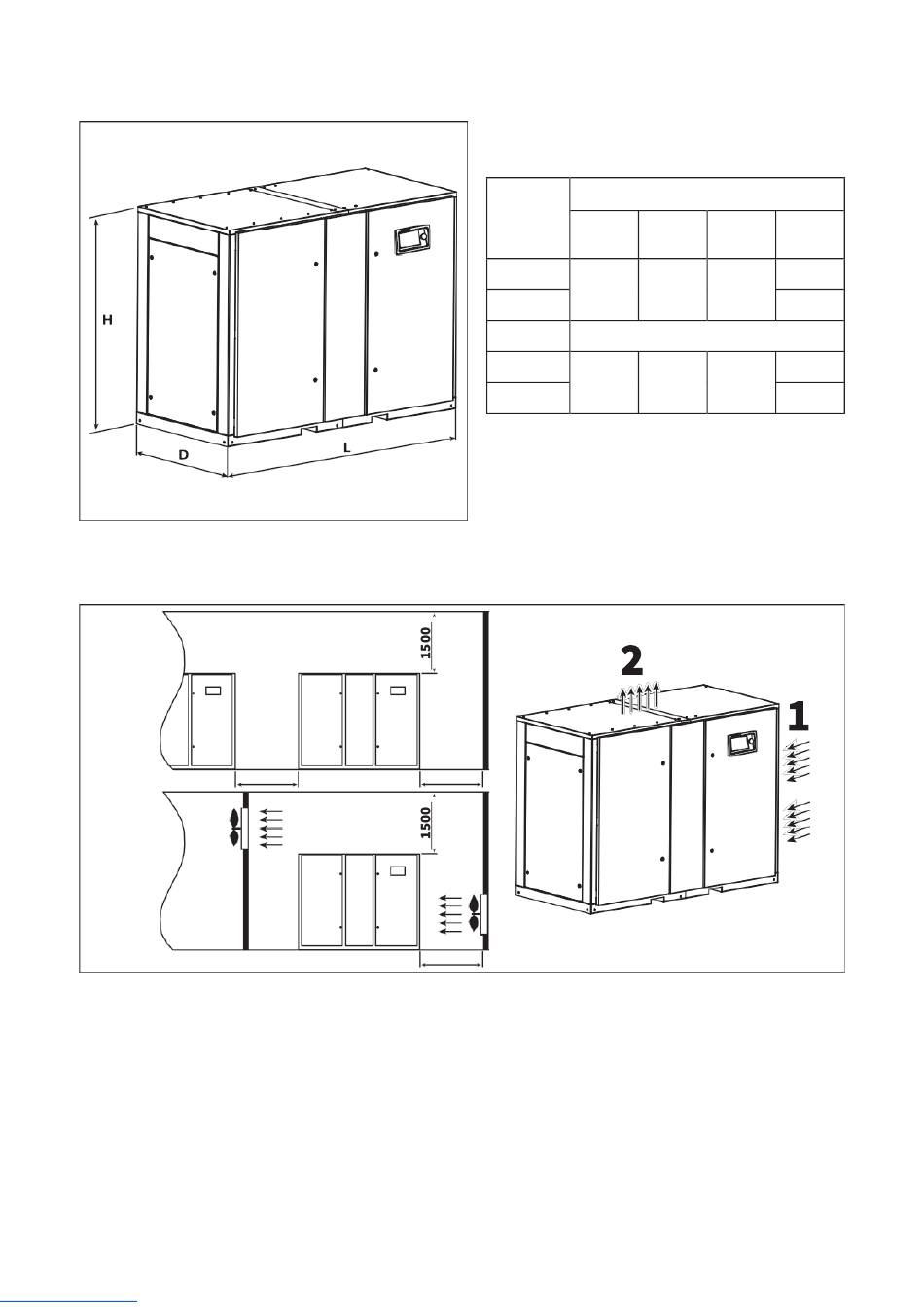

Fig. 3.3 Installation facility proposal DV75 – 90.
1. Air inflow
2. Air outflow
Ensure that the floor of the facility can withstand the weight of the compressor. Install the
compressor on a level surface that is able to bear its weight. Adjust the horizontal axis of the
compressor using a levelling instrument. If the compressor is not anchored to the base on
which it is installed, the tilt angle with respect to the horizontal surface must not exceed 3°.
+7 (800) 777-83-75(звонок бесплатный)
www.v-p-k.ru
1500
Fig. 3.2 Dimension drawing DV75 – 90.
Model
Length
L, mm
DV75
2550
DV90
DV75
2760
DV90
1500
1500
Compressor dimensions
Width Height Weight,
D, mm H,mm
2200
1260 1880
2370
Packaging dimensions
2285
1360 2010
2455
DV9010
kg
