Setup and operate the GK7000 / GK7600

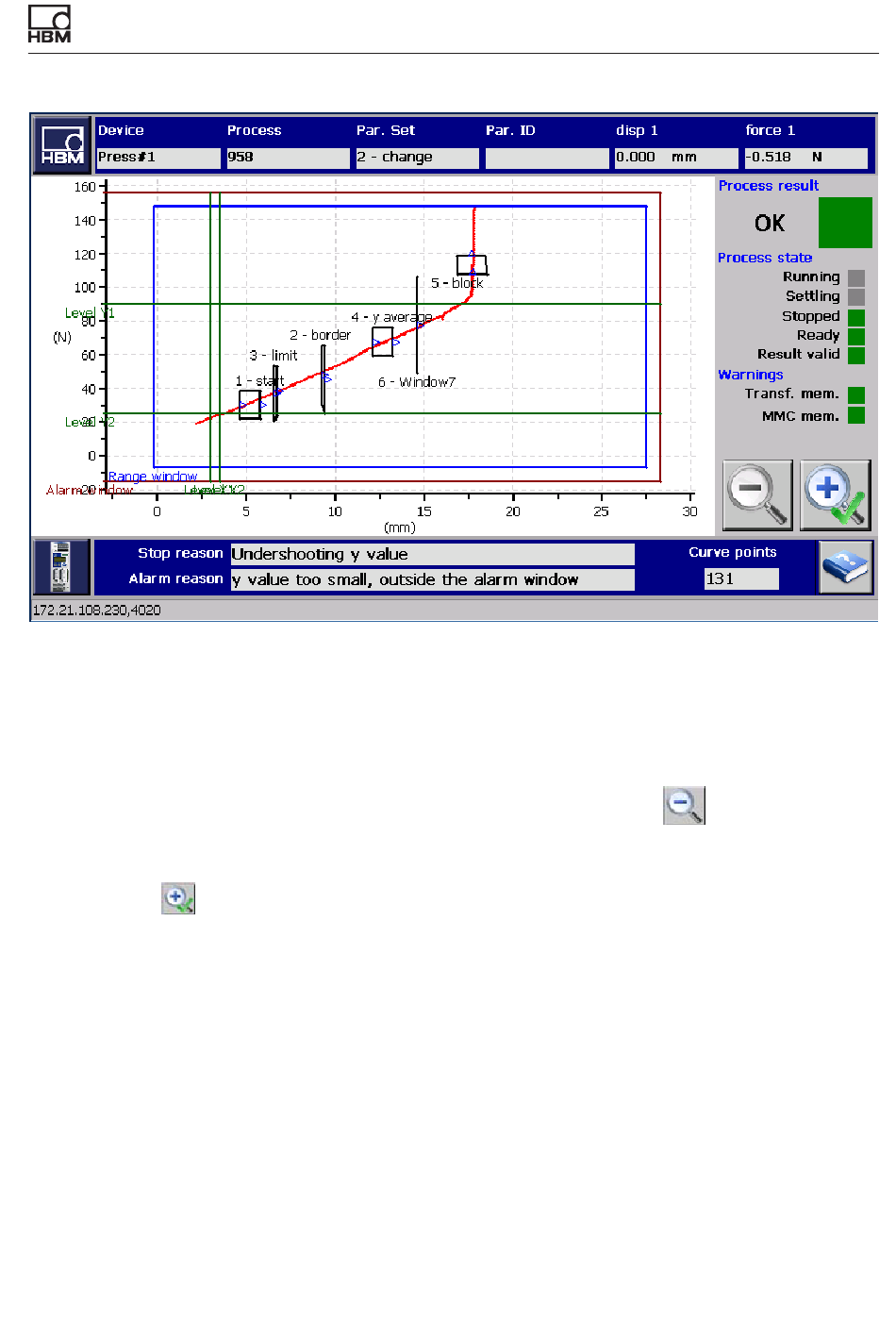

Fig. 8.4 Main screen of EASYmonitorCE
Zooming:
You can zoom in to a specific section of the process by clicking and dragging
the relevant area on the display of the GK7000 / GK7600; the zoom area will
remain visible during subsequent processes. Pressing the button will
return the view to the overall process.
Clicking the button will call up a previously saved zoom. When zooming at
admin level, the system will ask for confirmation for generating a new tolerance
window.
Up to six MP85 can be operated on one Ethernet network using the GK7000 /
GK7600 and the EASYmonitorCE. The display of two or more devices is han­
dled via an overview table page.
The graph view of the relevant MP85 is available at any time by clicking the
relevant "Details" button. Clicking the button "Close" will return the view to the
overview page. Process curves and results cannot be saved in operating
mode.
