a) Peer­to­peer or in a Ethernet­network without DHCP
Set IP-address of MP85 and GK7000 / GK7600. Only the last segment has to
be different, e. g.
IP­address MP85
Gateway address
IP­address GK7000 / GK7600 172.21.108.2
Gateway address

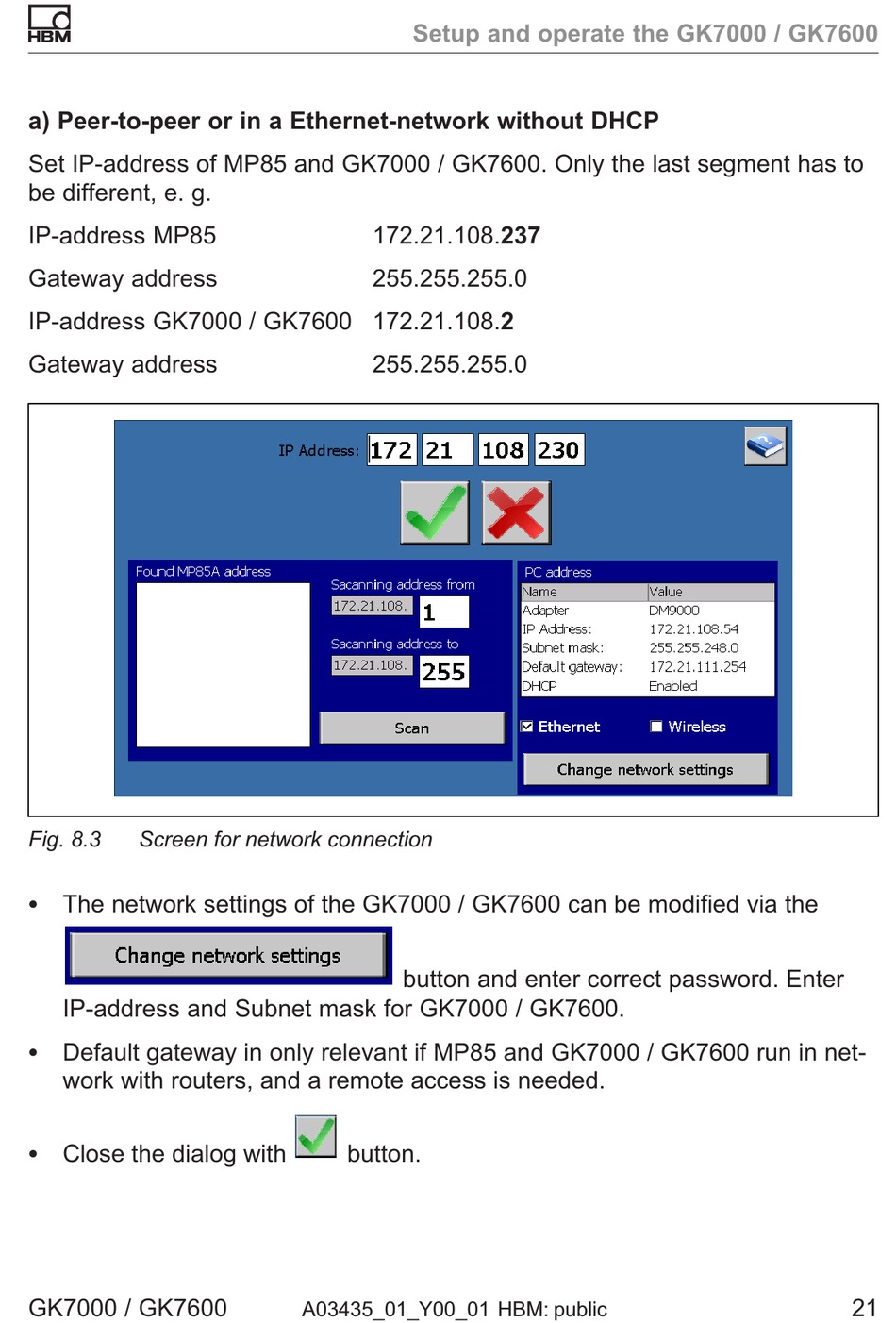

Fig. 8.3 Screen for network connection
S The network settings of the GK7000 / GK7600 can be modified via the
IP­address and Subnet mask for GK7000 / GK7600.
S Default gateway in only relevant if MP85 and GK7000 / GK7600 run in net­
work with routers, and a remote access is needed.
S Close the dialog with
GK7000 / GK7600
Setup and operate the GK7000 / GK7600
172.21.108.237
255.255.255.0
255.255.255.0
button and enter correct password. Enter
button.
