4.2

Load application

Clamp the load cells firmly at the mounting holes and apply the load at the
other end. The recommended screws and tightening torques can be found in
the table below:
Maximum capacities
10 ... 100 kg
1)
Recommended value for the specified property class. Please note the information on screw
dimensions provided by the screw manufacturer.
Load must not be applied to the side where the cable connection is located, as
this would cause a force shunt.
PW15AH
Thread
M6

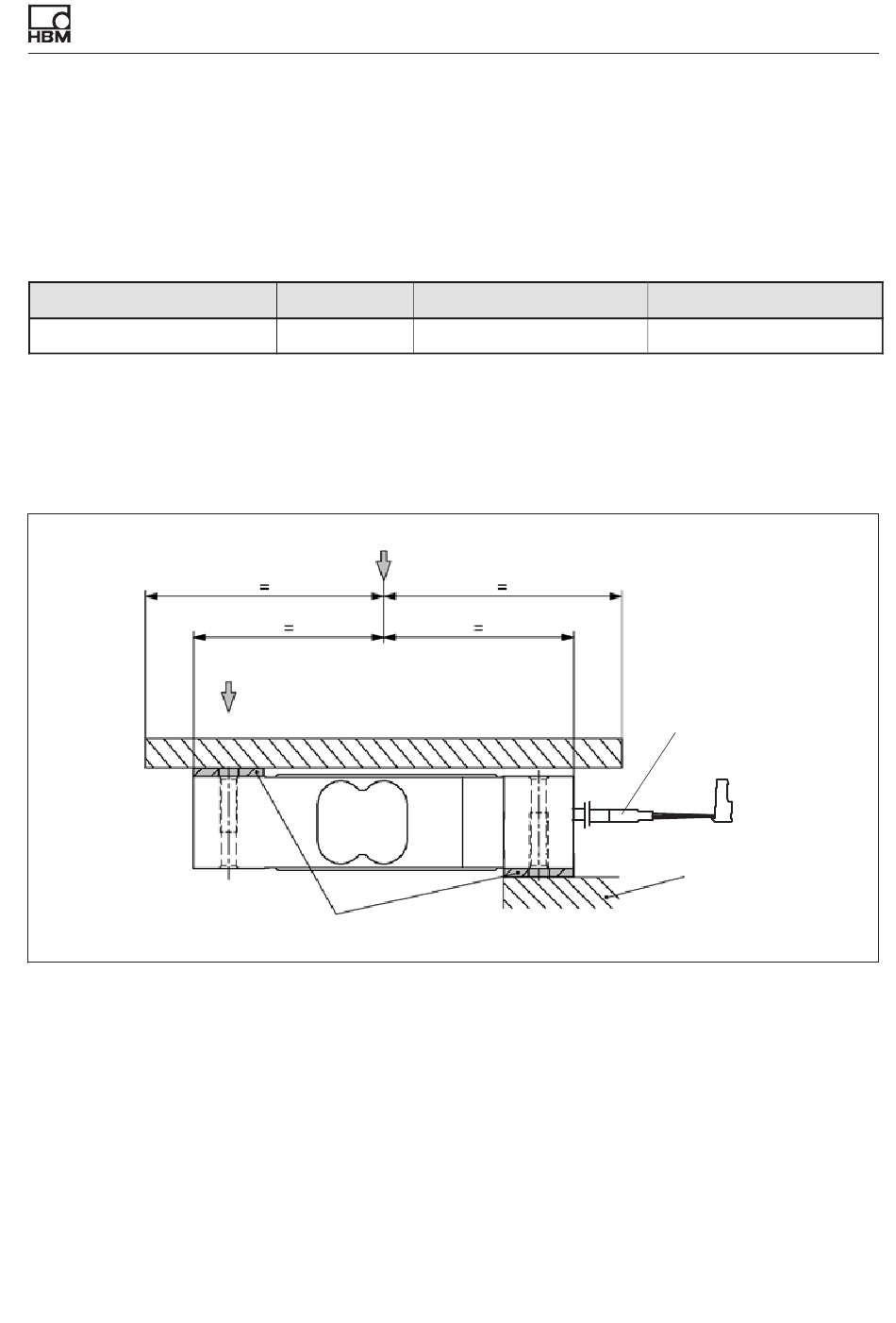

Platform center
Load application
Spacing washer
A02435_02_Y00_00 HBM: public
Mounting and load application
Min. property class
10.9
Tightening torque
14 N⋅m
Connection cable
Mounting
1)
