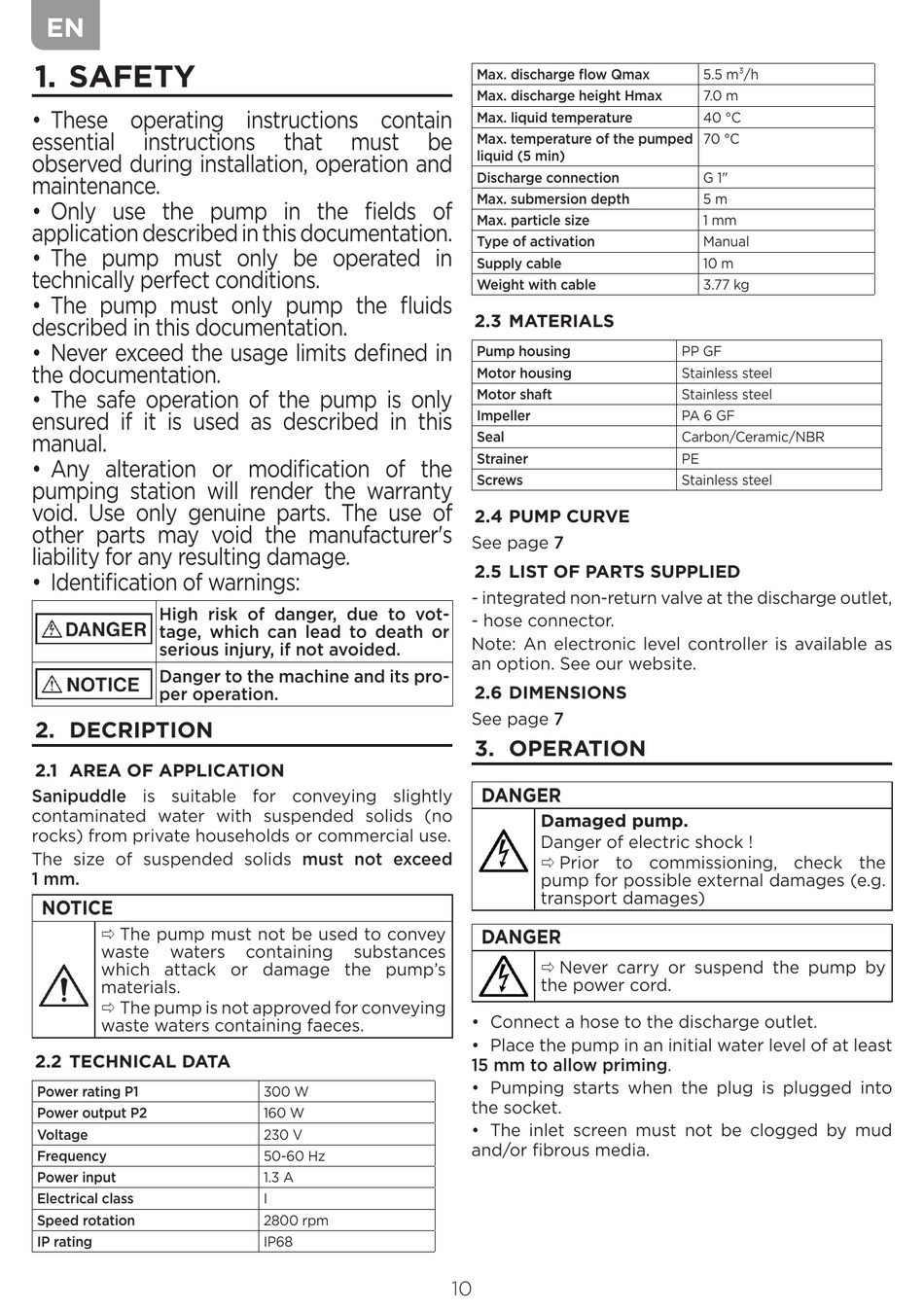

EN
1. SAFETY
• These operating instructions contain
essential instructions
observed during installation, operation and
maintenance.

• Only use the pump in the fields of

application described in this documentation.
• The pump must only be operated in
technically perfect conditions.
• The pump must only pump the fluids
described in this documentation.
• Never exceed the usage limits defined in
the documentation.
• The safe operation of the pump is only
ensured if it is used as described in this
manual.
• Any alteration or modification of the
pumping station will render the warranty
void. Use only genuine parts. The use of
other parts may void the manufacturer's
liability for any resulting damage.
• Identification of warnings:
High risk of danger, due to vot-
tage, which can lead to death or
serious injury, if not avoided.
Danger to the machine and its pro-
per operation.
2. DECRIPTION

2.1 AREA OF APPLICATION

Sanipuddle is suitable for conveying slightly
contaminated water with suspended solids (no
rocks) from private households or commercial use.
The size of suspended solids must not exceed
1 mm.
NOTICE
Ö The pump must not be used to convey
waste waters
which attack or damage the pump's
materials.
Ö The pump is not approved for conveying
waste waters containing faeces.

2.2 TECHNICAL DATA

Power rating P1
Power output P2
Voltage
Frequency
Power input
Electrical class
Speed rotation
IP rating
that must
containing substances
300 W
160 W
230 V
50-60 Hz
1.3 A
I
2800 rpm
IP68
Max. discharge flow Qmax
Max. discharge height Hmax
Max. liquid temperature
be
Max. temperature of the pumped
liquid (5 min)
Discharge connection
Max. submersion depth
Max. particle size
Type of activation
Supply cable
Weight with cable
2.3 MATERIALS
Pump housing
Motor housing
Motor shaft
Impeller
Seal
Strainer
Screws
2.4 PUMP CURVE
See page 7
2.5 LIST OF PARTS SUPPLIED
- integrated non-return valve at the discharge outlet,
- hose connector.
Note: An electronic level controller is available as
an option. See our website.
2.6 DIMENSIONS
See page 7
3. OPERATION
DANGER
Damaged pump.
Danger of electric shock !
Ö Prior to commissioning, check the
pump for possible external damages (e.g.
transport damages)
DANGER
Ö Never carry or suspend the pump by
the power cord.
• Connect a hose to the discharge outlet.
• Place the pump in an initial water level of at least
15 mm to allow priming.
• Pumping starts when the plug is plugged into
the socket.
• The inlet screen must not be clogged by mud
and/or fibrous media.
10
5.5 m³/h
7.0 m
40 °C
70 °C
G 1"
5 m
1 mm
Manual
10 m
3.77 kg
PP GF
Stainless steel
Stainless steel
PA 6 GF
Carbon/Ceramic/NBR
PE
Stainless steel
