4 Installation
Set the necessary voltage on the underside of the unit (110 / 220 / 240 V). Then connect the unit to the
mains supply. Stand the Paratherm on a level working area.

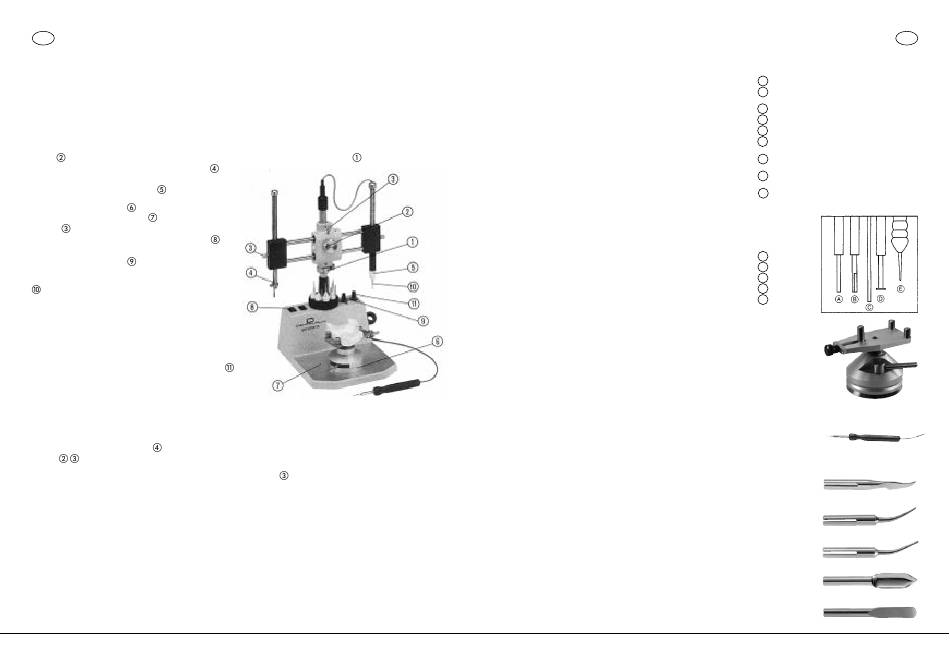

5 Operating the Paratherm
Mount the master model on the model table already available or supplied with the unit. Loosen the knurled
screw and raise the sliding rods to the necessary level. Fasten with retainer ring
eg. analyzing rod in the surveying handpiece
push the selected blocking-out instrument into the
thermal blocking-out handpiece .
Place the model table in the most convenient
position on the work surface . Loosen the locking
screws , so that the arms may be moved freely.
Switch on the thermal blocking-out handpiece
set the desired temperature (maximum 160 °C /
320 °F) on the controller .
Caution! Only change the blocking-out instruments
whilst they are still warm.
5.1 Electric wax knife
The knife is connected by means of the socket on the
rear side of the unit. Only operate the wax-knife with
an instrument in the place.
Set the desired temperature on the potentiometer
Maximum temperature 280 °C / 536 °F.
Caution! Only change the knife whilst it is still warm.
5.2 Locking the surveying arm
(Positioning attachments)
Rotate the surveying handpiece forwards of the centre of the work surface and lock into the position with
screws .
Grip the wire aid in the surveying arm and fix the level using
position, guide the model table onto the wire aid. Correct the level.
When ordering spare parts please quote the unit number (type plate or rear side of the unit).
8
. Grip the instrument
and
and
.
. With the model already clamped into
6

Spare parts

1 Thermal blocking-out instrument 0° REF 094-275-00
1 Thermal blocking-out instrument 2° REF 094-277-00
1 Undercut gauge 0.25 mm REF 094-283-00
1 Undercut gauge 0.35 mm REF 094-284-00
1 Undercut gauge 0.50 mm REF 094-285-00
1 Undercut gauge 0.75 mm REF 094-286-00
1 Analyzing rod REF 094-287-00
1 Graphite holder REF 094-288-00
REF 094-289-00
10 Replacement graphite markers
7

Recommended accessories

(Not included in original kit REF 094-270-00)
REF 094-276-00
1 Thermal blocking-out instrument 1°
REF 094-278-00
1 Thermal blocking-out instrument 3°
1 Thermal blocking-out instrument 4° REF 094-279-00
1 Thermal blocking-out instrument 6° REF 094-280-00
1 Thermal blocking-out instrument 8° REF 094-281-00
Model table REF 086-340-00
Electric wax knife REF 094-272-00
Handpiece, cable and 1 wax knife,
holder for handpiece
In order to regulate the temperature a
transformer and potentiometer have been
built into the Paratherm (REF 094-270-00)
Modelling knife, small REF 089-602-00
Thomas modelling point,
fine REF 089-603-00
Thomas modelling point,
medium REF 089-604-00
Orthodontic wax knife REF 089-605-00
Modelling spatula REF 089-606-00
EN
E
E
D
D
D
D
A
B
C
E
E
E
E
E
