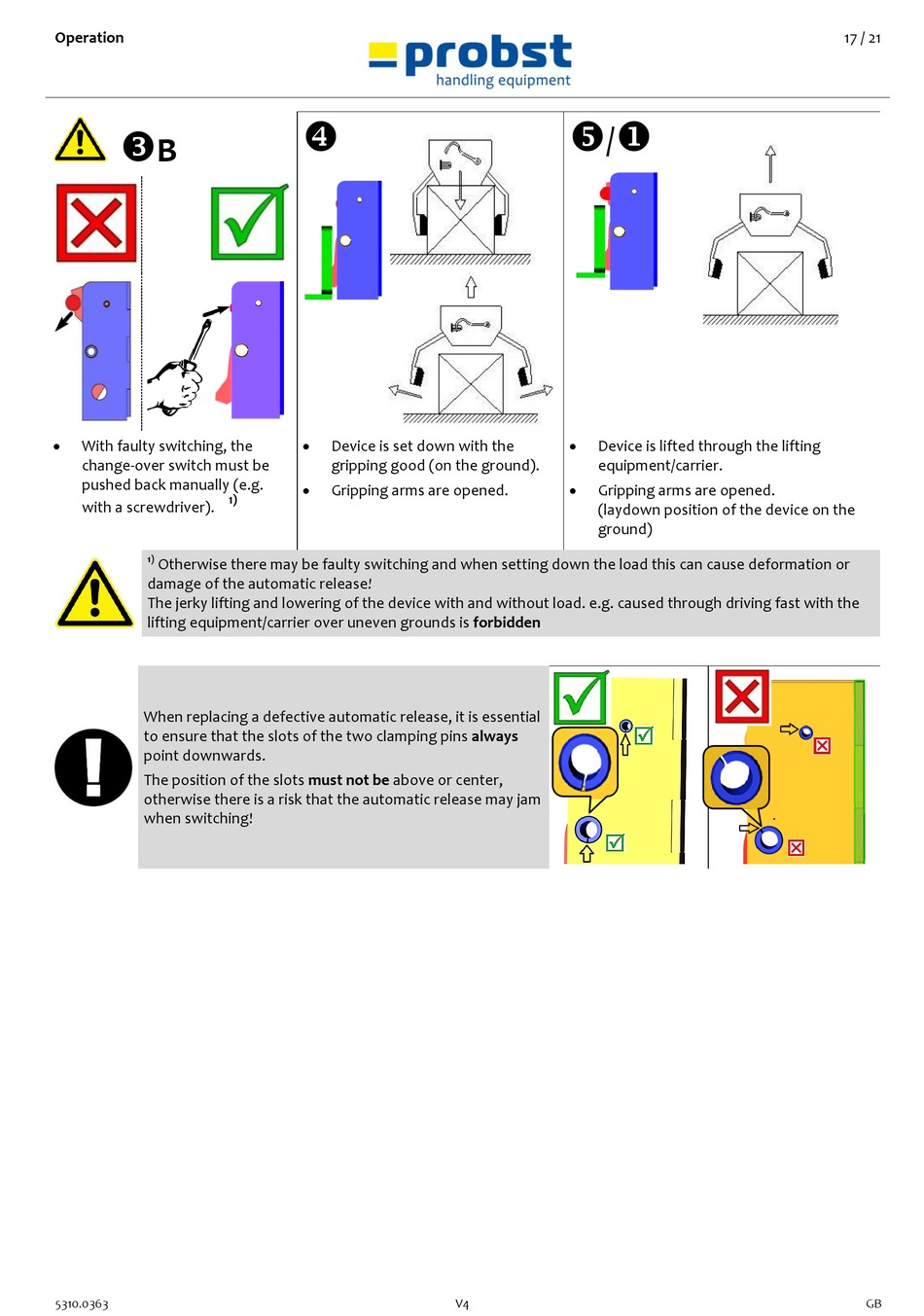

Operation

B

With faulty switching, the
change-over switch must be
pushed back manually (e.g.
with a screwdriver).
1)
Otherwise there may be faulty switching and when setting down the load this can cause deformation or
damage of the automatic release!
The jerky lifting and lowering of the device with and without load. e.g. caused through driving fast with the
lifting equipment/carrier over uneven grounds is forbidden
When replacing a defective automatic release, it is essential
to ensure that the slots of the two clamping pins always
point downwards.
The position of the slots must not be above or center,
otherwise there is a risk that the automatic release may jam
when switching!
5310.0363


Device is set down with the
gripping good (on the ground).

Gripping arms are opened.
1)
 
/

Device is lifted through the lifting
equipment/carrier.

Gripping arms are opened.
(laydown position of the device on the
ground)
