Operation

6 Operation
6.1

Operating for devices with automatic release


The device is connected to the lifting equipment/carrier (e.g. excavator).

Before lifting the device, the gripping range has to be adjusted.

The device is placed over the product, set down, the device closes round the product and it can be lifted.

Set down on the ground again, the device opens automatically, the automatic release locks it into
position so that the device can be lifted without closing up.

Placed over the next product, the automatic release disengages itself and the product can be lifted.
The device therefore is a ONE-MAN-MACHINE.
Shut-down the device without lifting equipment/carrier only on even ground. The gripping arms must be
opened enough, to ensure a secure standing of the device. Otherwise there is a danger of overturning!
The device is mounted with a automatic release, that means the opening and closing of the gripping arms results through
the set down and lifting of the device.

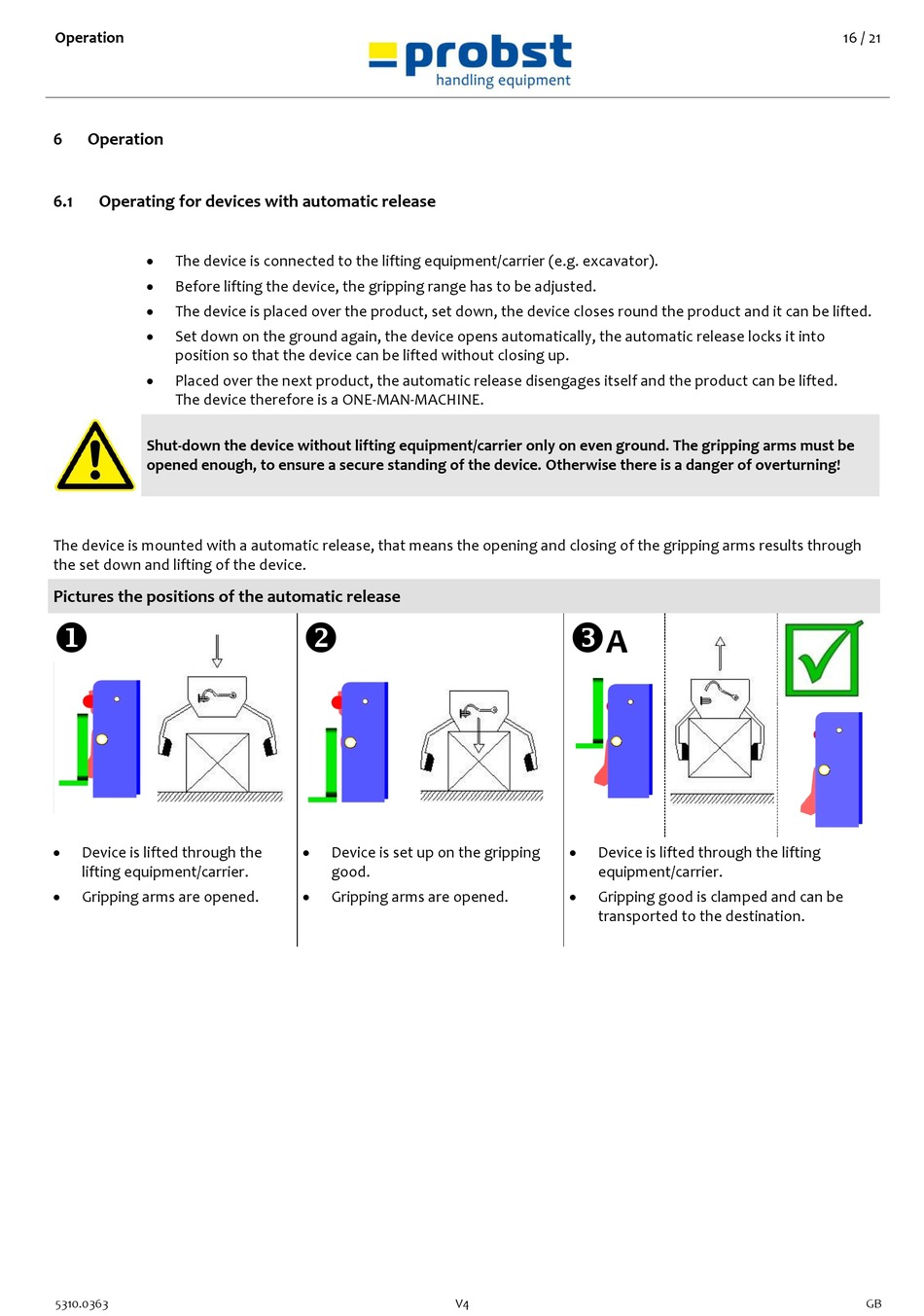

Pictures the positions of the automatic release


Device is lifted through the
lifting equipment/carrier.

Gripping arms are opened.
5310.0363


Device is set up on the gripping
good.

Gripping arms are opened.
V4

A

Device is lifted through the lifting
equipment/carrier.

Gripping good is clamped and can be
transported to the destination.
