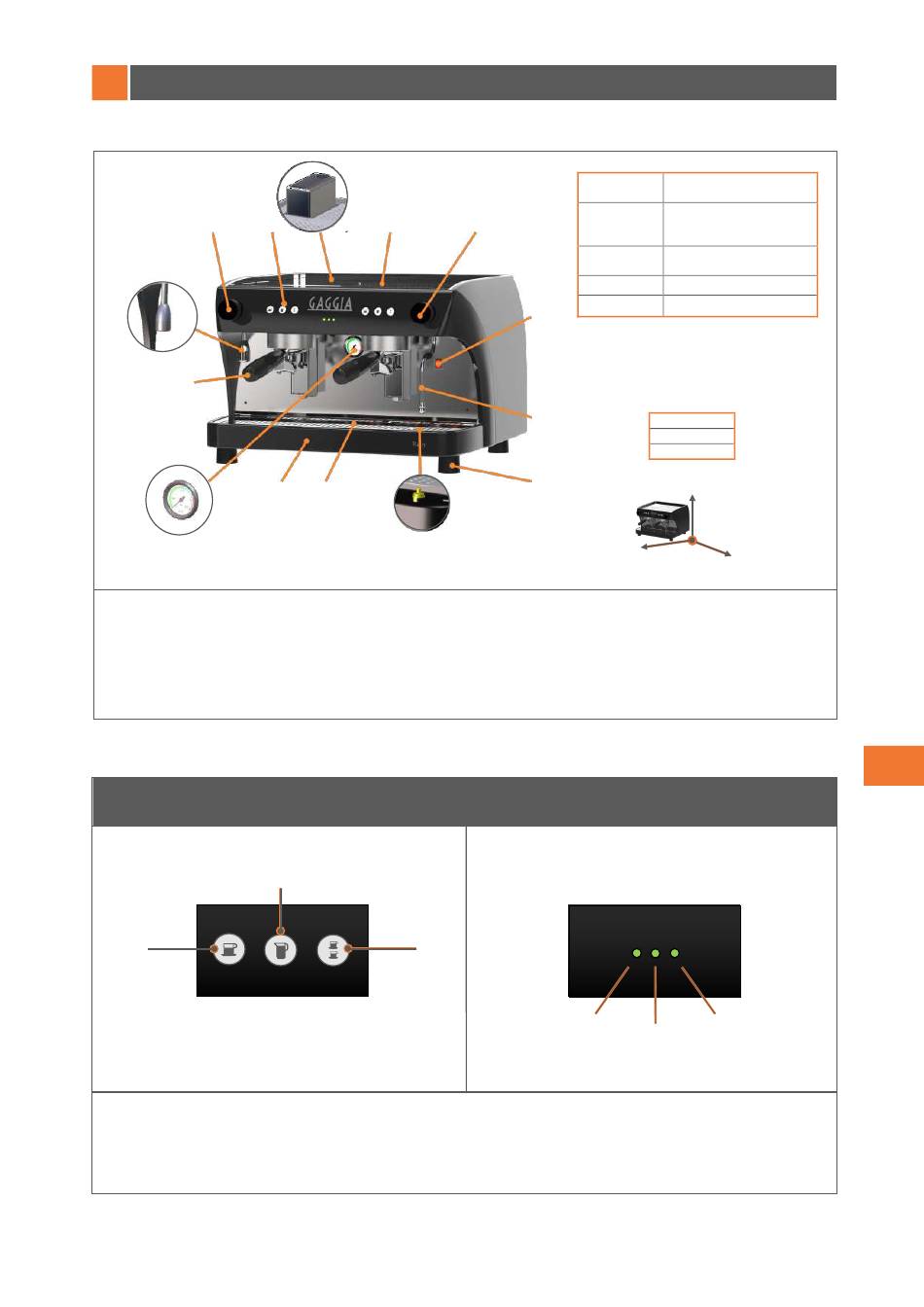

General Description of Ruby 2

2.1 General Overview

1
2
12
11
10
1 - Hot Water knob

2 - Product Selection Buttons

3 - Steam Knob
4 - Cup Warmer Tray
5 - Power Switch
2.2 Product Selection Buttons
a
a - One Coffee
b - Continuous Coffee
c - Two Coffees
13
4
8
9
6 - Steam Arm
7 - Feet
8 - Drip tray
9 - Drain Tray
10 - Boiler Pressure Gauge
b
c
Water supply
Water pump
3
Element
wattage
Boiler capacity
Tank capacity
5
6
7
Indicador nivel (mod. con depósito)
11 - Filter Holder
12 - Hot water Outlet
13 - Water Tank (depends on model)
d
d - Boiler Water Level indicator
e -Tank water level indicator (Tank models)
f - Heating Element Indicator
19
Main water net or inter. tank,
depending on the model
Pump Rot. 8-9 bar
Vibr. Pump 18 bar (mod. With
tank)
2.500 W (230 V)
1.500 W (115 V)
6,5 L
5 L (models with internal tank)
A = 367 mm
B = 567 mm
C = 511 mm
A
B
C
f
e
