Vorbereiten

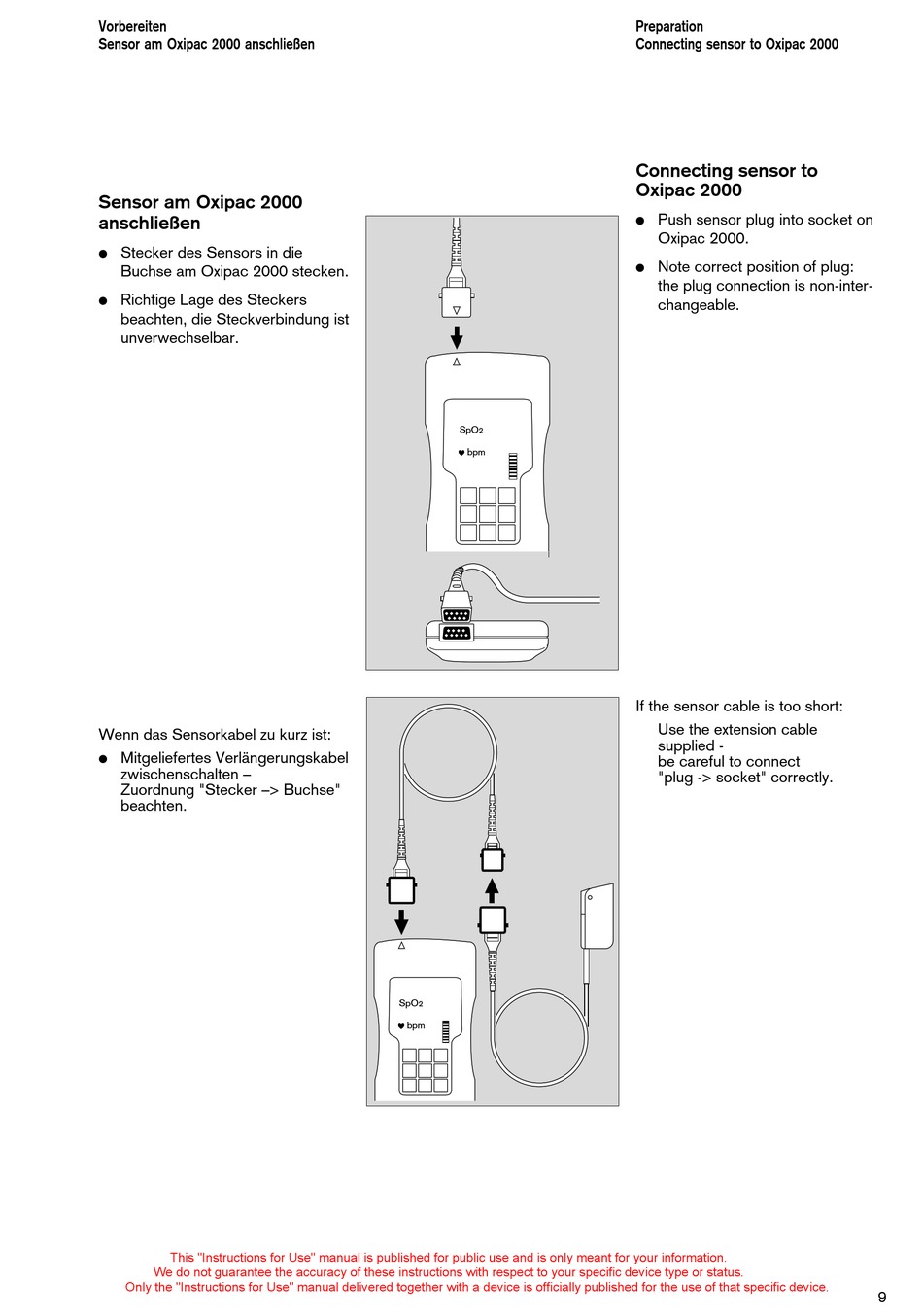

Sensor am Oxipac 2000 anschließen
Sensor am Oxipac 2000
anschließen
Stecker des Sensors in die
Buchse am Oxipac 2000 stecken.
Richtige Lage des Steckers
beachten, die Steckverbindung ist
unverwechselbar.
Wenn das Sensorkabel zu kurz ist:
Mitgeliefertes Verlängerungskabel
zwischenschalten –
Zuordnung "Stecker –> Buchse"
beachten.
This "Instructions for Use" manual is published for public use and is only meant for your information.
We do not guarantee the accuracy of these instructions with respect to your specific device type or status.
Only the "Instructions for Use" manual delivered together with a device is officially published for the use of that specific device.
SpO
2
ª
bpm
SpO
2
ª
bpm
Preparation
Connecting sensor to Oxipac 2000
Connecting sensor to
Oxipac 2000
Push sensor plug into socket on
Oxipac 2000.
Note correct position of plug:
the plug connection is non-inter-
changeable.
If the sensor cable is too short:
Use the extension cable
supplied -
be careful to connect
"plug -> socket" correctly.
