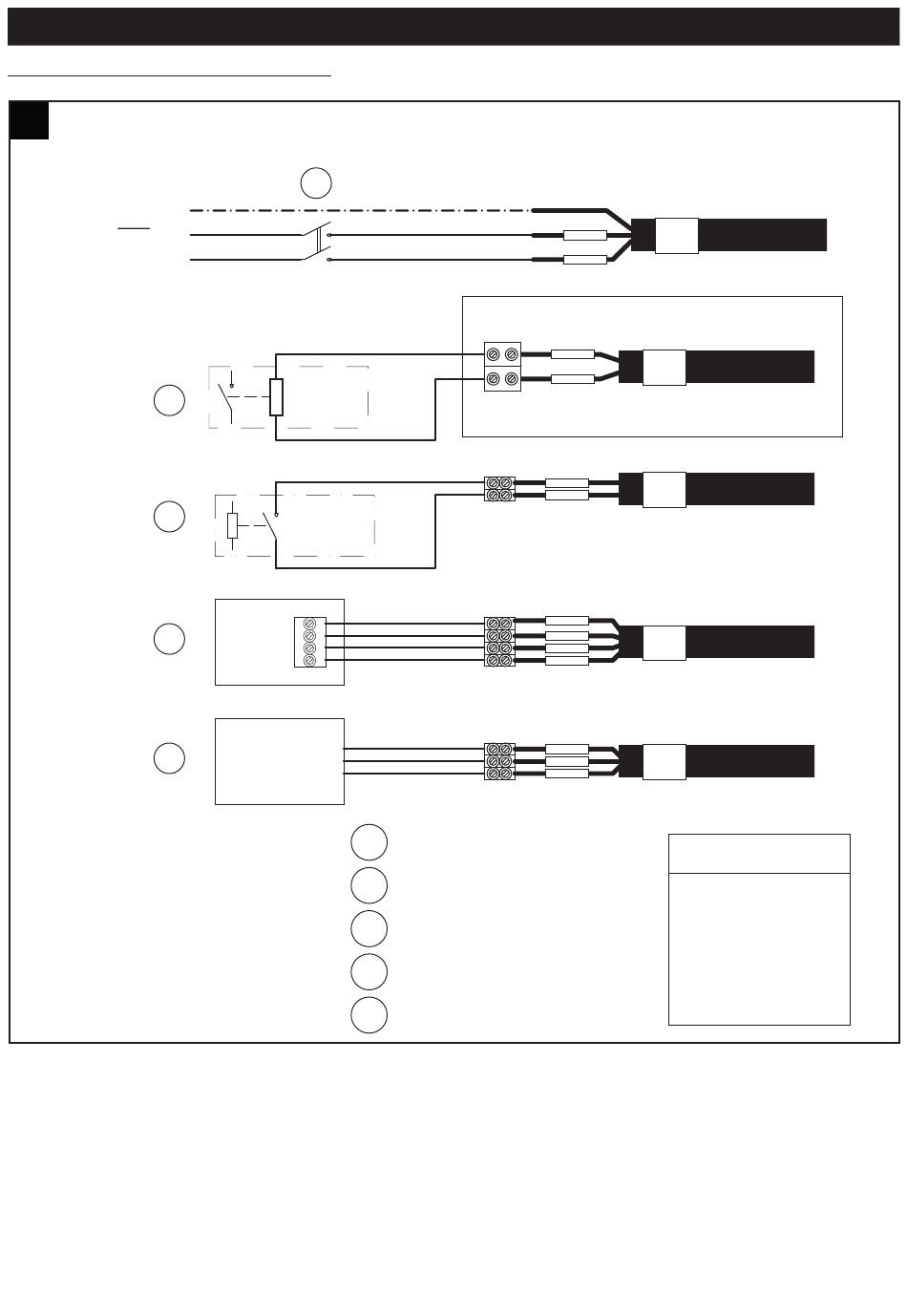

Vort HRI Phantom electrical connections:
7
MAINS
220-240V
~50/60Hz
2
3
4
5
1
PE
L
N
220-240V
~50/60Hz
VCC
A
B
GND
BU
BN
1 Mains 2 poles switch
Preheater
2
(remote 220-240Vac ~50/60Hz relay coil )
3 Dry contact (remote switch / relay )
4 Remote HMI
5 Remote Modbus Master Unit
GNYE
BN
L MAINS
BU
N
N
PREH
PREH
BOOST
BOOST
GND
VCC
A
HMI
B
GND
A
B MODBUS
GND
Wires color code
BK=black
BU=blu
BN=brown
GNYE=yellow/green
RD=red
WH=white
YE=yellow
