dormakaba Mounting instructions
4.5.5 Attach the glass door leaf to the side
panel
ATTENTION
Risk of damage to the glass door leaf by
contact with hard materials (e.g. glass,
metal, concrete)
The contact may cause conchoidal fractures,
damage the edges and/or break the glass of
the glass door leaf.
Damaged glass door leaves should not be
installed – risk of injury. Protect glass edges
with spacers!
1. Horizontally insert the double-action hinges in the
glass cutouts in the side panel.
2. Slightly tighten the double-action hinges' counter-
plates with the clamping screws.
2.

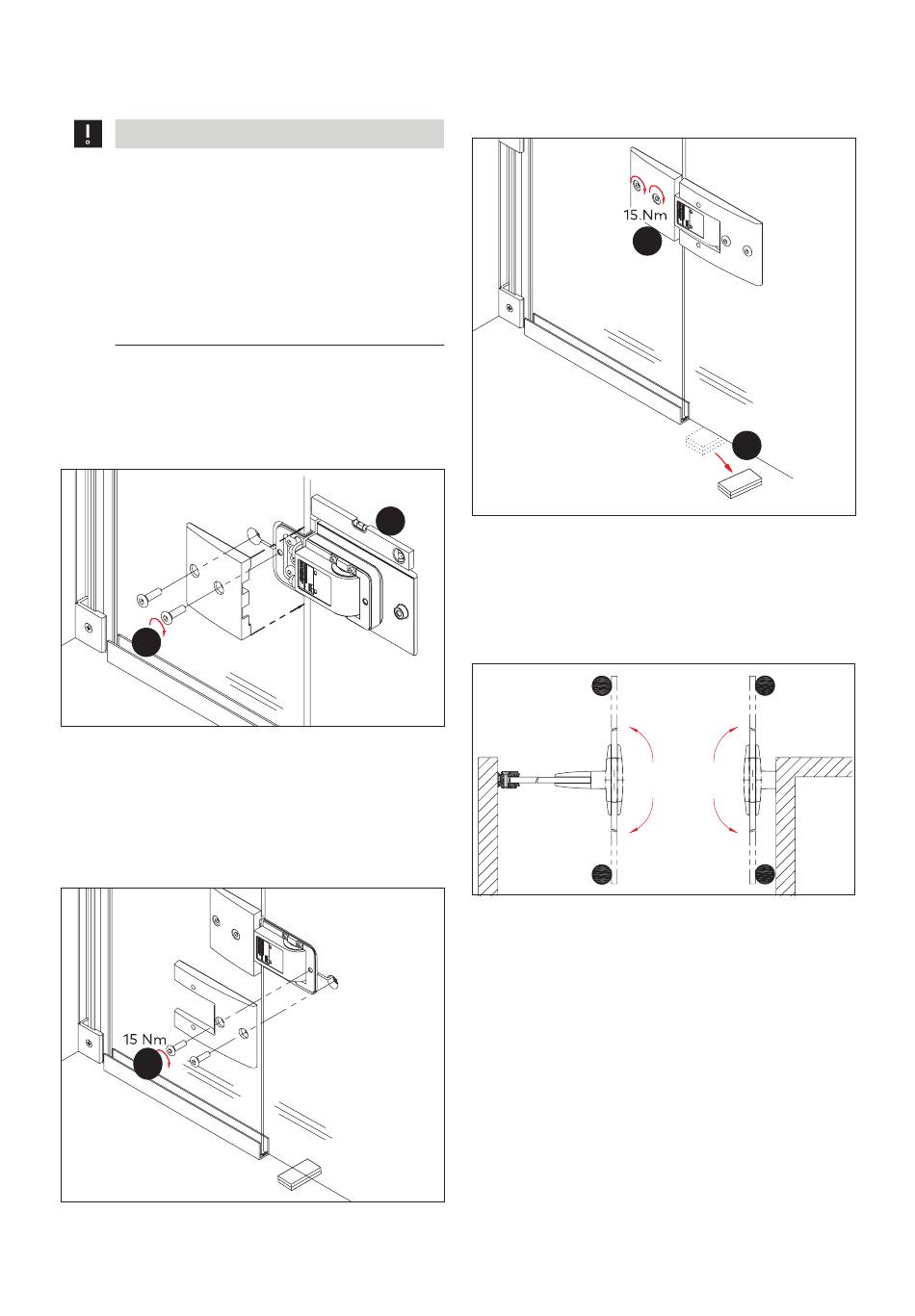

Fig. 30 Mounting the double-action hinge to the side panel
3. Place the glass door leaf in the installation
position on
wooden blocks or similar objects and align
vertically. Note the gaps (Fig. 11).
4. Screw on the counter-plates. The tightening
torque should be 15 Nm!
4.
Fig. 31 Installing the glass door leaf onto the double-action
hinge
22 TENSOR
5. Tighten the clamping screws of the side panel.
The tightening torque should be 15 Nm!
6. Remove all assembly blocks!
1.
Fig. 32 Installing the glass door leaf
7. Continue with adjusting the "0" position (see
Chapter 5).
4.6

Prevent the door opening too far

The double-action door may be opened to max. 90°.
Prevent door opening too far, e.g. by using a doorstop.
Fig. 33 Doorstop to prevent excessive opening
WN 059361 45532
Installation
5.
6.
2020-09
