dormakaba Mounting instructions
4

Installation

4.1

Tools for installation

• Drilling machine
• Spirit level
• Allen wrench, wrench size SW 3, 4, 5
• Torque wrench (item no. 07.624)
4.2

Determine the thickness of the gasket

The following applies for all product variants:
Depending on the glass thickness, the suitable
gaskets must be selected and used according to the
following table.
Glass thickness
Gaskets
4.3 Wall mounting with surface-mounted
mounting plate
4.3.1

Check the glass door leaf

CAUTION
Risk of injury from broken glass Cutting/
cutting off the fingers on sharp parts of
broken glass.
Wear protective gloves.
1.
Check the glass door leaf for damage,
e.g. glass for conchoidal fractures and/or
damaged edges. Do not install damaged glass
door leaves.
2. Check dimensions of glass preparation (Fig. 7).
4.3.2

Prepare the double-action hinge

1.
Unscrew the counter-plate (Fig. 14/1).
2. Select the appropriate gaskets (Fig. 14/2)
according to the glass thickness (see Chapter 4.2).
3. Peel off the protective film of the adhesive tape
on the base- and counter-plate (Fig. 14/3).
1
1.

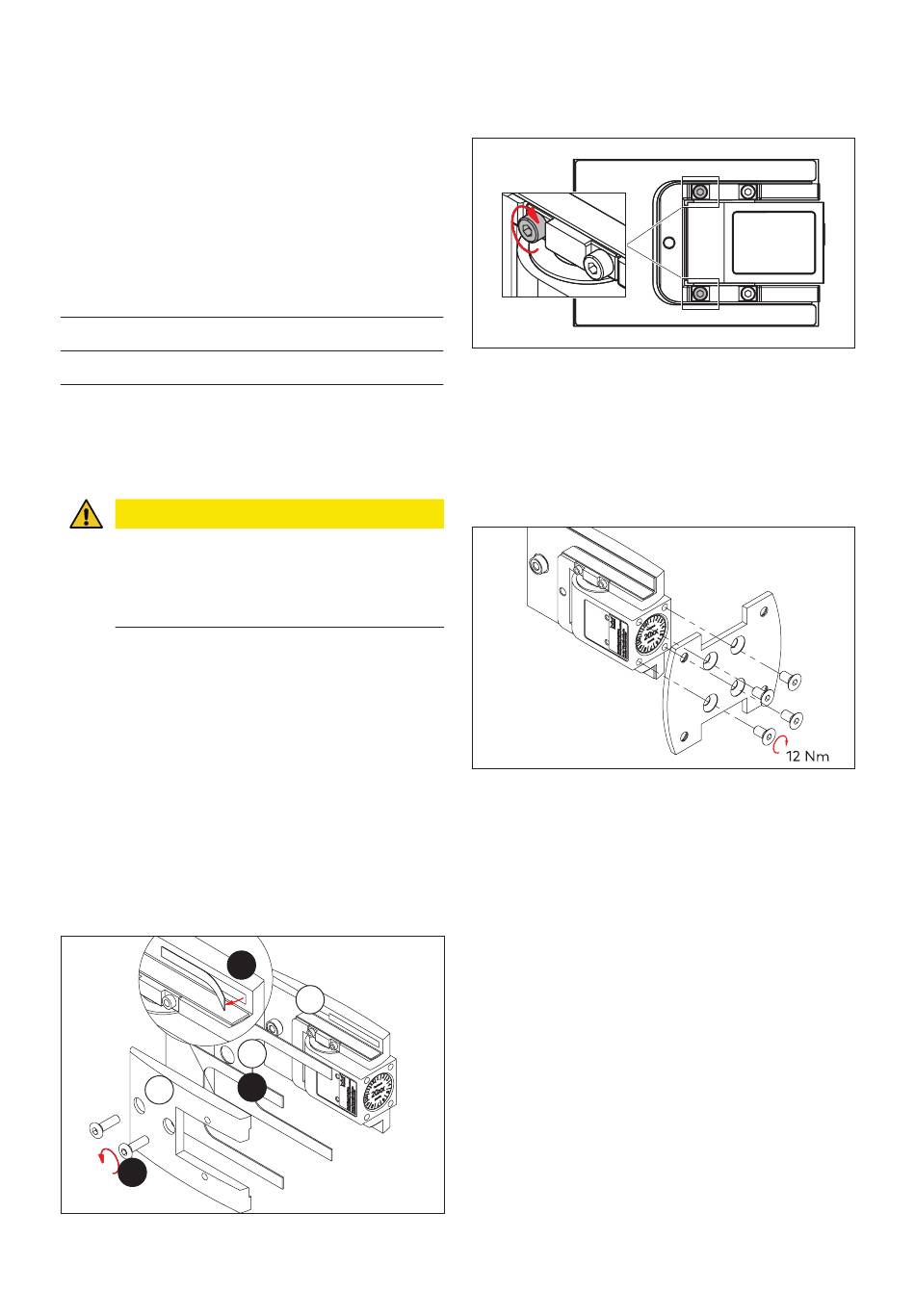

Fig. 14 Preparing the double-action hinge
TENSOR
12 mm 10 mm 8 mm
1 mm 2 mm 3 mm
3.
3
2
2.
WN 059361 45532
4. Fix the gasket onto the base- and counter-plate.
5. Tighten the marked screws. The tightening torque
should be 5 Nm.
5 Nm
Fig. 15 Tighten the marked screws with torque.
4.3.3

Fix mounting plates

1. Attach the mounting plate with 4 countersunk
screws (M6 x 12) to the TENSOR double-action
hinge (Fig. 16).
2. Check that the screws are tight. The tightening
torque should be 12 Nm.
Fig. 16 Attaching the mounting plates to the double-action
hinge
4.3.4

Clean glass surfaces

Clean glass surfaces around the clamping plates. Use
commercial glass cleaner. Do not use thinners!
Installation
2020-09 17
