dormakaba Mounting instructions
4.4.4

Fix mounting plates

1. Place the countersunk screws M8 x 16 into the
prepared counterbore of the mounting plate.
2. Fasten the mounting plate with four countersunk
screws
(M6 x 12) to the TENSOR double-action hinge. The
tightening torque should be 12 Nm.

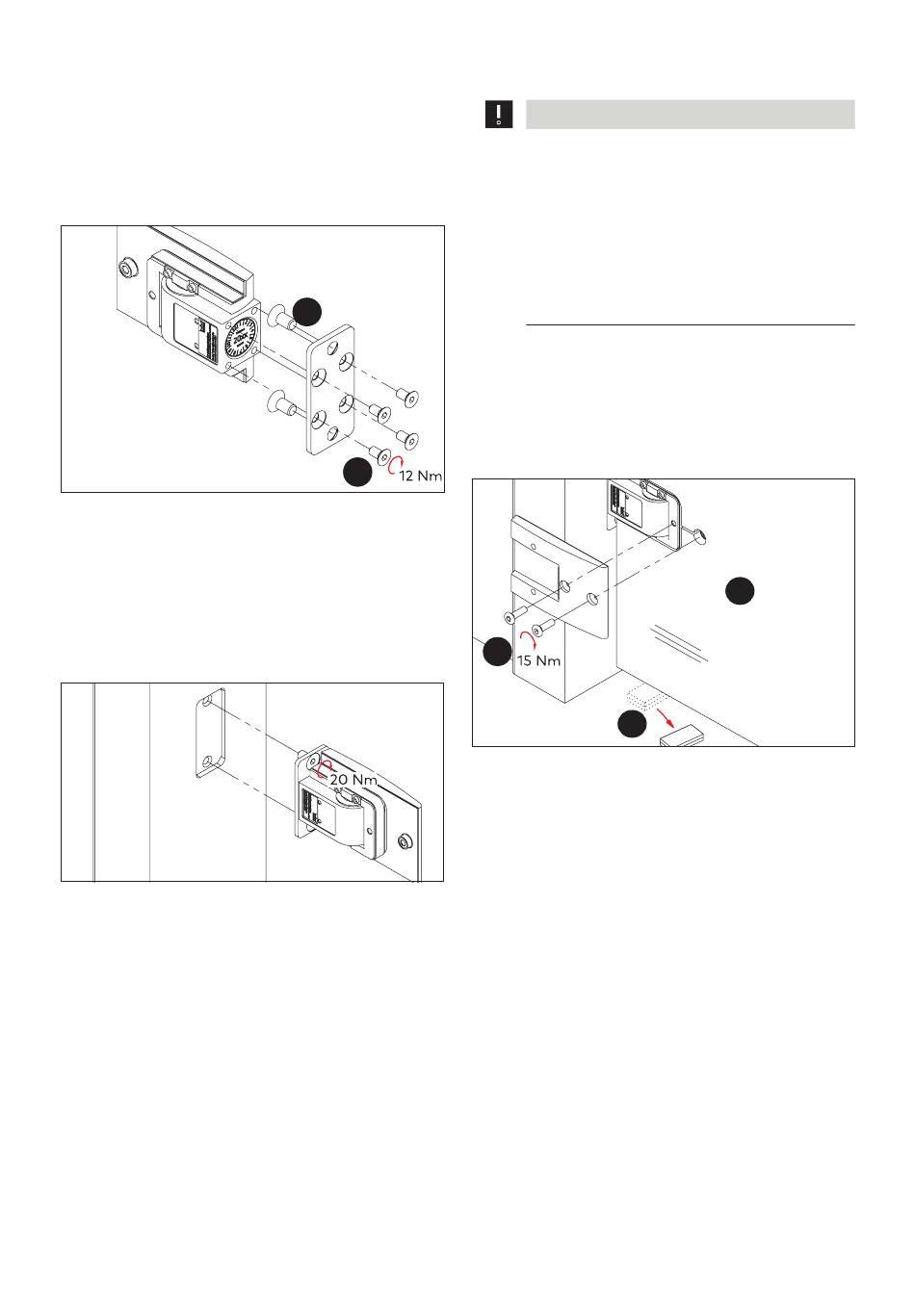

Fig. 24 Attaching the mounting plates to the double-action
hinge
4.4.5 Attach the double-action door hinge
to the door frame
1. Attach double-action hinges with countersunk
screws
M8 x 16 to the prepared door frame.
2. The tightening torque should be 20 Nm.
Fig. 25 Installing double-action hinges into the door frame
4.4.6

Clean glass surfaces

Clean glass surfaces around the clamping plates. Use
commercial glass cleaner. Do not use thinners!
20 TENSOR
4.4.7
1.
1.
2. Install counter-plates. The tightening torque
3. Remove all assembly blocks.
2.
Fig. 26
4. Continue with adjusting the "0" position (see
WN 059361 45532

Position and screw in glass door leaf

ATTENTION
Risk of damage to the glass door leaf by
contact with hard materials (e.g. glass,
metal, concrete)
The contact may cause conchoidal fractures,
damage the edges and/or break the glass of
the glass door leaf.
Damaged glass door leaves should not be
installed – risk of injury. Protect glass edges
with spacers!
Place the glass door leaf in the installation
position on wooden blocks or similar objects.
should be 15 Nm.
2.
3.
Installing the glass door leaf
Chapter 5).
Installation
1.
