dormakaba Mounting instructions
• The fixing material must be suitable for the
substructure/wall and its dimensions must fit the
door leaf weight. The fixing material is not included
in delivery.
• Refer to the technical instructions for the mounting
material.
2.3

General safety instructions

• Installation must be carried out by two people.
• Protective clothing must be worn.
• Place glass door leaves on wood for storage and
ensure they cannot fall.
• Secure the installation site.
2.4

Identification label

No further warranty is provided if the identification
label has been damaged or removed.

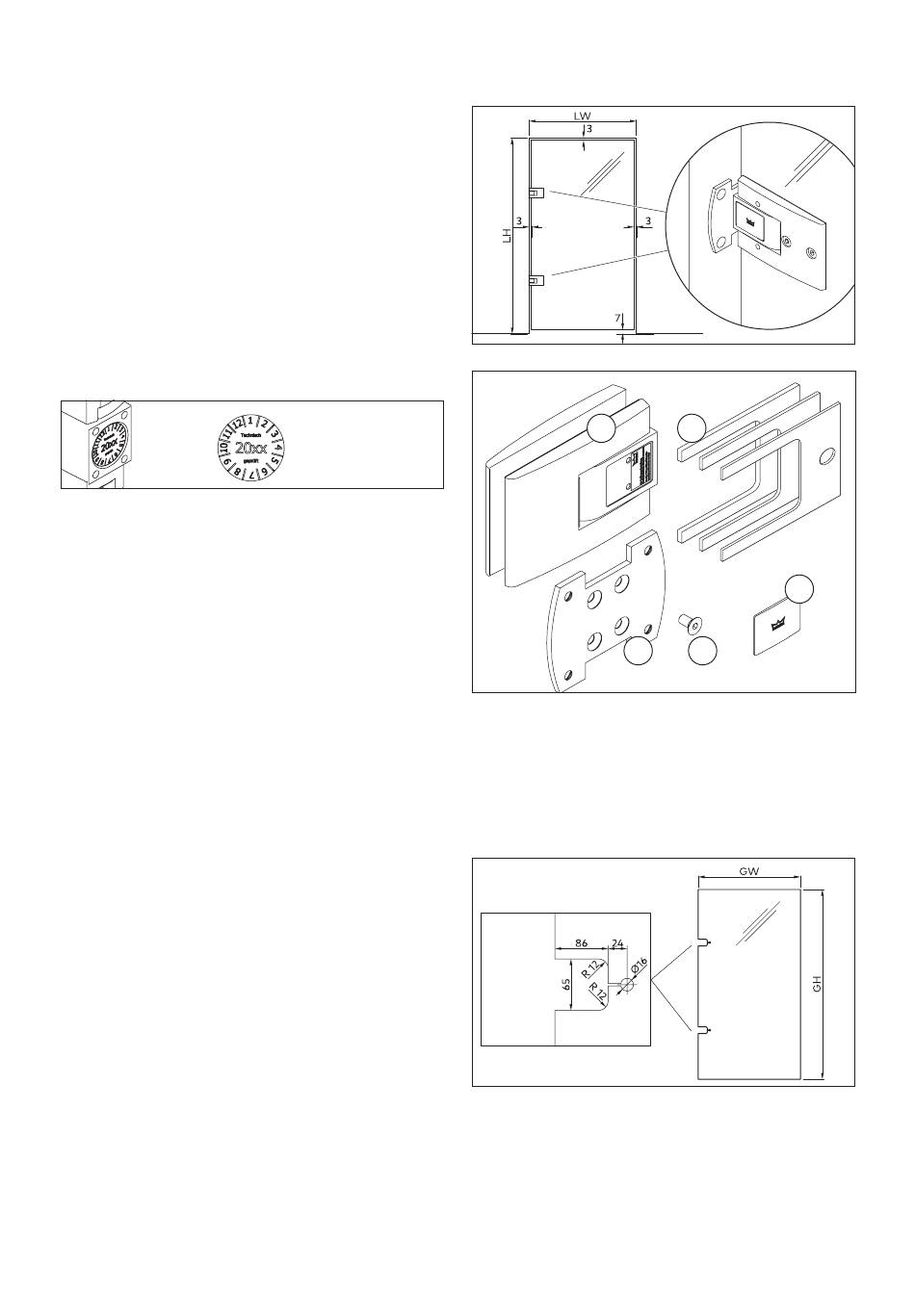

Fig. 4 Identification label on the TENSOR double-action hinge
3

Product description

3.1

Function principle

TENSOR double-action hinges secure the glass door
leaf between the base- and the counter-plate. The
varying glass thickness is compensated by gaskets.
The "0" position is the prerequisite for the self-closing
function. The self-closing function's spring force is not
yet active on delivery.
3.2

Product variants

There are 3 product variants for different installation
situations.
TENSOR
3.2.1
Fig. 5
Fig. 6
(1)
(2)
(3)
(4)
(5)
Fig. 7
Glass height GH = LH - 10 mm
Glass width GW = LW - 6 mm
WN 059361 45532
Wall mounting with surface-mounted
mounting plate
Gaps
1 2
5
Scope of delivery
2 x double-action hinge
Gaskets 4 x each with 3 different thicknesses:
1 mm, 2 mm, 3 mm
12 x cover cap in 3 different
colors
8 x countersunk screw M6 x 12
2 x mounting plate
Glass preparations
Product description
3
4
2020-09 15
