dormakaba Mounting instructions
3.2.2 Frame with embedded mounting
plate

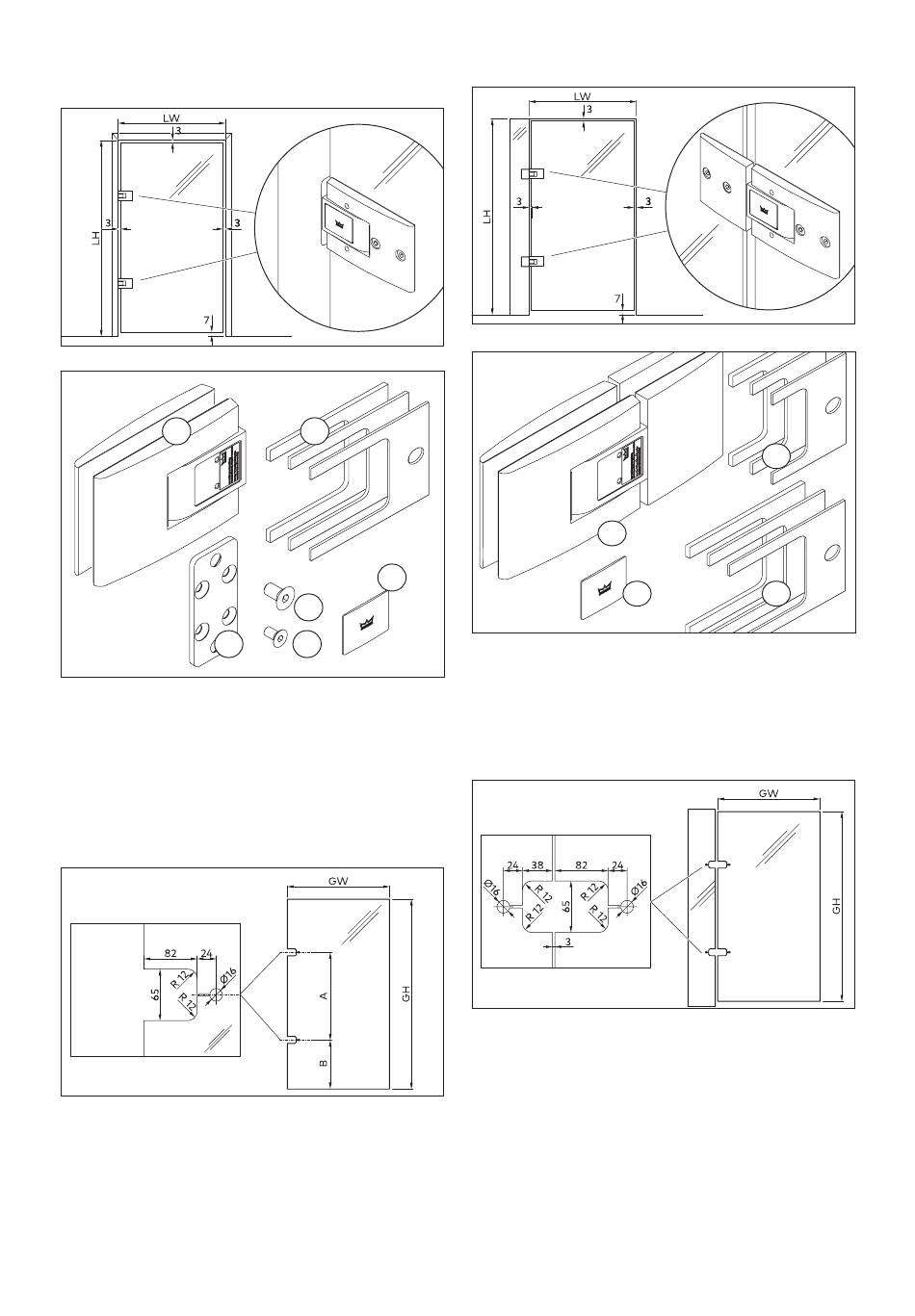

Fig. 8 Gaps
1
6
Fig. 9 Scope of delivery
(1) 2 x double-action hinge
(2) Gaskets 4 x each with 3 different thicknesses:
1 mm, 2 mm, 3 mm
(3) 12 x cover cap in 3 different
colors
(4) 4 x countersunk screw M8 x 16
(5) 8 x countersunk screw M6 x 12
(6) 2 x mounting plate
Fig. 10 Glass preparations
Glass height GH = LH - 10 mm
Glass width GW = LW - 6 mm
16 TENSOR
3.2.3
Fig. 11
2
3
4
Fig. 12
5
(1)
(2)
(3)
(4)
Fig. 13
Glass height GH = LH - 10 mm
Glass width GW = LW - 6 mm
WN 059361 45532

Glass to glass mounting

Gaps for glass to glass mounting
1
4
Scope of delivery
2 x double-action hinge
Side panel gaskets each 4 x in 3 different
thicknesses: 1 mm, 2 mm, 3 mm
Glass door leaf gaskets each 4 x with 3 various
thicknesses: 1 mm, 2 mm, 3 mm
12 x cover cap in 3 different colors
Glass preparations
Product description
2
3
2020-09
