Installing the OPT/i TPS SpeedNet connector in the
OPT/i WF twin-head ROB.EXT.
Preparing to in-
stall
Installing the
OPT/i TPS Speed-
Net connector in
the OPT/i WF
twin-head
ROB.EXT.
16
All manuals and user guides at all-guides.com
7 x TX25
1
2
3
3

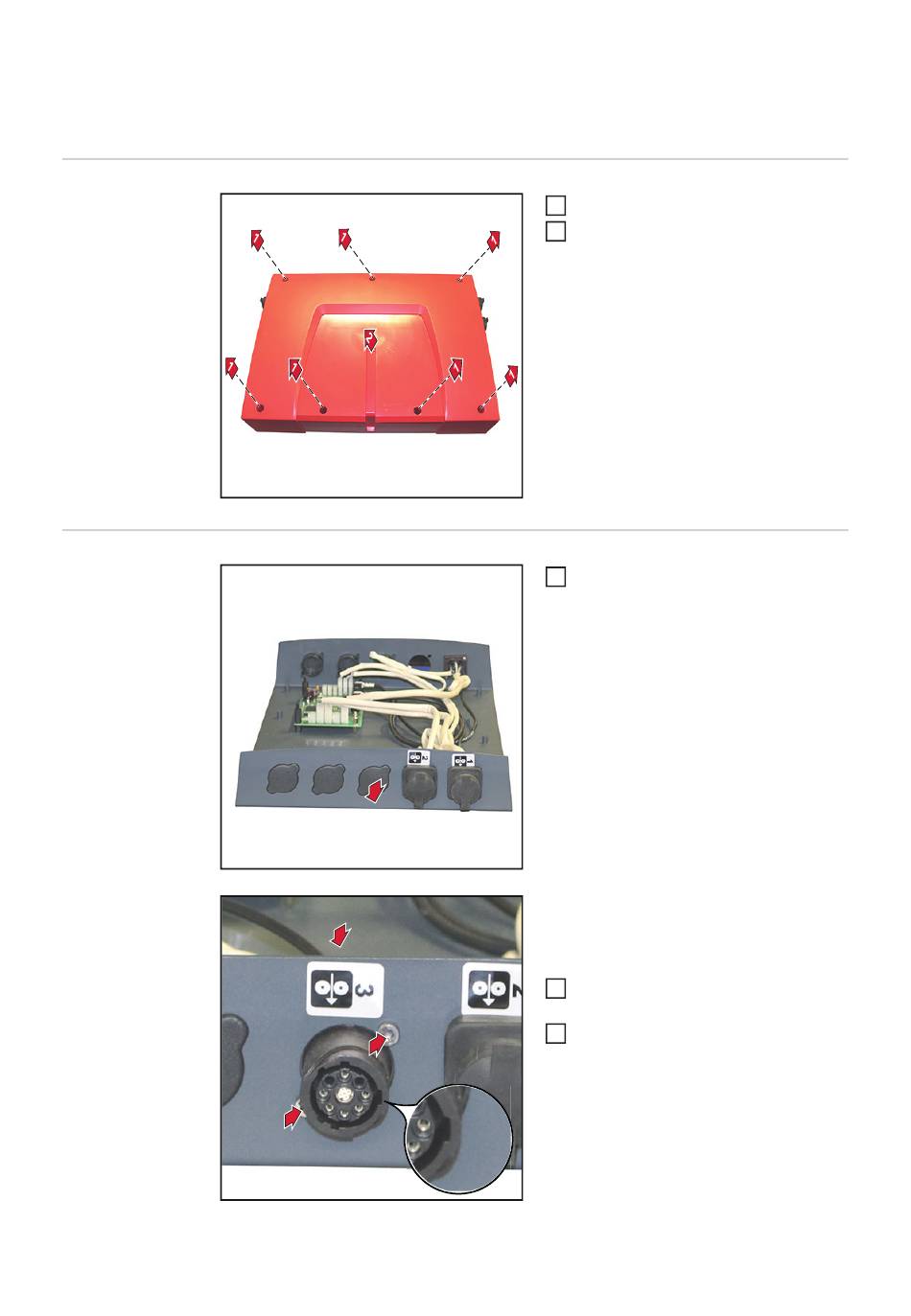

Remove the seven TX25 screws
1
Remove the cover
2
Remove the blanking cover
1
IMPORTANT! When inserting the socket,
ensure that the large rectangular recess is
pointing towards connection socket 2.
Insert the cable harness with socket
2
from the inside
Secure the socket with two TX20
3
screws
Tightening torque = 1.5 Nm
