Scope of delivery

Make sure to verify upon receipt of the delivery that all parts belonging to the scope of delivery
are present.
The standard delivery includes:
• IR radiator (complete module) with pre-mounted cable 3 m 3 x 1.5 mm²
• Installation and operation instruction

Technical data

Voltage (power supply)
Nominal power
Weight excl. packaging
Dimensions H x W x D
Heat radiation range:
Dimmer:
Storage temperature
Ambient temperature
Intended use:
Suitable sauna control units

Accessories (optional)

Top cover by corner mounting (pair)
IR plug adaptor with cable 1,5 m
IR plug adaptor with cable 25 cm
IR connection cable 3 m

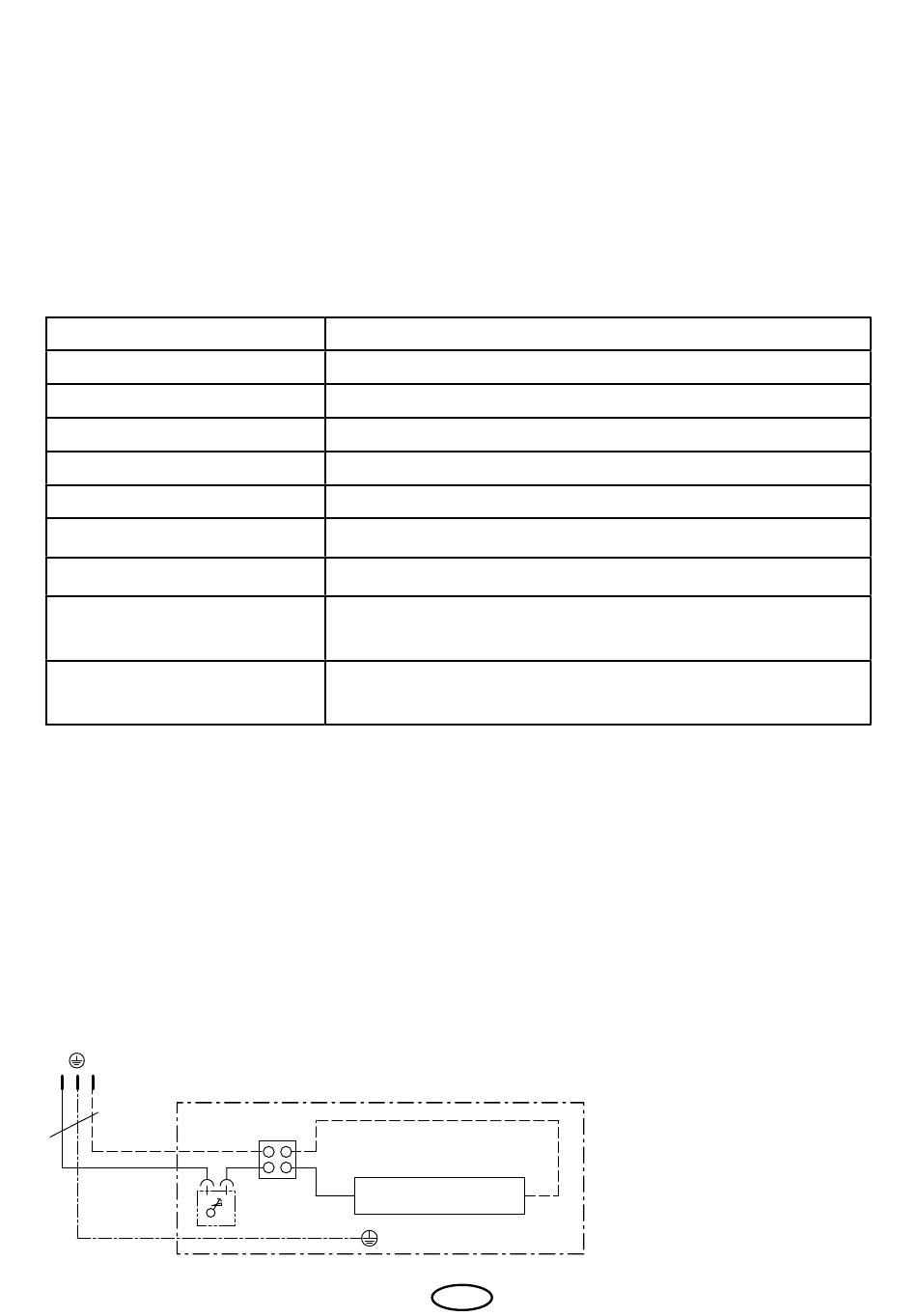

Inner wiring scheme

230V/50Hz
L
N
3 x 1,5²
1000 W max. switching capacity, firmly installed in the housing
EOS Econ I1, InfraTec Premium, SBM-LSG-IR, SBM-IR Modul
IR-Emitter
S1
Dimmer
230V N ~ 50 Hz
350 W | 500 W | 750 W
ca. 2,5 kg
835 x 185 x 65 mm
approx 0,8 - 10 µm
-20 °C to +50 °C
up to max. 70°C
IR radiator for installation in IR warming cabins. To
be used with a suitable control system..
EOS EmoTec IR, InfaStyle, InfraStyle „i", InfraTec Classic,
94.4566
94.7811
94.7812
94.7813
