Frigo DC
1

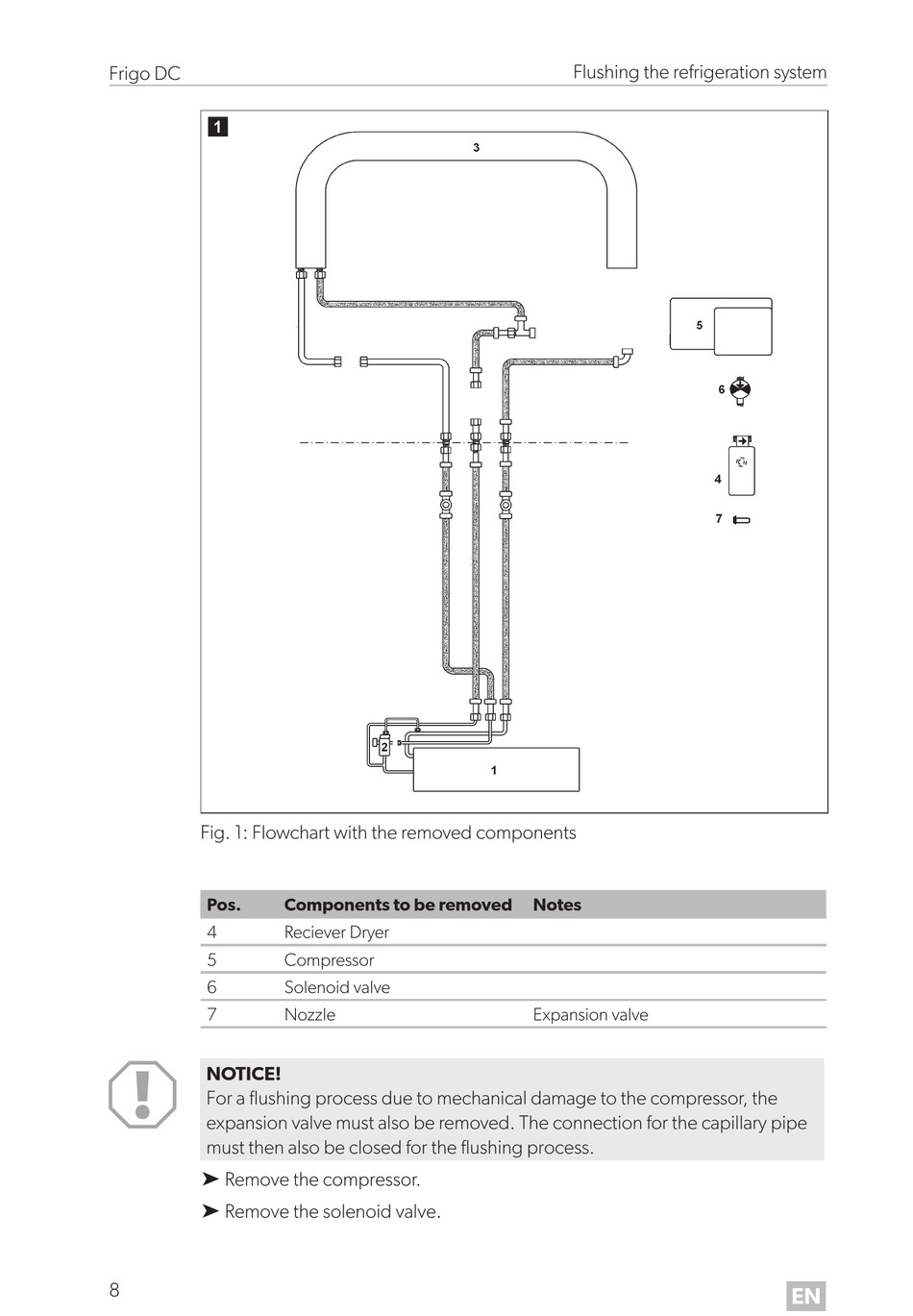

Fig. 1: Flowchart with the removed components
Pos.
4
5
6
7
A
NOTICE!
For a flushing process due to mechanical damage to the compressor, the
expansion valve must also be removed. The connection for the capillary pipe
must then also be closed for the flushing process.
➤ Remove the compressor.
➤ Remove the solenoid valve.
8
Components to be removed
Reciever Dryer
Compressor
Solenoid valve
Nozzle
Flushing the refrigeration system
Notes
Expansion valve
EN
