9.1

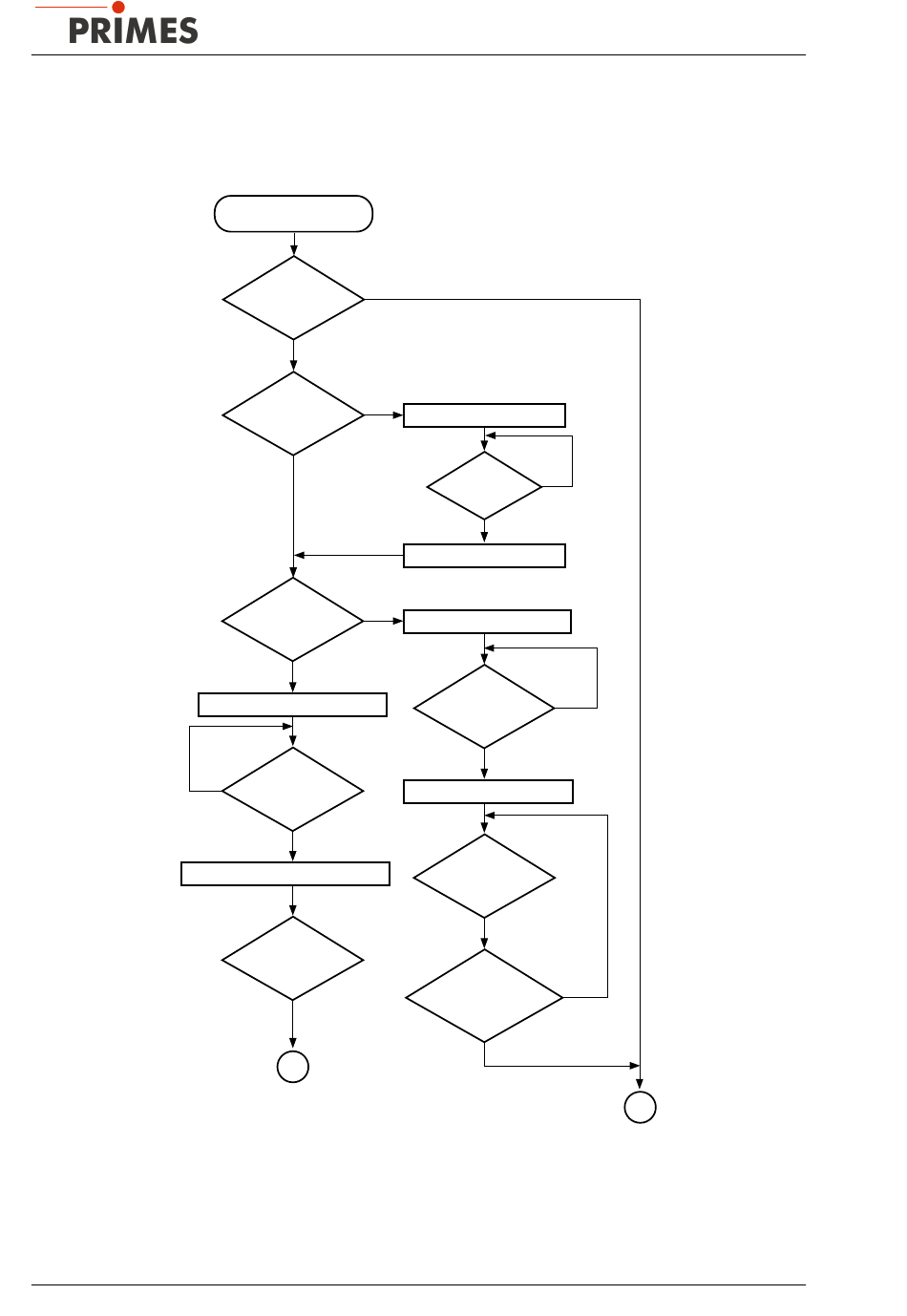

Allgemeines Ablaufdiagramm einer PMM-Messung
"Start measurement" = 0 zurücksetzen
42
Start PMM-Messung
Übertemperaturflag?
PMM idle?
Shutter offen = 1?
"Start measurement" = 1 setzen
Start Acknowledge = 1?
PMM ready = 1?
A
PowerMeasuringModule PMM
Command do_reset = 1
PMM idle?
Command do_reset = 0
Command do open shutter = 1
Shutter Acknowledge?
Command do open shutter = 0
Status
Shutter is open = 1?
Status
Shutter error = 1?
B
