the angle of inclination of the roof so it is necessary to adopt
minimum heights (Fig. 2).
• The chimney cap must be a wind-proof type and must be
above the ridge.
• Eventual structures or other obstacles that are higher than
the chimney cap must not be too close to the chimney cap
itself.
• The device should not be installed in the flue shared.

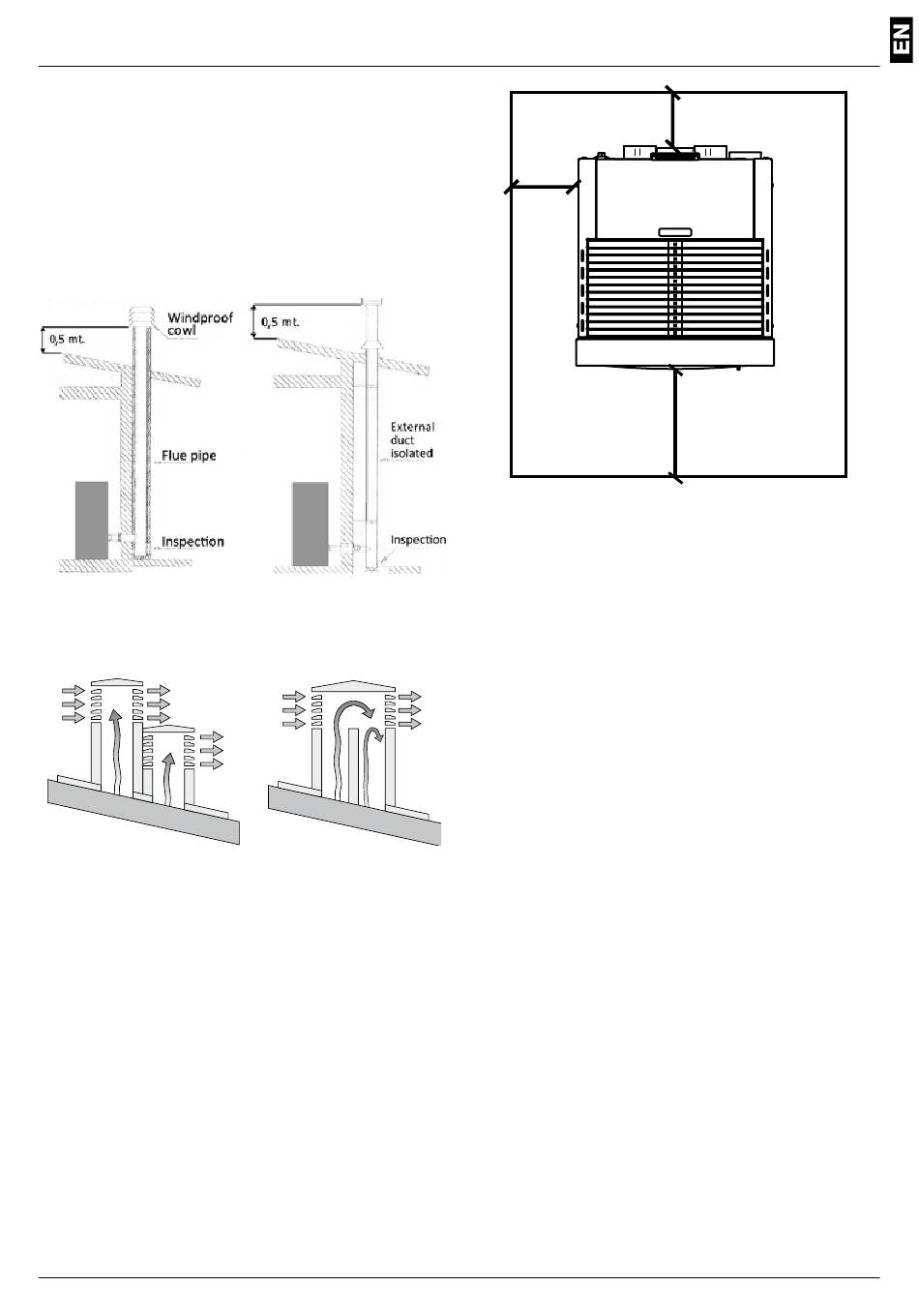

Fig. 2: connection to
the flue pipe.
YES
Fig. 5: Characteristics of chimney
Connection of the canalization pipe (Where present)
The two air outputs placed on the back of the stove only one
tube of 80mm diameter and 8 linear meters of maximum
length.
You have to consider a loss around 1 meter of the linear tract
for each bend of 45° (ex.: maximal distance without bends: 8
meters; maximal distance with one bend 8-1=7 meters).
Distance to objects
It is also recommended to keep the pellets and all flammable
materials at a suitable distance from the stove.
Fig. 3: connection to an external
flue with insulated or double-wall
pipe.
NO
20 cm
40 cm
REMARKS:
- the appliance must be installed by a qualified technician in
possession of the technical and professional requirements
according to the DM37/2008 that, under its responsibility, to
ensure compliance with the rules of good technique.
- you need to keep in mind all laws and national, regional,
provincial and municipal laws of the country in which you
installed the device
- check that the floor is not flammable: if necessary use a
suitable platform
- in the room where the generator must be installed to heat
must not pre-exist or be installed with an extractor hood or
ventilation ducts of the collective type.
Should these devices be located in adjacent rooms
communicating with the installation, and 'prohibited the
simultaneous use of the heat generator, where there is a risk
that one of the two rooms being placed in depression than
the other
- it is not permissible to install in bedrooms or bathrooms.
100 cm
