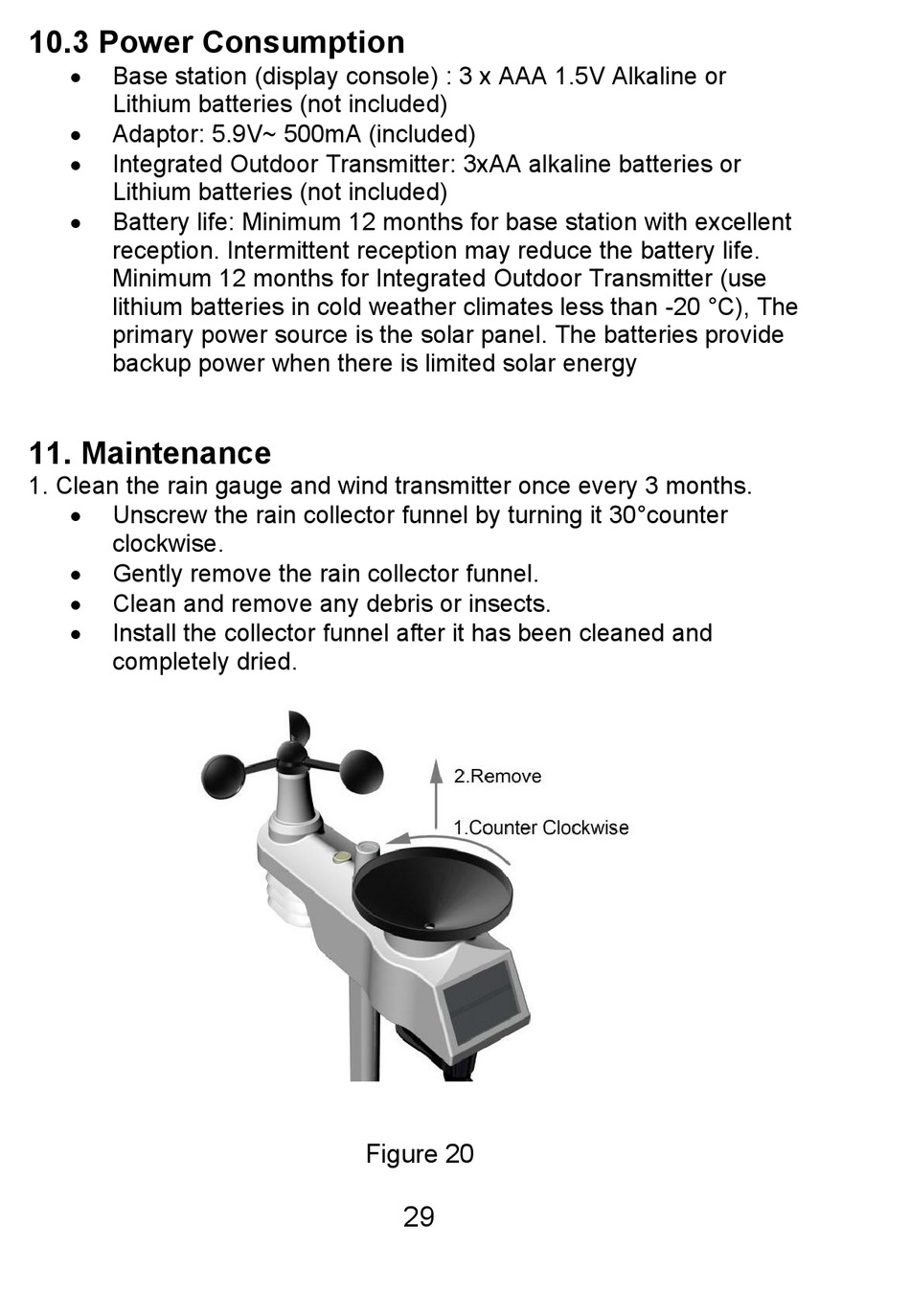

10.3 Power Consumption

 Base station (display console) : 3 x AAA 1.5V Alkaline or
Lithium batteries (not included)
 Adaptor: 5.9V~ 500mA (included)
 Integrated Outdoor Transmitter: 3xAA alkaline batteries or
Lithium batteries (not included)
 Battery life: Minimum 12 months for base station with excellent
reception. Intermittent reception may reduce the battery life.
Minimum 12 months for Integrated Outdoor Transmitter (use
lithium batteries in cold weather climates less than -20 °C), The
primary power source is the solar panel. The batteries provide
backup power when there is limited solar energy
11. Maintenance
1. Clean the rain gauge and wind transmitter once every 3 months.
 Unscrew the rain collector funnel by turning it 30°counter
clockwise.
 Gently remove the rain collector funnel.
 Clean and remove any debris or insects.
 Install the collector funnel after it has been cleaned and
completely dried.
Figure 20
29
