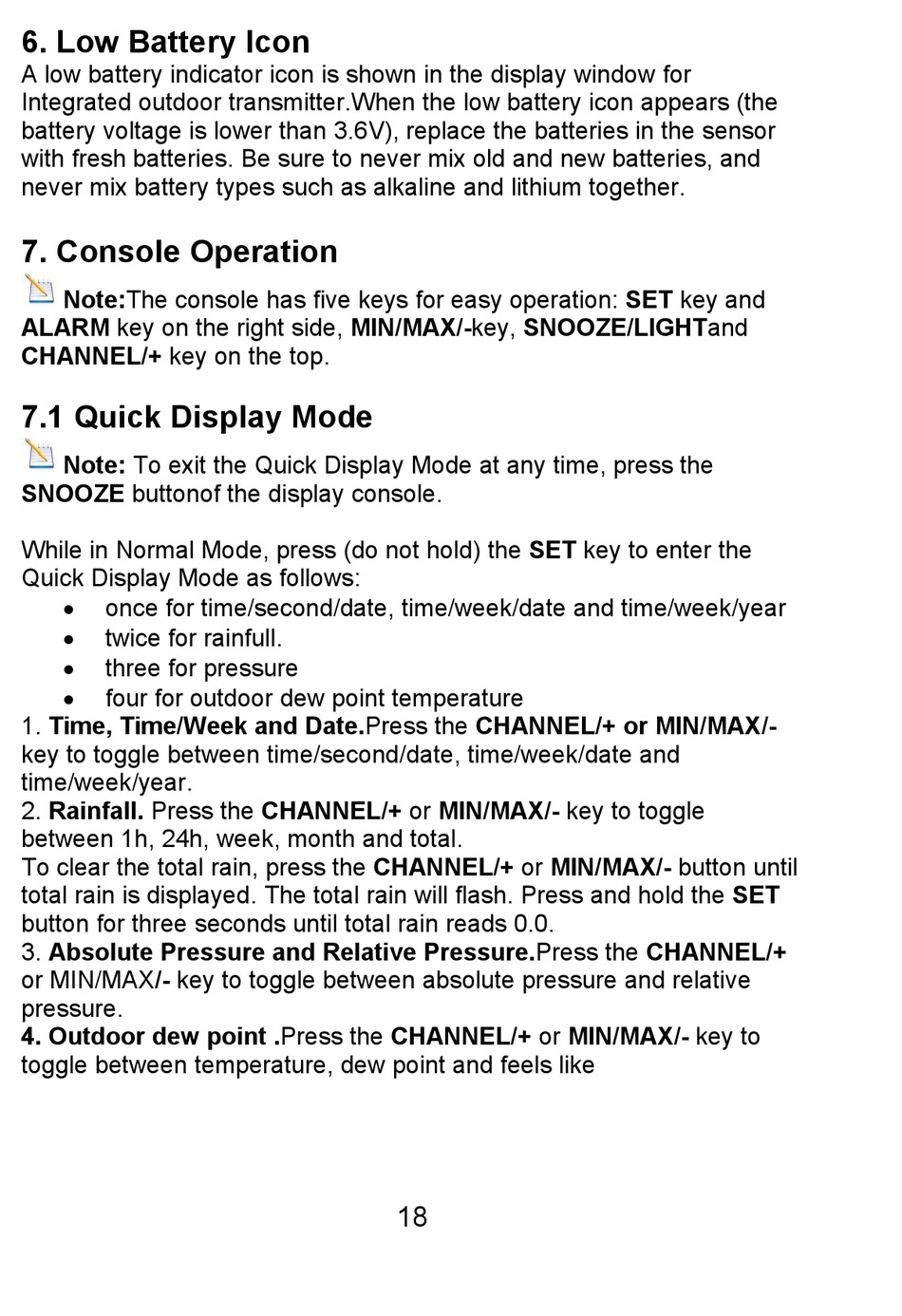

Console Operation - Sainlogic FT0835 Benutzerhandbuch

6. Low Battery Icon
A low battery indicator icon is shown in the display window for
Integrated outdoor transmitter.When the low battery icon appears (the
battery voltage is lower than 3.6V), replace the batteries in the sensor
with fresh batteries. Be sure to never mix old and new batteries, and
never mix battery types such as alkaline and lithium together.

7. Console Operation

Note:The console has five keys for easy operation: SET key and
ALARM key on the right side, MIN/MAX/-key, SNOOZE/LIGHTand
CHANNEL/+ key on the top.
7.1 Quick Display Mode
Note: To exit the Quick Display Mode at any time, press the
SNOOZE buttonof the display console.
While in Normal Mode, press (do not hold) the SET key to enter the
Quick Display Mode as follows:
 once for time/second/date, time/week/date and time/week/year
 twice for rainfull.
 three for pressure
 four for outdoor dew point temperature
1. Time, Time/Week and Date.Press the CHANNEL/+ or MIN/MAX/-
key to toggle between time/second/date, time/week/date and
time/week/year.
2. Rainfall. Press the CHANNEL/+ or MIN/MAX/- key to toggle
between 1h, 24h, week, month and total.
To clear the total rain, press the CHANNEL/+ or MIN/MAX/- button until
total rain is displayed. The total rain will flash. Press and hold the SET
button for three seconds until total rain reads 0.0.
3. Absolute Pressure and Relative Pressure.Press the CHANNEL/+
or MIN/MAX/- key to toggle between absolute pressure and relative
pressure.
4. Outdoor dew point .Press the CHANNEL/+ or MIN/MAX/- key to
toggle between temperature, dew point and feels like
18
