Function and features

• AS-i profile S-7.A.E
• maximum number of modules per master: 31 (62 with AS-i master 2.1)
• AS-Interface version 2.1

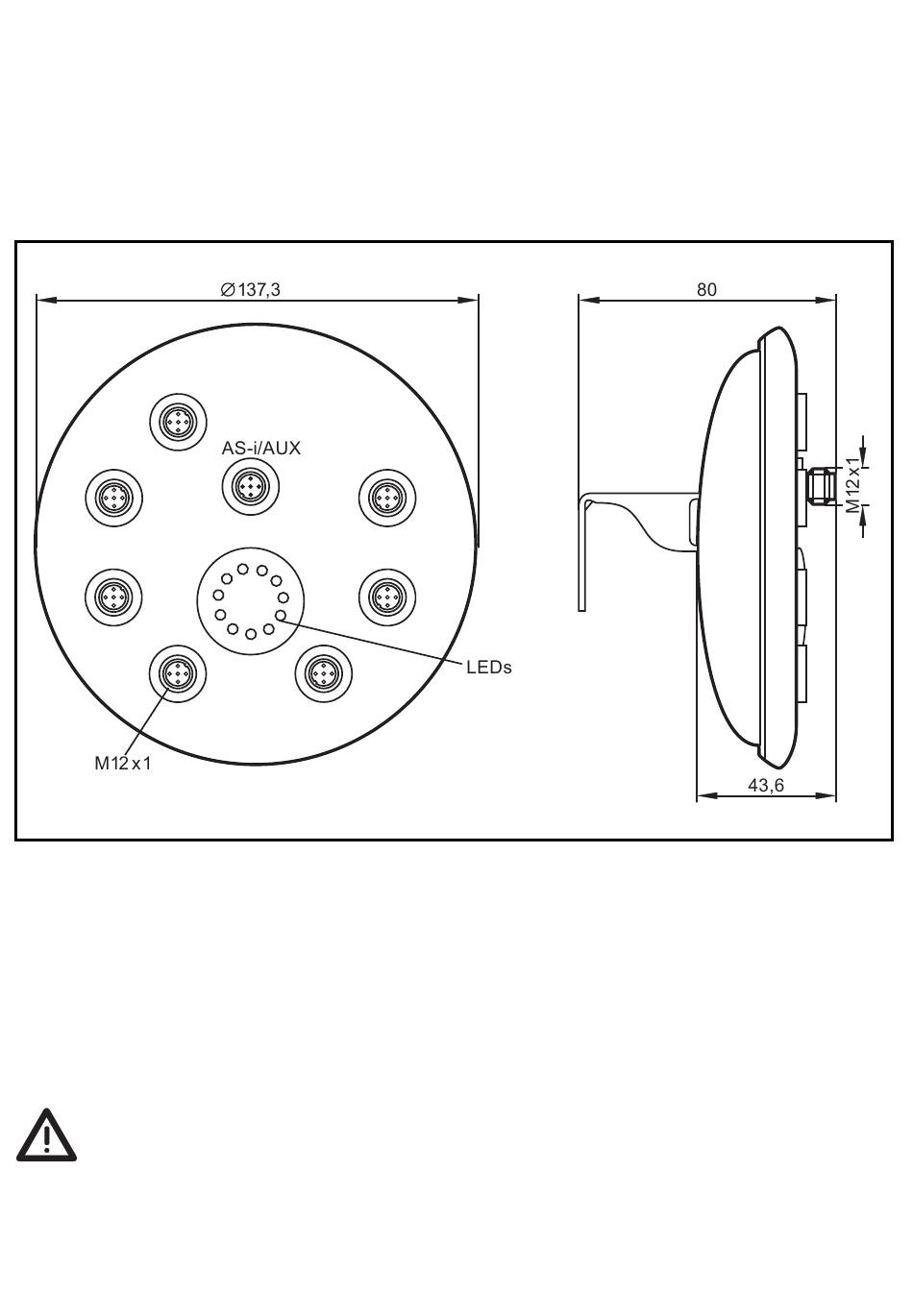

Operating and indicating elements

Electrical connection

Connect the plugs of the sensors / actuators to the M12 sockets. Cover
the unused sockets with the enclosed protective caps (E70297; tigh-
tening torque 0.8Nm) to guarantee the protection rating IP69K.
The round cable connected to AS-i/AUX should not be longer
than 2m.
