Electrical Connection; Electrical Connection For Multiple Units; Maintenance - MYPV AC THOR Montageanleitung

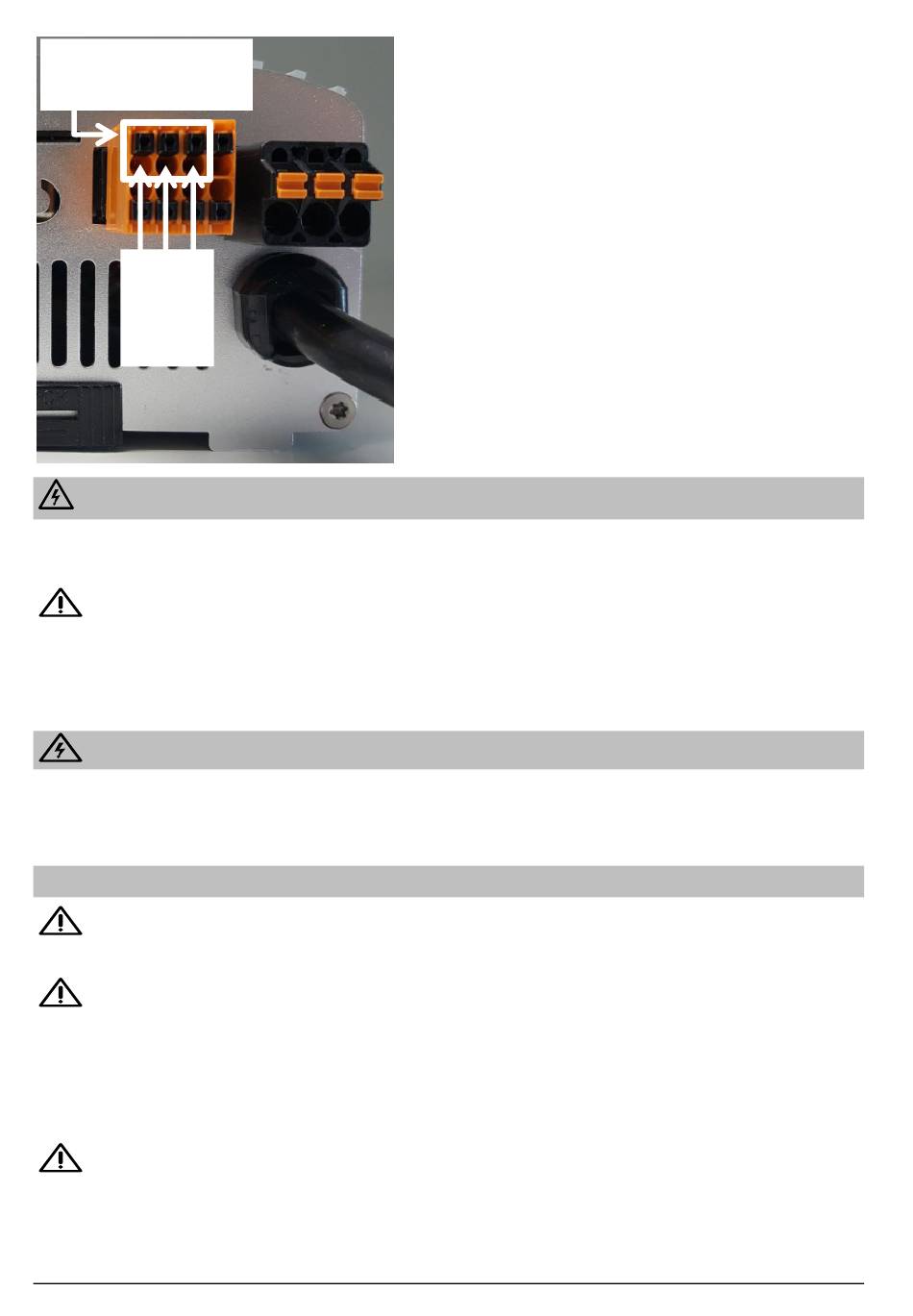

Temperature probe
clamping points
Terminal clamps
Black
Brown
Blue

Electrical connection

Protection of the mains connection for the AC•THOR may not exceed 16 A (tripping
characteristic B or C).
The PE conductor of the socket must be connected!
Pay attention to other loads on the line circuit, this may trip the circuit breaker!
The conductor cross-sections at the mains connection and at the load connections must be at
least 1.5 mm².

Electrical connection for multiple units

All devices should be connected to appropriate AC circuits. Note that each AC•THOR takes up to
3 kW power (with relay output up to 6 kW). It makes sense to divide this between the phases on
the grid.

Maintenance

Do not attempt to open the unit. The device does not contain any parts that may be
repaired by the user.
Never splash water on or in the unit!
When it is unplugged, the surface of the unit can be cleaned either with a damp cloth, using
mild glass cleaner or cleaning tissue for glasses.
In a polluted environment, the air inlets and outlets should be checked regularly for cleanliness.
If necessary, the unit can be cleaned through the air slots with a vacuum cleaner.
The unit cannot work at maximum efficiency if the air supply is inadequate!
If the mains cable of the unit is damaged, it has to be replaced by the manufacturer or its
service agents or a similarly qualified person.
AC•THOR ® Montageanleitung / Assembly Instructions, Version 220216 17
