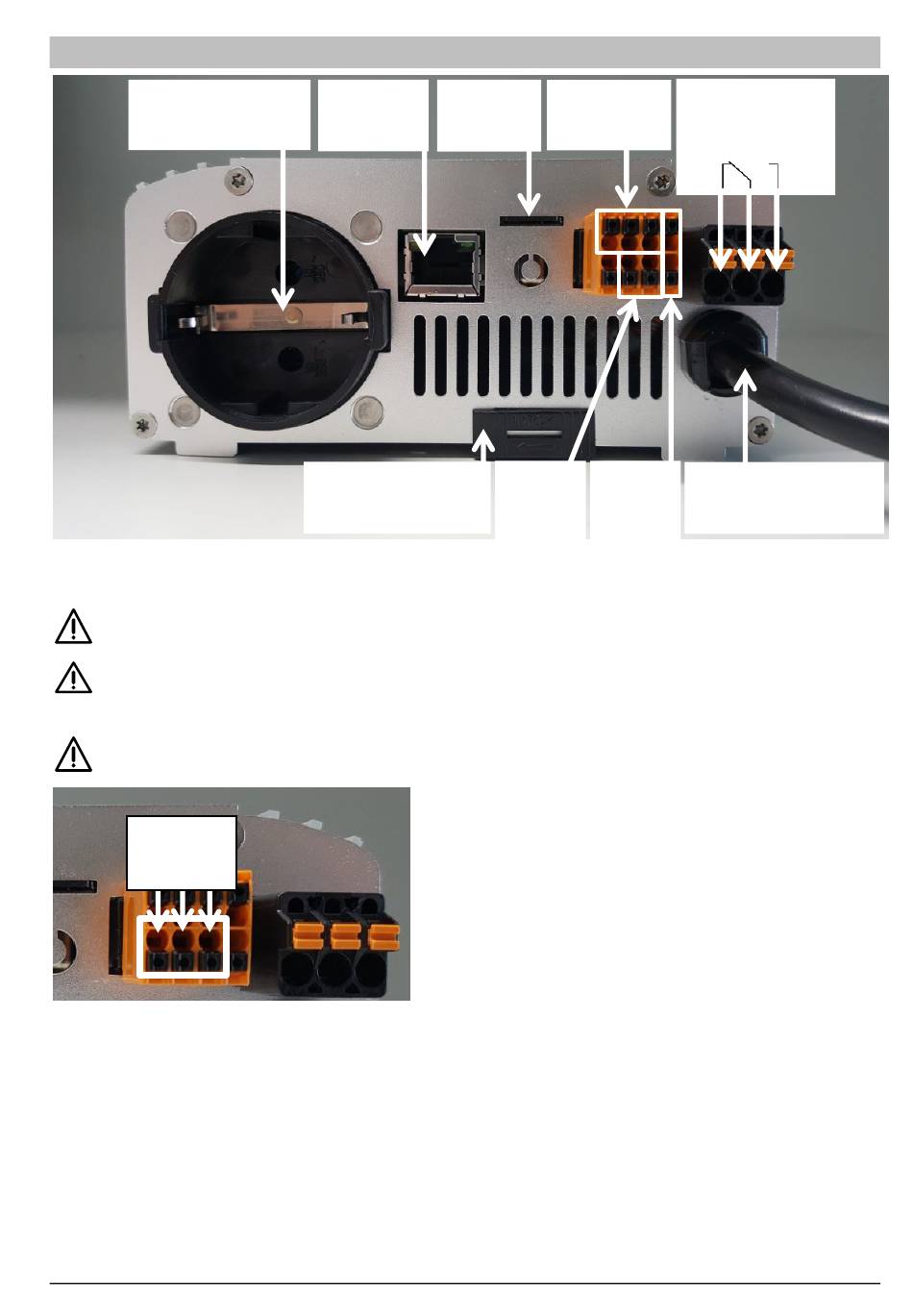

Connections

Load
0 – 3.000 W

Modbus RTU connection for external control

Use shielded twisted pair wire!
RTU bus must be equipped with a 120 Ohm termination resistor!
(Not included in the scope of delivery)
When controlling via Modbus RTU, the operating mode M7 cannot be used!
RS485
A GND B
AC•THOR ® Montageanleitung / Assembly Instructions, Version 220216
Ethernet
RJ45
Ausgang 0-230 VAC 3000 W max. Nur ohmsche Lasten anstecken!
Output 0-230 VAC 3000 W max. Connect only resistive loads!
Wall bracket
lock
SD Card
4 Temp.
Slot Sensors
PWM PWM
Signal Signal
Out IN
Relay
16A
NC W NO
230 VAC, 15 A max
47-53 Hz
Single-phase
mains connection
