Assembly

A brief video (German) to explain assembly will also be found online:
https://www.youtube.com/watch?v=WFHbayf5VDQ

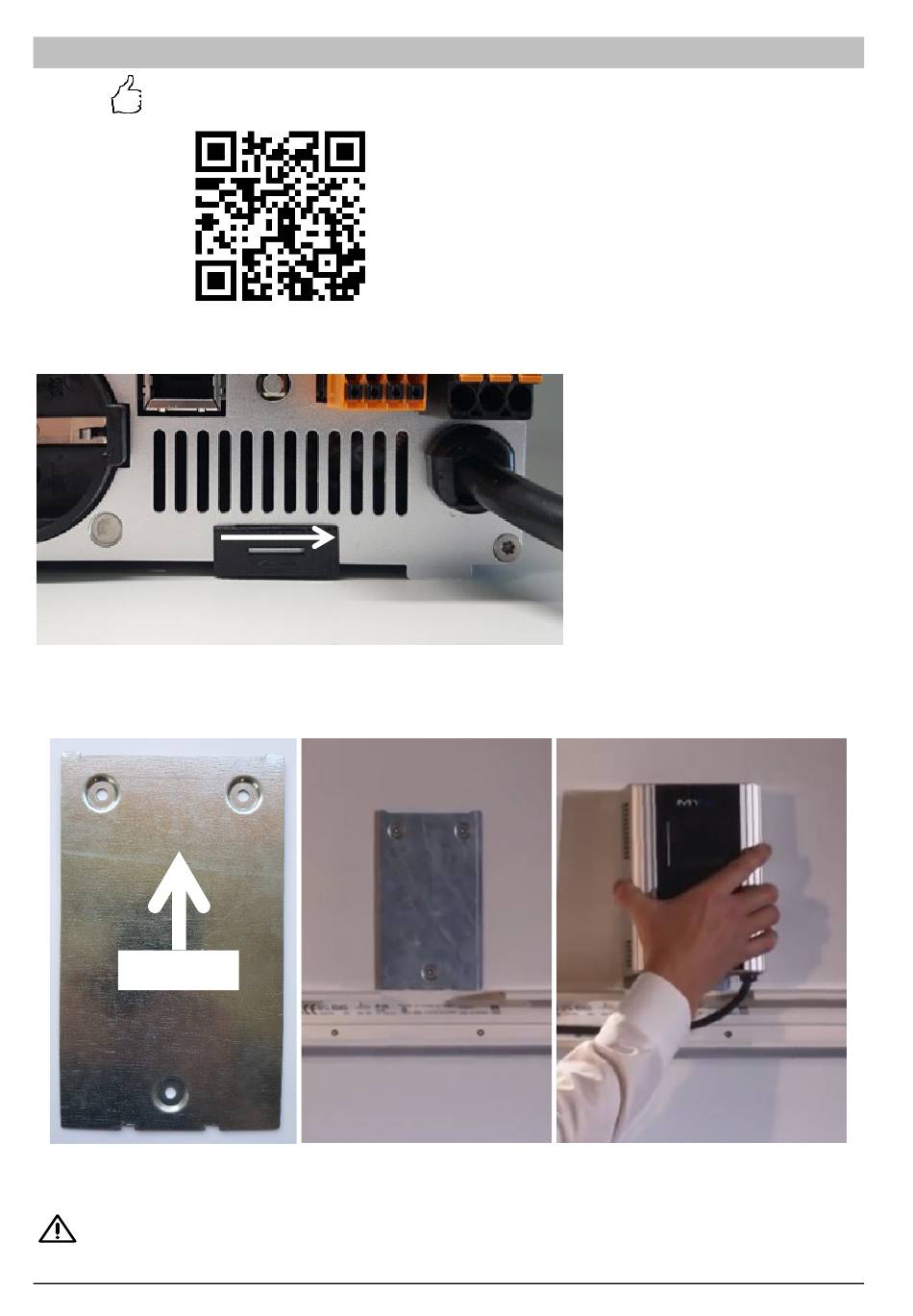

Remove the wall bracket from the rear of the AC•THOR unit. To do this, slide the lock
underneath to the right.
Then fix the wall bracket to the wall with three screws. Three screws and three wall-plugs are
supplied. If the screws supplied are not suitable for the substrate, suitable screw must be
obtained.
TOP
To fix it to the wall bracket, the AC•THOR is suspended in the wall bracket by the two long slots
on top and then fixed in place by locking it underneath (slide to the left).
Check the AC•THOR is securely fixed!
