Installation
Der Saunaofen ist für eine Anschluss-Spannung
von 400 V 3N AC über Saunasteuergerät vorge-
sehen.

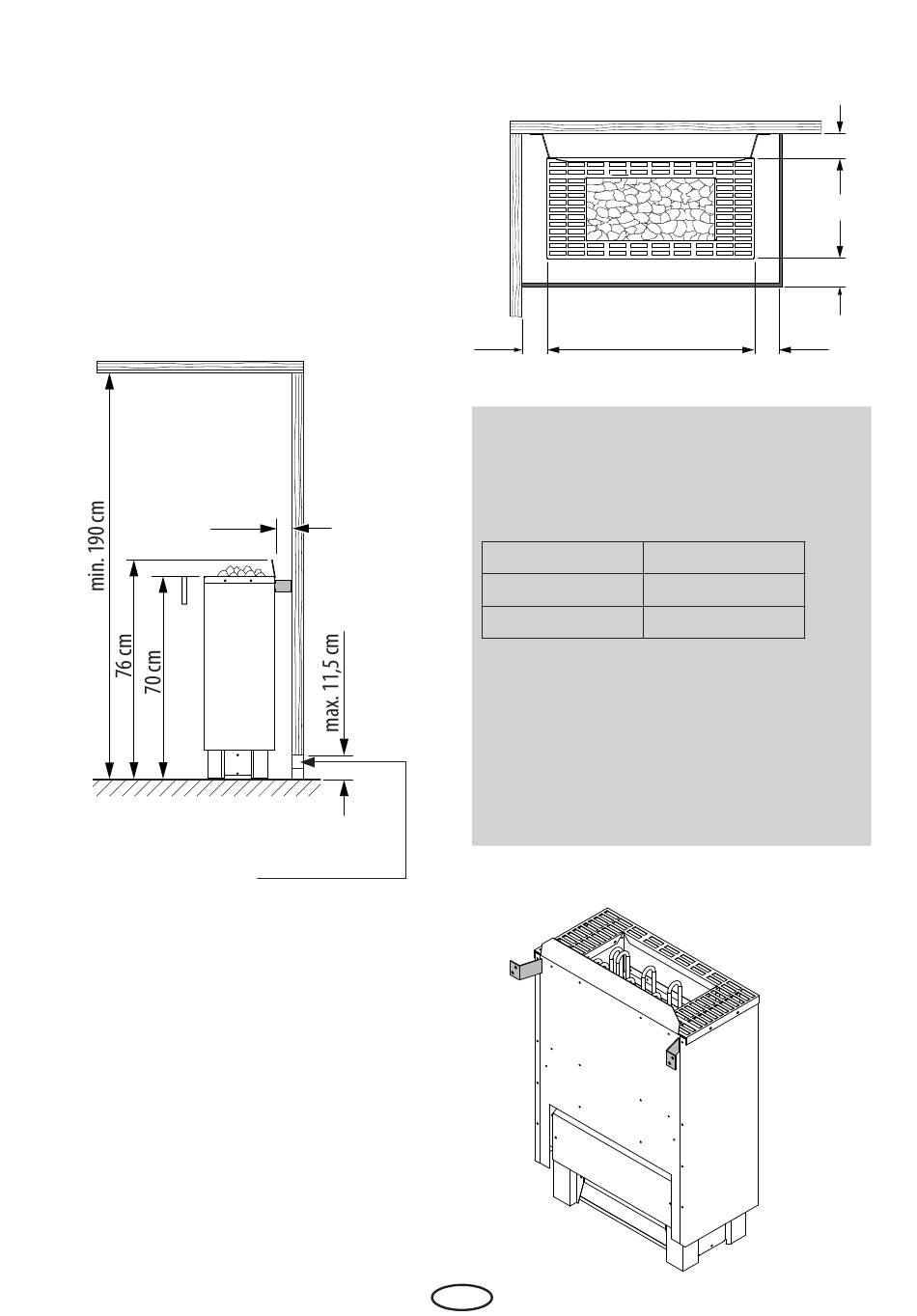

Minimum distances
• The minimum height of the sauna cubicle
should be 1.90 m on the inside (Fig. 1)
Cabin celling
6 cm
Fig. 1
• When you install the sauna heater you must
ensure that the horizontal (at the side) dis-
tance between the heater and cabin wall is at
least 6 cm (Fig. 2).
• The distance from the heater grid and the
bench to other inflammable materials near
the heater must be at least 4 cm. The heater
grid must be more or less the same height as
the front of the heater.
The heater safety system does not belong to
the scope of delivery and has to be ordered
separately.
air inlet
obligatory, centred to the
bottom tray
Mounting example
sauna cabin wall
guard rail
6 cm
Attention! Make sure to provide an air intake
vent below beneath the sauna heater. The air
intake vent and the exhaust air vent should
have the appropriate size as per heater power:
6.0 kW
7.5 kW
9.0 kW
Make sure there is a stable fresh air supply
through the air intake vent.
The lack of the sufficient fresh air supply may
cause overheating and lead to damages of
the sauna heater. The warranty will be void in
such case.
Fixation to the wall
back
EN
50,5 cm
6 cm
35 x 5 cm
35 x 6 cm
35 x 6 cm
6 cm
25 cm
6 cm
Fig. 2
Fig. 3
25
