Create all connections while the device is switched off. Use the shortest possible high-quality DMX cables for all
connections. Install the device on a plane surface.

DMX512 connection

Connect the DMX output of the FD-32+1 to the DMX input of the first fixture. Then connect the DMX output of the
first fixture in the DMX chain to the DMX input of the next fixture. Always connect one output to the input of the next
fixture until all fixtures are connected. For long connection cables it is recommended to terminate the DMX line.
Plug a terminating plug with a 120 Ω resistor between signal (–) and signal (+) to the DMX output of the last unit.

Power supply

Connect the power adapter provided to the corresponding input on the controller and to a mains socket. Thus, a
battery inserted will be switched off. Turn on the unit with the power switch. After the operation, turn off the unit
and disconnect the mains plug of the power adapter from the socket, to prevent unnecessary power consumption.

Battery operation

A 9V battery may be used to operate the controller. To insert or change the battery, switch off the unit first. Then
loosen the screws at the battery compartment and carefully remove the base plate. Take care not to damage the
cable. Insert or change the battery. Remount the base plate without squeezing the cables. Insert and tighten the
screws. If the controller is not used for a longer period, please remove the battery to prevent damage in case of
battery leakage.
The product is maintenance-free, except for occasional cleaning. You can use a lint-free, slightly dampened cloth
for cleaning. Refer all servicing to qualified personnel.
Power supply:
Power consumption:
Protection class:
Battery operation:
Number of control channels:
DMX512 output:
Dimensions (LxWxH):
Weight:
Specifications are subject to change without notice due to product improvements.

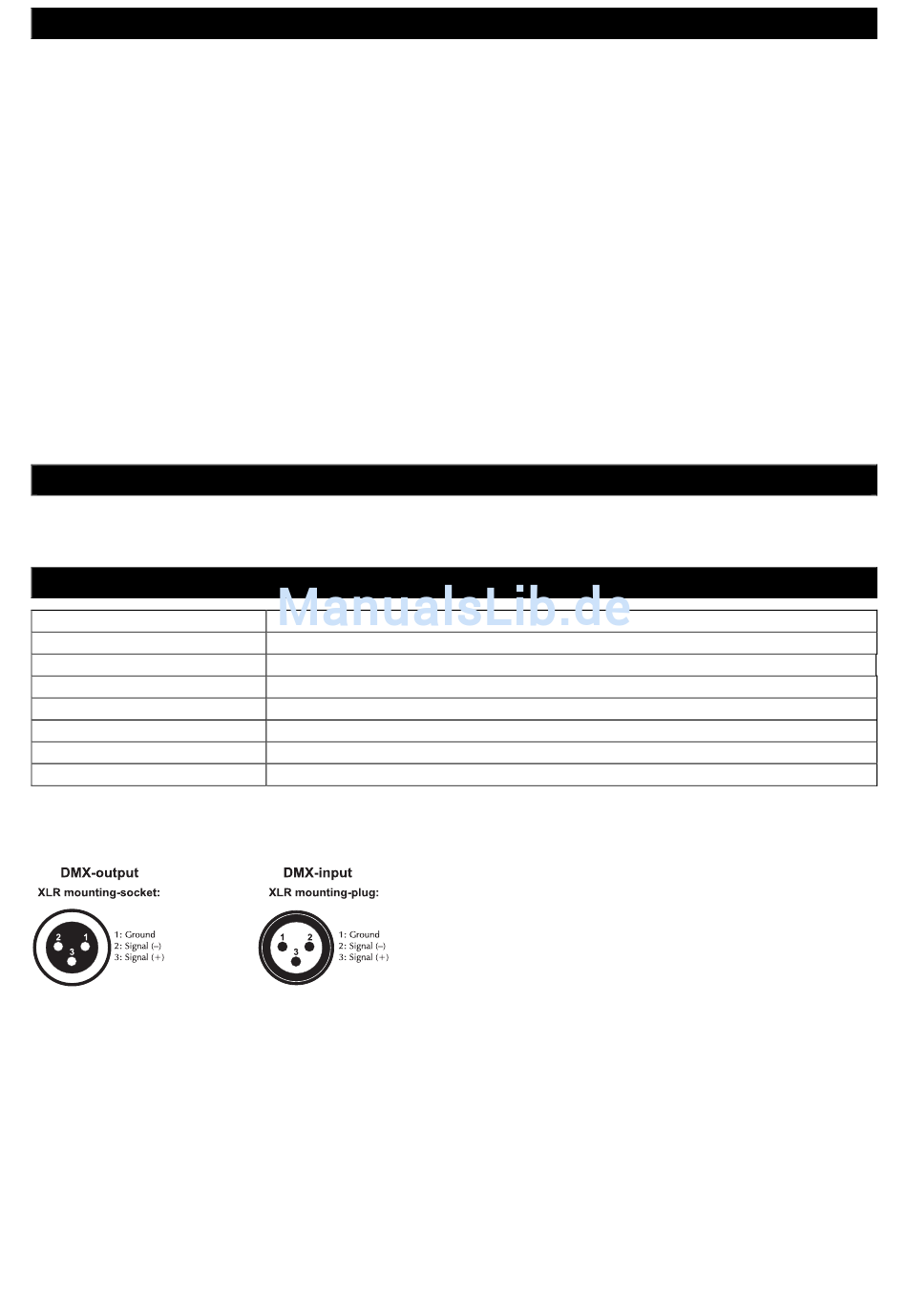

Pin connection:

SETUP

CLEANING AND MAINTENANCE

TECHNICAL SPECIFICATIONS

9-12V DC, 300 mA connected to 100-240 V AC, 50/60 Hz via included power adapter
7.2 W
III
9 V battery
32
3-pin XLR connector
120 x 230 x 65 mm
1 kg
11 • EN
