When supplied singly ensure that a copy of
this note is included within the package.
Additional copies of this sheet can be ordered from
ATTENTION!
enquiry@macouk.net!

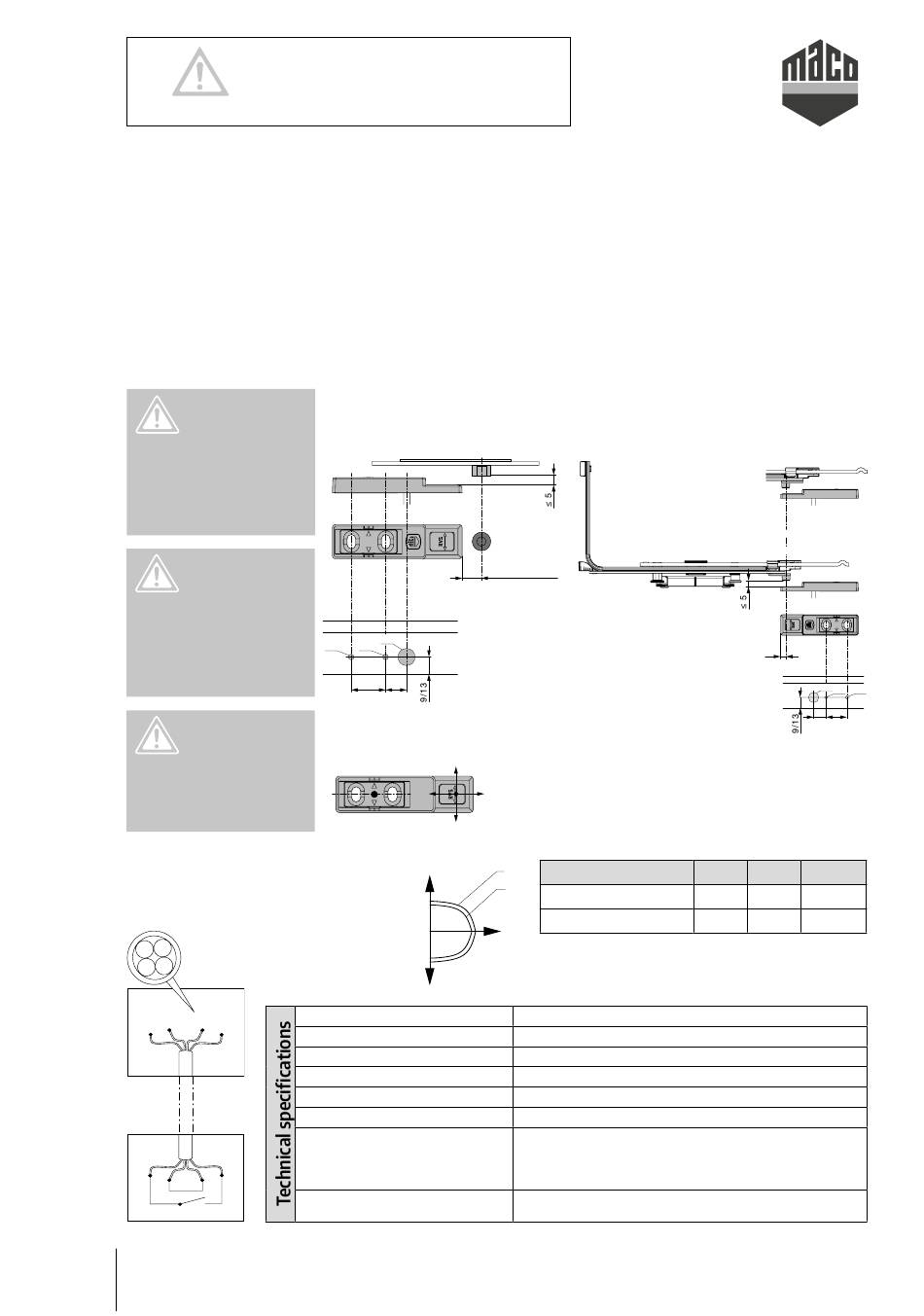

Assembly instructions for RVS reed contact
(Item no. 363177, 363178 and 363179)
Intended purpose:
The RVS reed contact is used on windows and doors as a signalling device (input device) for burglar alarm
systems. It is only permitted to be installed and used for this purpose!
The magnetic switch must only be installed by skilled personnel!
CAUTION!
Only hand-held
screwdrivers are
permissible for fixing the
device in place.
CAUTION!
For the tilt monitoring
function, we recommend
the use of a sash run-up
block.
WARNING!
The reed contact should
only be tested with a
digital multimeter.
Response
1
2
1 = white (signal contact)
2
2 = white (sabotage)
1
2
2
1
1
1
1
2
2
www.maco.eu
Order No. 756795 – Date: 04/2011 - Changed: 10.02.2022
All rights reserved and subject to change.
Drill-hole-pattern (contact sensor in turning position)
Locking monitoring
Ø9
*
Ø3
Ø3
* Allow for approx. 200 mm of
cable loop in the frame
11
18
Adjustment ranges
1,5
2,5
1,5
+X
-X
Switching voltage
Switching current / continuous current
Switching capacity
Connection type
Degree of protection
Temperature range
VdS approvals
Protection against environmental
influences
Tilt monitoring
10 = MULTI
11 = PROTECT
2,5
B
A
A = switch-on
B = switch-off
Y
NOTE: Earliest switch-on point: when contact sensor is at least
50% over the reed contact.
max. 100 V DC / max. 70 V AC (50 Hz)
max. 0.5 A / max. 0.5 A
max. 10 W / max. 10 VA
White cable, LIYY 4 x 0.14 mm²
IP67
-25 °C to +75 °C
Locking monitoring, VdS-class C
Opening monitoring, VdS Class B
Combined opening and locking monitoring, VdS-class B
Tilt monitoring, no VdS Class intended
VdS environmental class III, acc. to guideline for burglar alarm
systems VdS 2110, EN 50131-2-6
Adapter with contact sensor
Item no. 225901
Adapter with contact sensor
Item no. 200906
5
Ø9
Ø3
Ø3
11 18
X
Y
Tolerance
10
17
+/- 2
11
20
+/- 2
