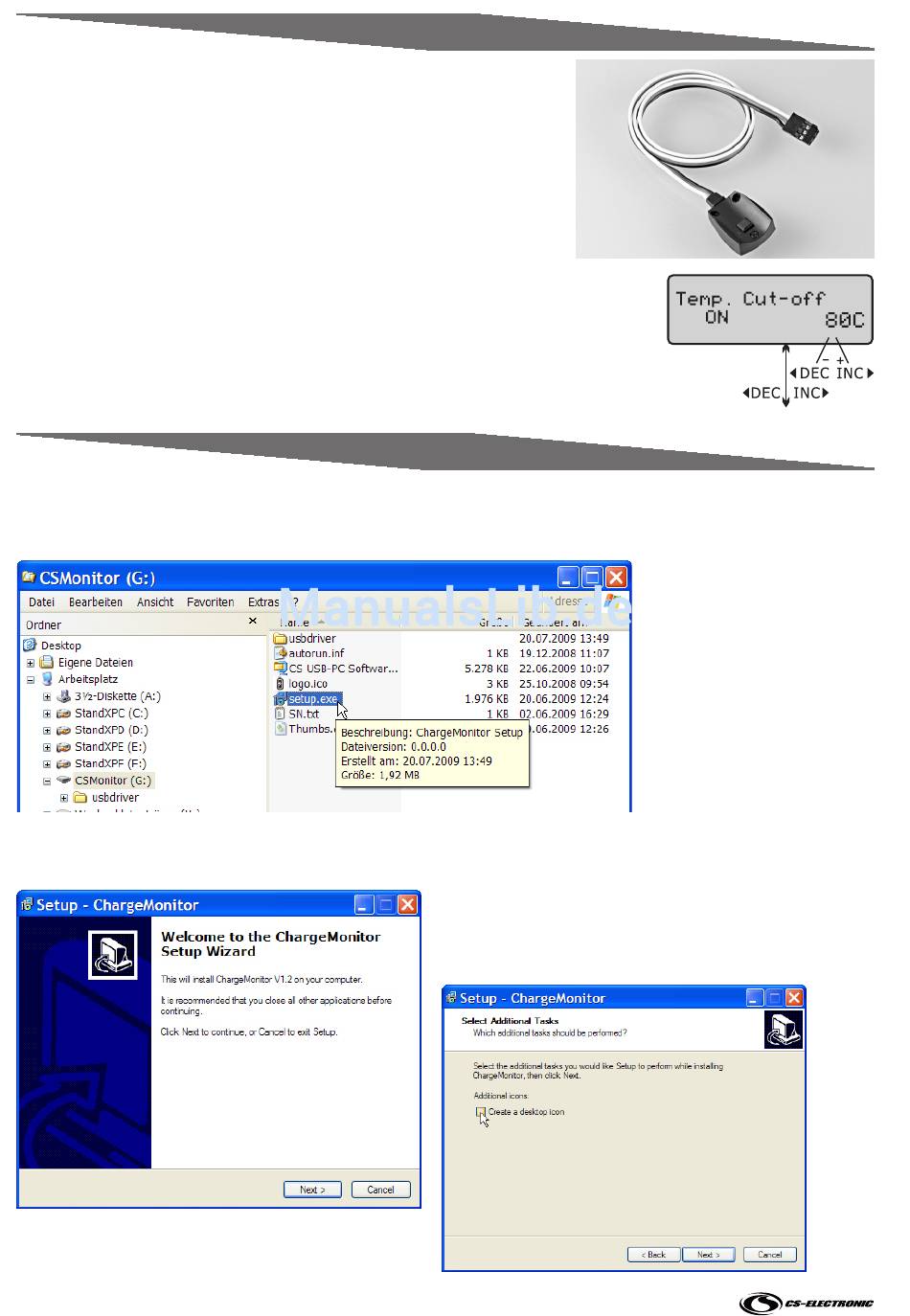

17. Connect the Temperature Sensor / Charging

When charging NiCd- or NiMH-batteries you can use a
temperature sensor. Connect the original CS-sensor with the
socket at the left side of the charger and stick the sensor to
the battery. Please note, that you first have to set the cut-off
temperature.
For the setting you press the Batt.Type-key as much until the
display USER SET Program-> is displayed. Now you press the
Start/Enter-key. Now use the -DEC/+INC-keys until "USB/
TEMP/SELECT , TEMP Cut-Off 80C:" is displayed.
You can set the temperature from 20°C to 80°C. If the temperature of
the battery is over the set limit, the charging process will be termina-
ted. Please refer to the manufacturer's indication.
To change the factory setting of 80°C press the enter key and change
the flashing value with the -DEC/+INC-keys. Safe the set value with the
enter key.

18. Software

The program is delivered on a USB-stick. Please plug in this stick in a free USB-port of your com-
puter. Now open the Windows-Explorer, go to the USB-stick and double click on the installation
program SETUP.EXE.
The following welcome screen is displayed:
18
Now click on Next and in the next windows you
can activate, if the installation program should
put an icon on your desktop.
