Master Dimmer
Silent Mode
Slave Mode
Control via IR
remote control

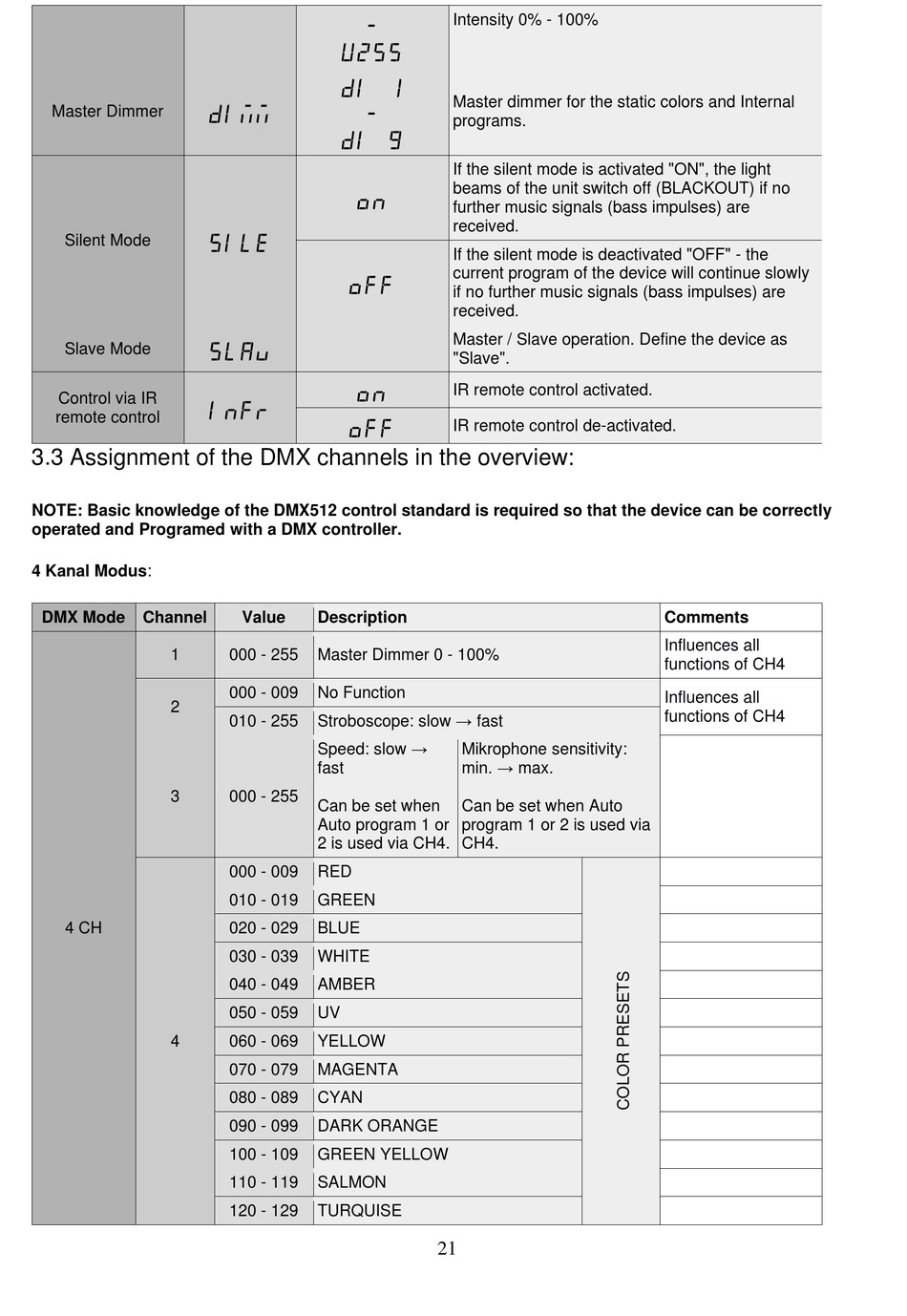

3.3 Assignment of the DMX channels in the overview:

NOTE: Basic knowledge of the DMX512 control standard is required so that the device can be correctly
operated and Programed with a DMX controller.
4 Kanal Modus:
DMX Mode Channel
1
2
3
4 CH
4
-
U255
dI 1
dIMM -
dI 9
on
SILE
oFF
SLAV
on
InFr
oFF
Value Description
000 - 255 Master Dimmer 0 - 100%
000 - 009 No Function
Stroboscope: slow → fast
010 - 255
Speed: slow →
fast
000 - 255
Can be set when
Auto program 1 or
2 is used via CH4.
000 - 009 RED
010 - 019 GREEN
020 - 029 BLUE
030 - 039 WHITE
040 - 049 AMBER
050 - 059 UV
060 - 069 YELLOW
070 - 079 MAGENTA
080 - 089 CYAN
090 - 099 DARK ORANGE
100 - 109 GREEN YELLOW
110 - 119 SALMON
120 - 129 TURQUISE
Intensity 0% - 100%
Master dimmer for the static colors and Internal
programs.
If the silent mode is activated "ON", the light
beams of the unit switch off (BLACKOUT) if no
further music signals (bass impulses) are
received.
If the silent mode is deactivated "OFF" - the
current program of the device will continue slowly
if no further music signals (bass impulses) are
received.
Master / Slave operation. Define the device as
"Slave".
IR remote control activated.
IR remote control de-activated.
Mikrophone sensitivity:
min. → max.
Can be set when Auto
program 1 or 2 is used via
CH4.
21
Comments
Influences all
functions of CH4
Influences all
functions of CH4
