This mode offers the
possibility to separately
control each of the 6
colors of the LEDs (R,
G, B, W, A and UV) in
intensity and thus to
produce an unlimited
number of different
colors
Master Dimmer
Silent-Mode
Slave Mode
Control via IR remote
control

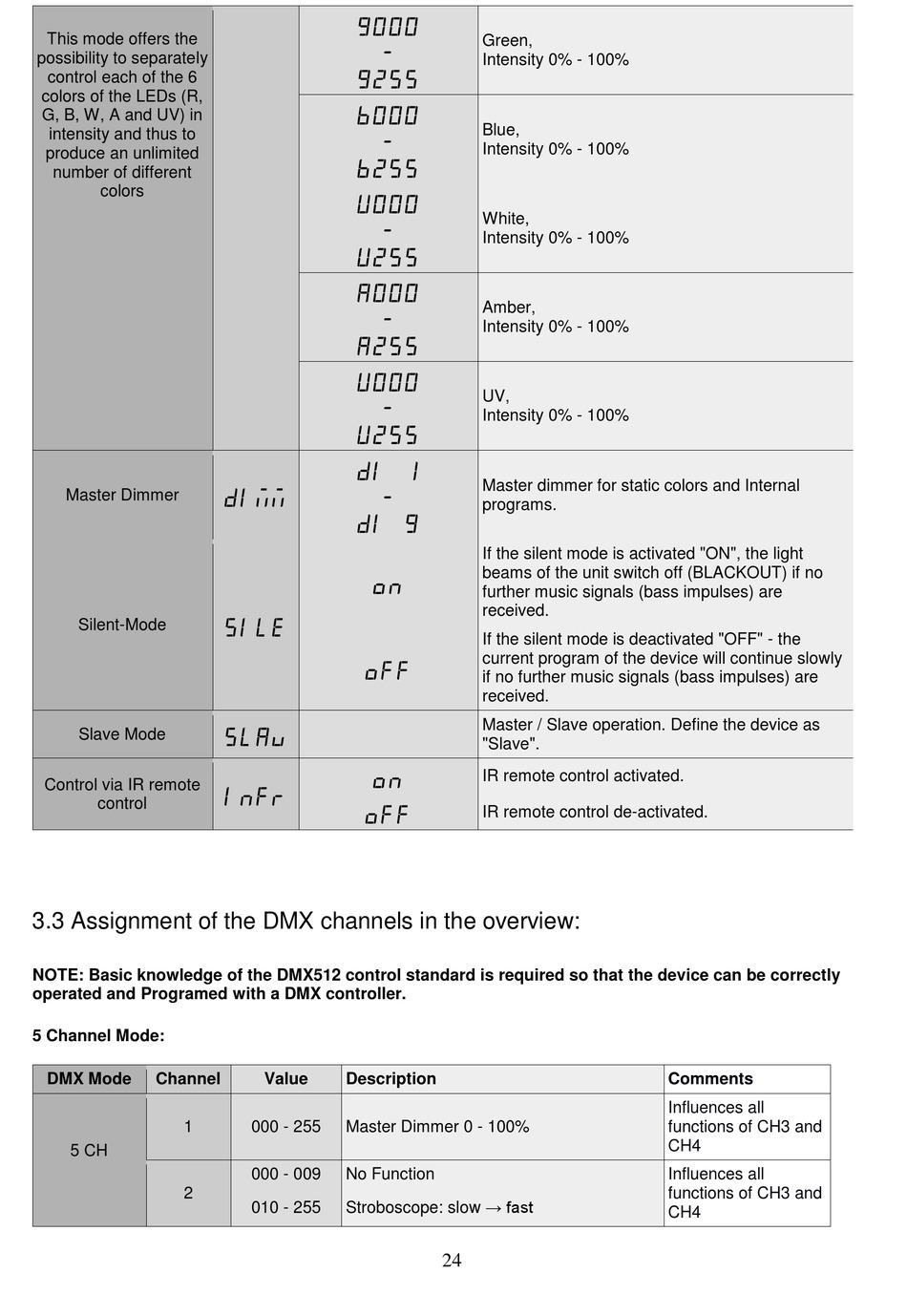

3.3 Assignment of the DMX channels in the overview:

NOTE: Basic knowledge of the DMX512 control standard is required so that the device can be correctly
operated and Programed with a DMX controller.
5 Channel Mode:
DMX Mode Channel
1
5 CH
2
g000
-
g255
b000
-
b255
U000
-
U255
A000
-
A255
u000
-
u255
dI 1
dIMM -
dI 9
on
SILE
oFF
SLAV
on
InFr
oFF
Value Description
000 - 255 Master Dimmer 0 - 100%
000 - 009 No Function
Stroboscope: slow → fast
010 - 255
Green,
Intensity 0% - 100%
Blue,
Intensity 0% - 100%
White,
Intensity 0% - 100%
Amber,
Intensity 0% - 100%
UV,
Intensity 0% - 100%
Master dimmer for static colors and Internal
programs.
If the silent mode is activated "ON", the light
beams of the unit switch off (BLACKOUT) if no
further music signals (bass impulses) are
received.
If the silent mode is deactivated "OFF" - the
current program of the device will continue slowly
if no further music signals (bass impulses) are
received.
Master / Slave operation. Define the device as
"Slave".
IR remote control activated.
IR remote control de-activated.
24
Comments
Influences all
functions of CH3 and
CH4
Influences all
functions of CH3 and
CH4
