3. Start-up

3.1 Lifting and carrying

3.2 Dimensions

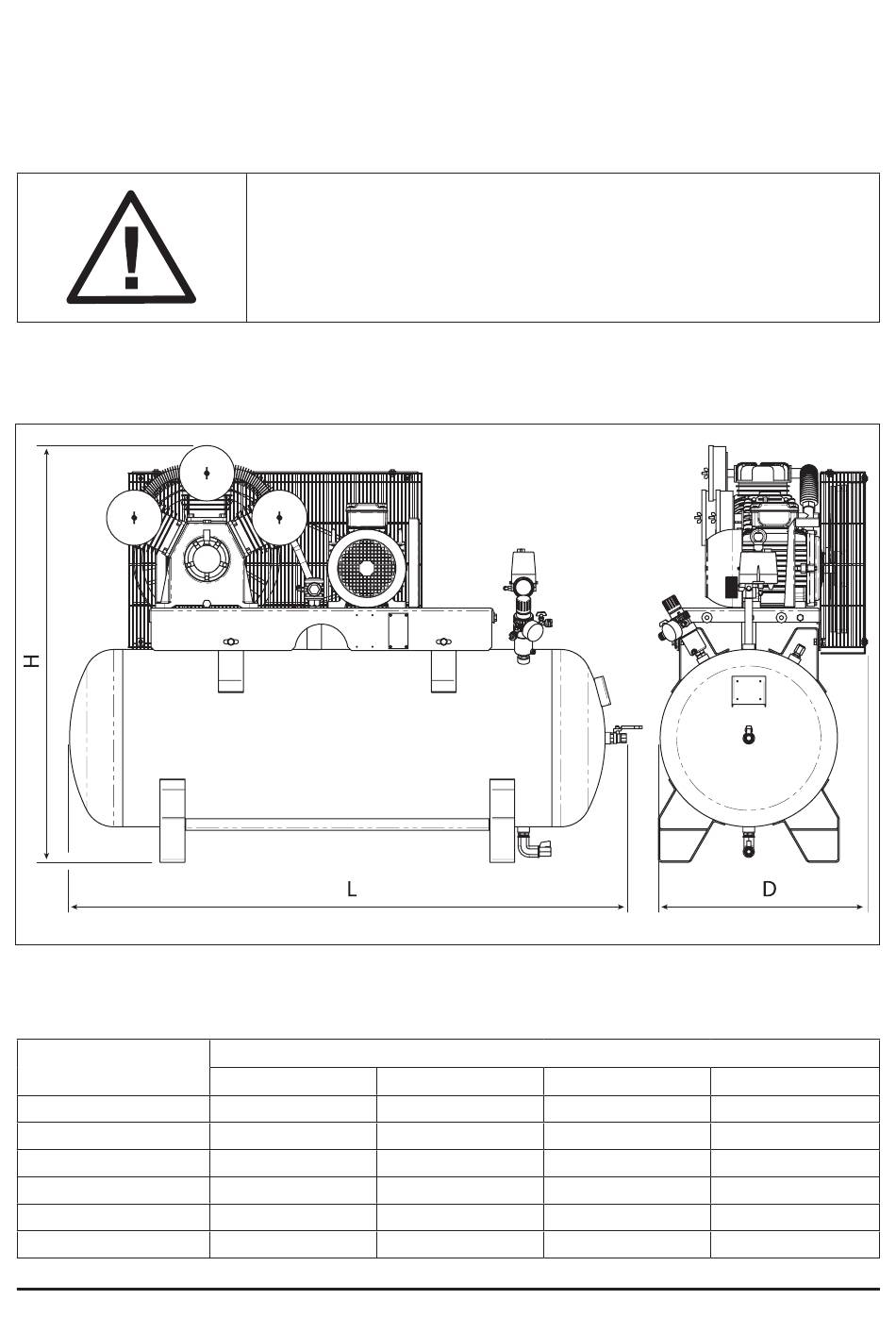

Fig. 4 dimension drawing rCW
Model
RCW-3-100
RCW-3-270
RCW-4-100
RCW-4-270
RCW-5,5-100
RCW-5,5-270
COMPRAG RECOM RCW series
All lifting should be carried out using a forklift truck with a carry-
ing capacity suited to the compressor.
Lifting may be carried out with loading cranes, winches and other
machinery, using a crossbeam with the right length.
Local safety guidelines for lifting have to be implemented.
Length L, mm
1250
1614
1205
1614
1205
1614
Compressor dimensions
Width D, mm Height H, mm
490
607
490
607
490
607
Weight, kg
949
1179
949
1179
949
1179
139
222
161
244
187
278
13
