1. Presentation

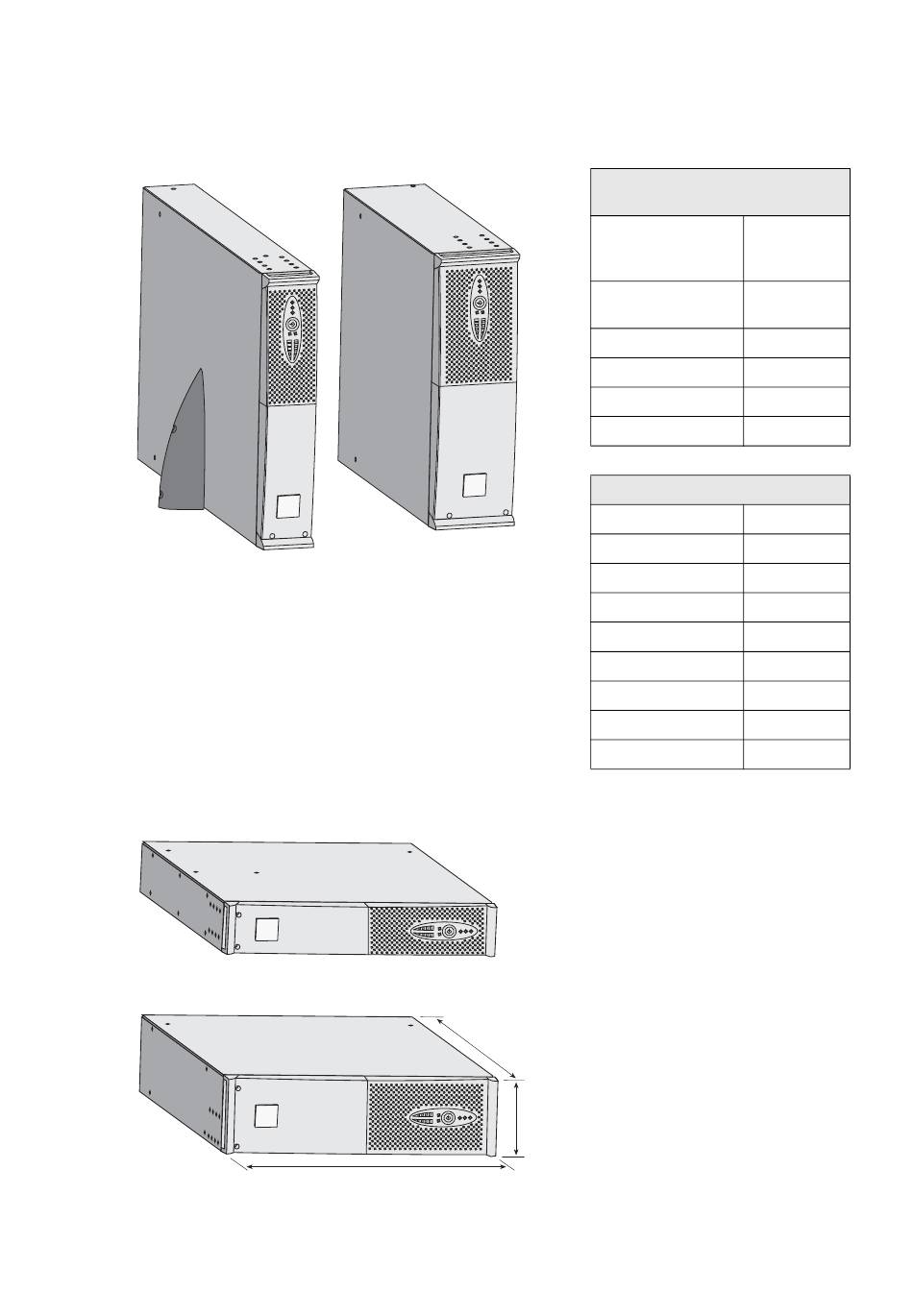

1.1 Standard positions

Tower position

Rack position

34008236EN/AC - Page 6
D
H
W
Dimensions (W x H x D)
in mm
S 1250 RT 2U 440 x 86 x 509
S 1750 RT 2U
2000 RT 2U
S 2500 RT 2U 440 x 86 x 634
S 3000 RT 2U
S 3000 RT 3U 440 x 131 x 484
S EXB 1250/1750 RT 2U 440 x 86 x 509
S EXB 2500/3000 RT 2U 440 x 86 x 634
S EXB 2500/3000 RT 3U 440 x 131 x 484
Weights in kg
S 1250 RT 2U 24.3
S 1750 RT 2U 26.6
2000 RT 2U 25.7
S 2500 RT 2U 33.8
S 3000 RT 2U 33.8
S 3000 RT 3U 34.3
S EXB 1250/1750 RT 2U 30.4
S EXB 2500/3000 RT 2U 41.5
S EXB 2500/3000 RT 3U 41.7
