FUNCTIONAL INSTRUCTIONS
1. The DSP software X-CONTROL 2 is suitable for all computers with a Windows™ operating system newer than XP and a USB port.
The installation requires approximately 25 MB of free space. Due to the principle it should be used with a portable laptop computer.
2. After downloading the X-CONTROL 2 software at http://www.audiodesign.de/esx/dsp, unpack the downloaded ".rar" file with a suit-
able software such as WinRAR on your PC.
3. Important Note: First, run a "MCU Upgrade" on your DSP device to run X-CONTROL 2 with it. Connect your DSP device via USB
cable to the PC on which you have installed X-CONTROL 2. Then, start the "McuUpgrade.exe" file in the "MCU Upgrade" folder of the
previously unzipped file. After the start, you do not have to do anything until the update in the terminal window is finished. Then you
can close the window.
4. Now you can install X-CONTROL 2 on your PC. To do this, start the "setup.exe" of the previously unzipped file. The installer will guide
you through the usual steps. It is recommended to create a desktop shortcut (Create a desktop icon). After the installation, the com-
puter should be restarted.
Important note for 64 bit operating systems: For 64-bit operating system, you may need to install the 64 bit device drivers manu-
ally. You can find the drivers in the unzipped folder too. For 32-bit operating systems, the driver will be installed automatically during the
program installation.
PROCESSOR CONFIGURATION WITH THE SOFTWARE
26
INSTALLATION OF THE DSP-SOFTWARE INSTALLATION DER DSP-SOFTWARE
Connect the computer on which you have installed the X-CONTROL software with the DSP
processor via the enclosed USB cable. After connecting the devices, start the program on
the computer.

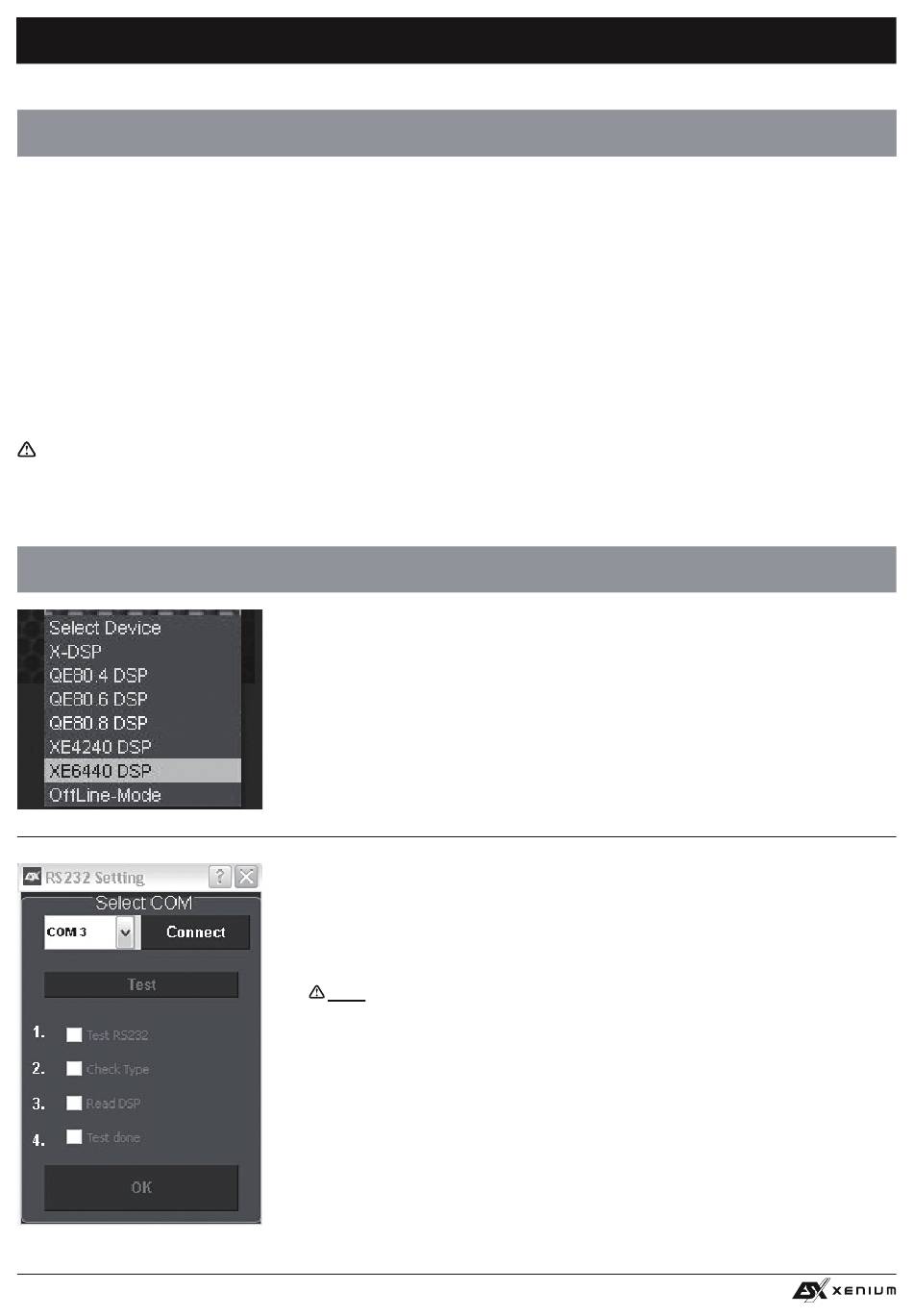

After starting the program the start screen appears. Select on the bottom right under Select
Device your device XE6440-DSP with the mouse.
Demo Mode (OffLine-Mode)
You can start X-CONTROL even without connecting to the DSP processor in an offline
mode and become familiar with the features of the software.
Enable the connection with the DSP in the RS232 Setting. The COM interface should be
automatically detected and selected, it varies from system to system. Click then Connect.
The program starts then automatically the connection.
If you cannot continue after selecting Connect, follow the instructions in the chapter trouble
shooting section on page 29.
Note: The COM port is automatically assigned by the Windows operating system. Please
ensure that the port must be between COM1 and COM9.
