FUNCTIONAL INSTRUCTIONS
OPTICAL

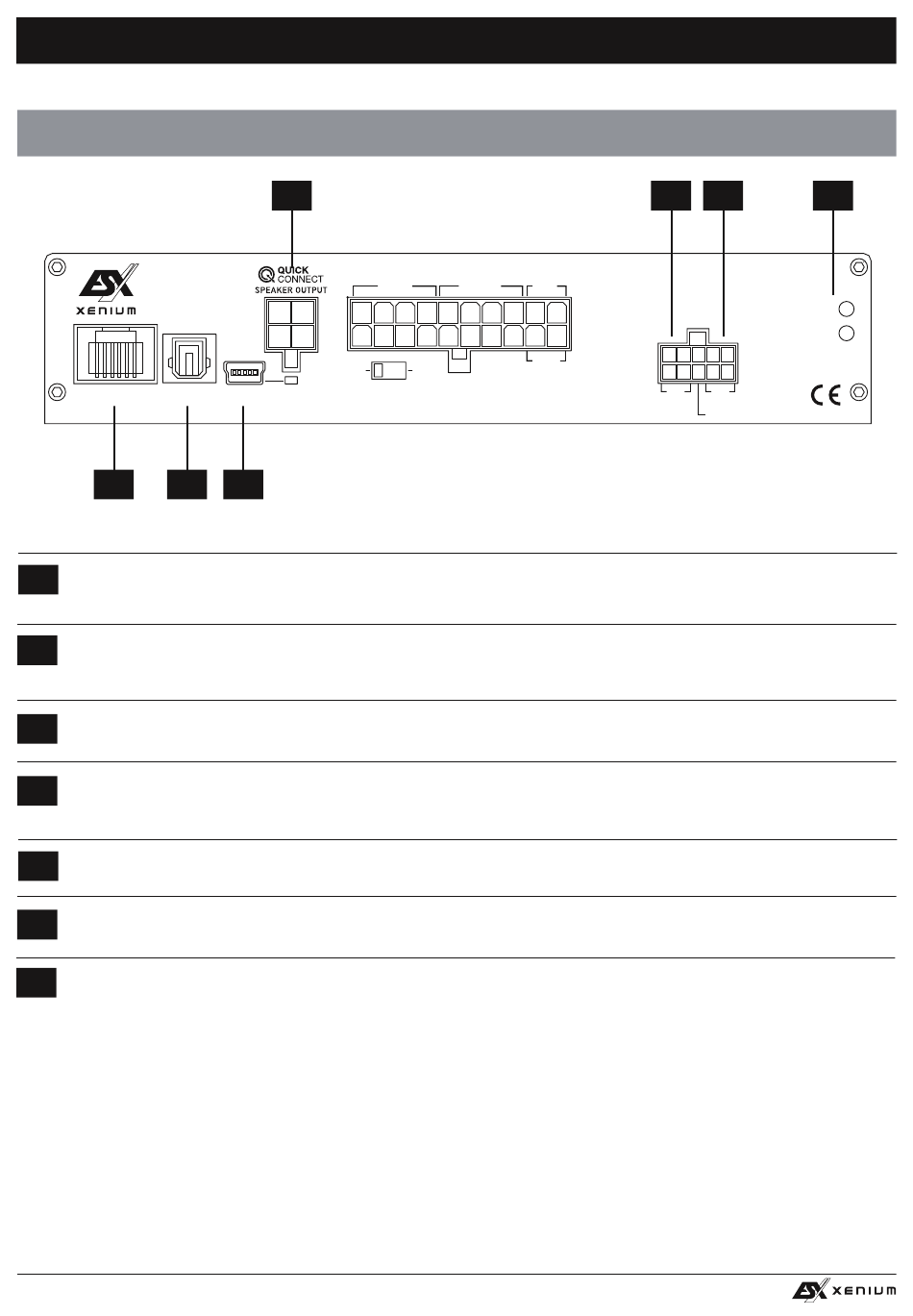

AMPLIFIER FEATURES AND OPERATIONAL CONTROLS
REMOTE
INPUT
OPTICAL
REMOTE
INPUT
5
6
Input for the SPEAKER OUTPUT CABLE-SET (4-pin). Use this output to operate 2 speakers with a load capacity of approx.
1
2 x 70/100 Watts RMS on 4/2 Ohms. Optionally you can operate also a subwoofer with a load capacity of approx. 200 Watts
RMS/Max. on 4 Ohms bridged.
Input for the AUDIO/AUX/REM CABLE-SET (10-PIN).
2
The LINE OUT RCA jacks G/H of this cable-set deliver a linear full range signal to operate additional amplifiers or devices, which
can be modified by the DSP software.
Connect the AUX IN RCA jacks with external audio sources like MP3 player, smart phones, navigation systems and like by using
3
suitable cables.
POWER/PROTECT
4
If the POWER LED lights up, the amplifier is ready for operation.
If the PROTECT LED lights up, a malfunction is indicated. In this case refer to the chapter TROUBLE SHOOTING.
The REMOTE input is for the enclosed remote controller. Please refer to the information on the next page.
5
The OPTICAL input is suited for a Toslink cable connection with an external audio source that provides a SPDIF signal (stereo
6
PCM).
If necessary, connect the mini-USB port by using the enclosed USB cable to the computer on which the X-CONTROL soft-
7
ware is installed. The connection can be released after using the DSP software.
Do not extend the cable in any way with a passive USB extension because otherwise a flawless communication between
the DSP amplifier and the PC can not be ensured. If you have to bridge longer distances, use an active USB extension with
integrated repeater.
The LED next to the USB port lights up blue when a connection between DSP device and computer is made via the USB cable.
24
E / F / G / H
HIGH LEVEL
LINE OUT
INPUT
ON
AUTO TURN ON
PC CONNECT USB
ONLY WITH HIGH LEVEL INPUT
1
HIGH LEVEL
INPUT
F+
E+
F -
E -
ON
AUTO TURN ON
PC CONNECT USB
ONLY WITH HIGH LEVEL INPUT
7
SPEAKER
BAT T.
OUTPUT
+12V
GND
OFF
SPEAKER
BAT T.
OUTPUT
+12V
GND
OFF
XE4240-DSP
V2
4-CHANNEL AMPLIFIER WITH
DIGITAL SOUND PROCESSOR
REM
AUX
IN/OUT
INPUT
2
3
XE6440-DSP
V2
6-CHANNEL AMPLIFIER WITH
DIGITAL SOUND PROCESSOR
G/H
AUX
LINE OUT
INPUT
REM IN/OUT
PRT.
POW.
4
PRT.
POW.
OP
REMOTE
IN
OP
