FUNCTIONAL INSTRUCTIONS

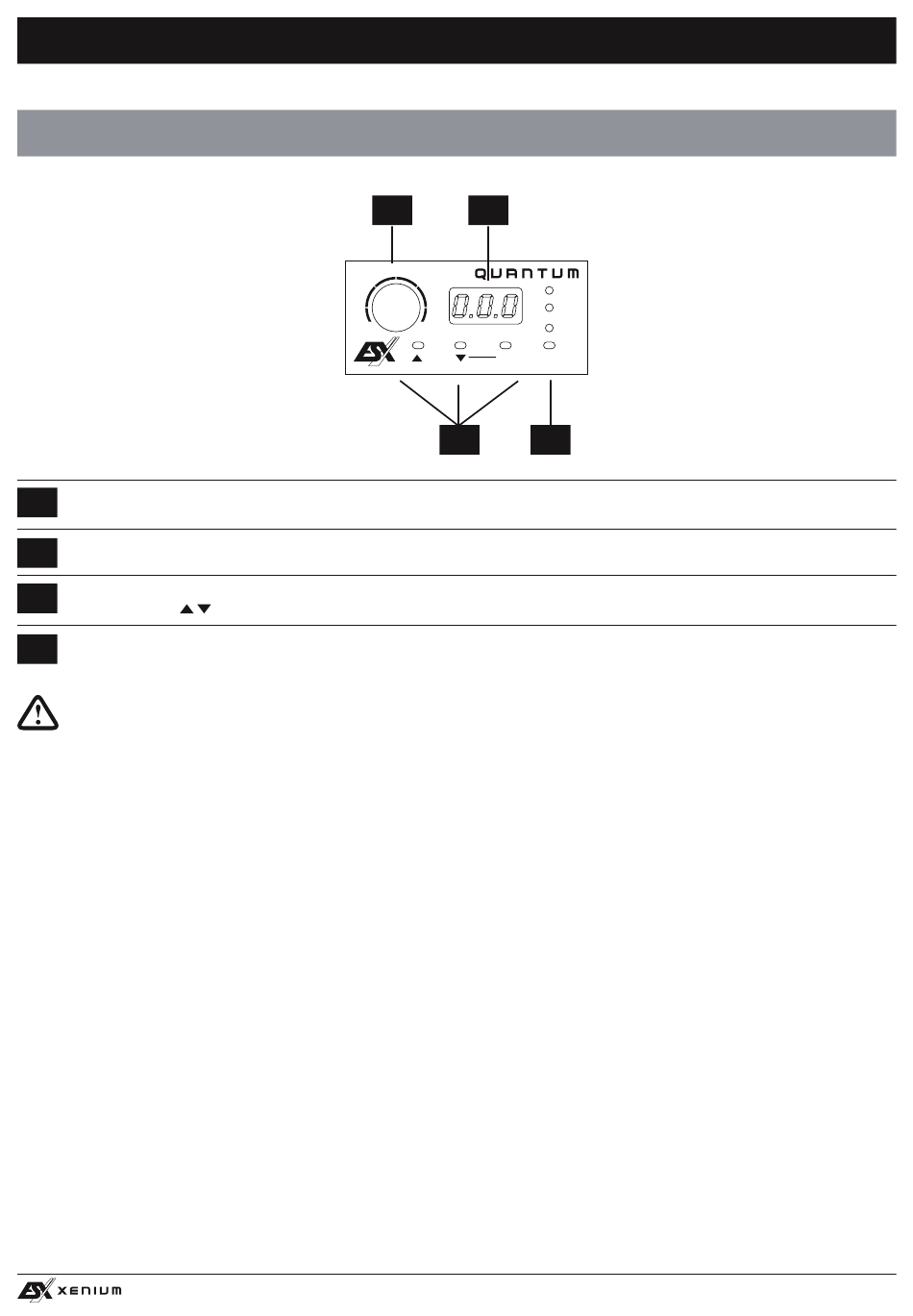

REMOTE FEATURES AND OPERATIONAL CONTROLS
1
With this knob the overall volume of the sound system can be controlled. If you press and hold the knob for 3 seconds, the bass
level of output SUB OUT (G / H) can also be controlled.
The LED display shows the values when turning the knob (# 1) or the number of the selected settings.
2
With the two MODE buttons you can choose between the settings, which are stored in the DSP.
3
Use the buttons
With the INPUT button you are able to switch between the signal inputs of the audio sources HIGH LEVEL INPUT, AUX INPUT
4
and OPTICAL. WiFi is currently not supported.
Important note: If the remote control is not connected, the amplifier works with setting 1 and no settings
can be saved.
OPTICAL
REMOTE
INPUT
OPTICAL
VOLUME
–
VOLUME
–
to select the desired setting and confirm with OK (# 3).
E / F / G / H
HIGH LEVEL
LINE OUT
ON
AUTO TURN ON
PC CONNECT USB
ONLY WITH HIGH LEVEL INPUT
HIGH LEVEL
F+
E+
F -
E -
1
2
+
MODE
OK
INPUT
3
4
+
MODE
OK
INPUT
SPEAKER
BAT T.
INPUT
OUTPUT
+12V
GND
OFF
SPEAKER
BAT T.
INPUT
OUTPUT
+12V
MAIN
AUX
OPTICAL
MAIN
AUX
OPTICAL
XE4240-DSP
4-CHANNEL AMPLIFIER WITH
DIGITAL SOUND PROCESSOR
REM
IN/OUT
XE6440-DSP
6-CHANNEL AMPLIFIER WITH
DIGITAL SOUND PROCESSOR
V2
PRT.
POW.
AUX
INPUT
V2
25
PRT.
POW.
