M-LINE

1. GENERAL

1.1

A quick look at the appliance

The most important parts of the appliance are shown in the fold-out sheet in this manual.
Keep the fold-out sheet open when reading the instructions.

1.1.1 Most important parts

1. Appliance on/off switch coffee making
section and bottom hot plate
2. On/off switch for top hot plate
3. Basket filter with drip stop device
4. Basket filter paper
5. Control panel coffee maker
5.1 Display
5.2 Descale indicator light
5.3 Brewing process indicator light
5.4 Selection button
5.5 Start/stop button

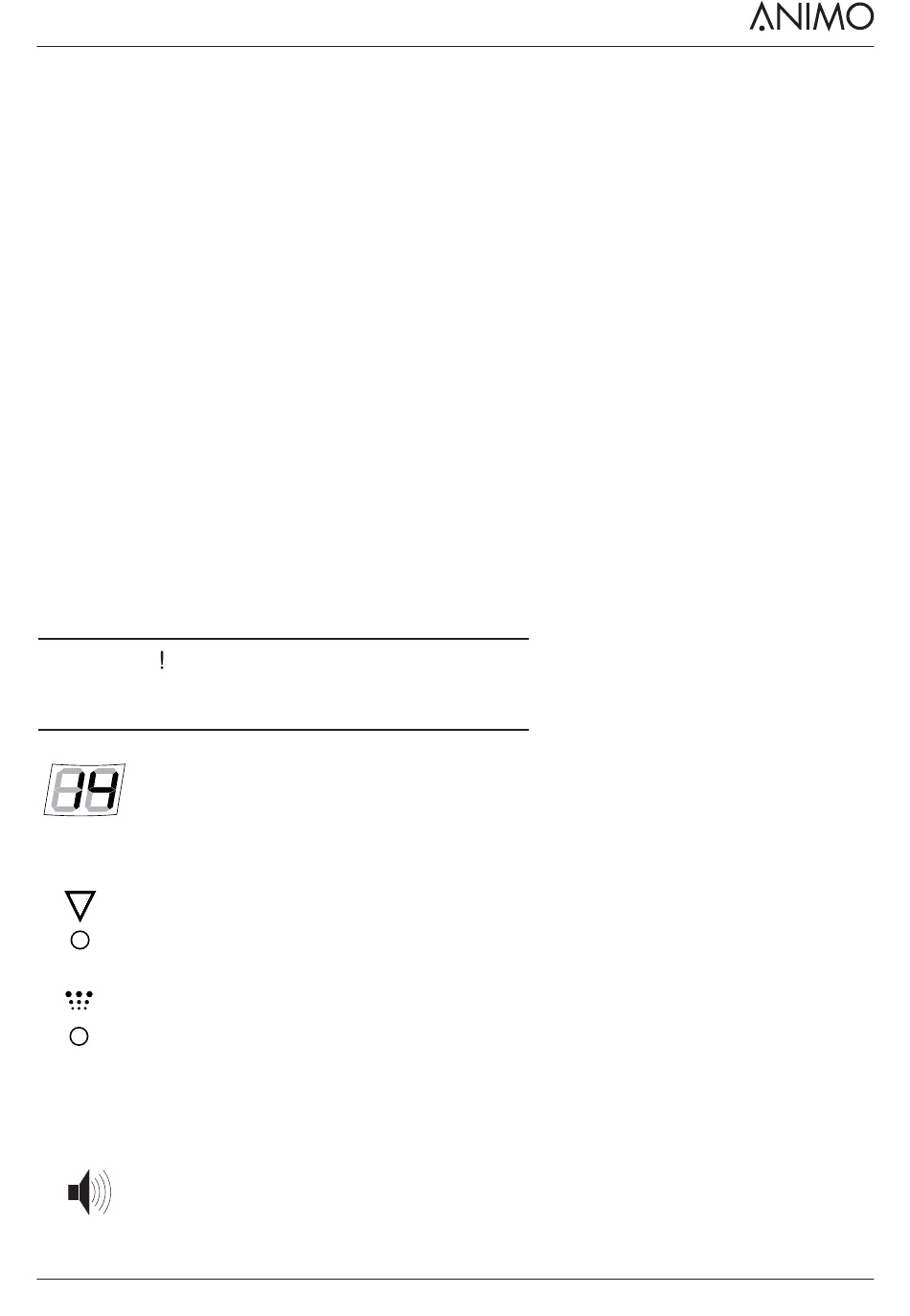

1.1.2 Control panel

The control panel has the following functions:
CAUTION
• Never press de buttons with a sharp object.
• Protect the controls against dirt and grease.
Display (5.1); The display shows the selected amount of coffee, in terms of
cups. For display in litres, see chapter 5.2.
While the coffee is being made the display alternately shows the selected
amount and the amount of coffee that has already been made.
Descale indicator light (5.2); The red indicator light will light up if the
appliance needs to be descaled. The appliance will continue to work so that it
can be descaled when it is not being used. See also chapter 6.2.
Brewing process indicator light (5.3); The green indicator light lights up
when the coffee passes through the system. At the end of the coffee making
process a signal sounds three times and the green indicator light goes out.
The indicator light flickers if the jug is temporarily removed during the coffee
making process. A signal will also sound indicating that the coffee making
process has temporarily stopped.
Sound signals; Sounds three times at the end of the coffee making process.
Sounds once if the jug is removed during the coffee making process.
A long signal sounds when the appliance is switched on.
2015/02 Rev. 4.0
6. Top hot plate
7. Glass jug/thermos flask
8. Descaling opening
9. Jug detector
10. Bottom hot plate
11. Type plate
12. Water drain
13. Connection cable with plug
14. Dry-boil protection
15. Water connection
BOILER
BOILER
BOILER
