4 I/O Box
4 I/O Box

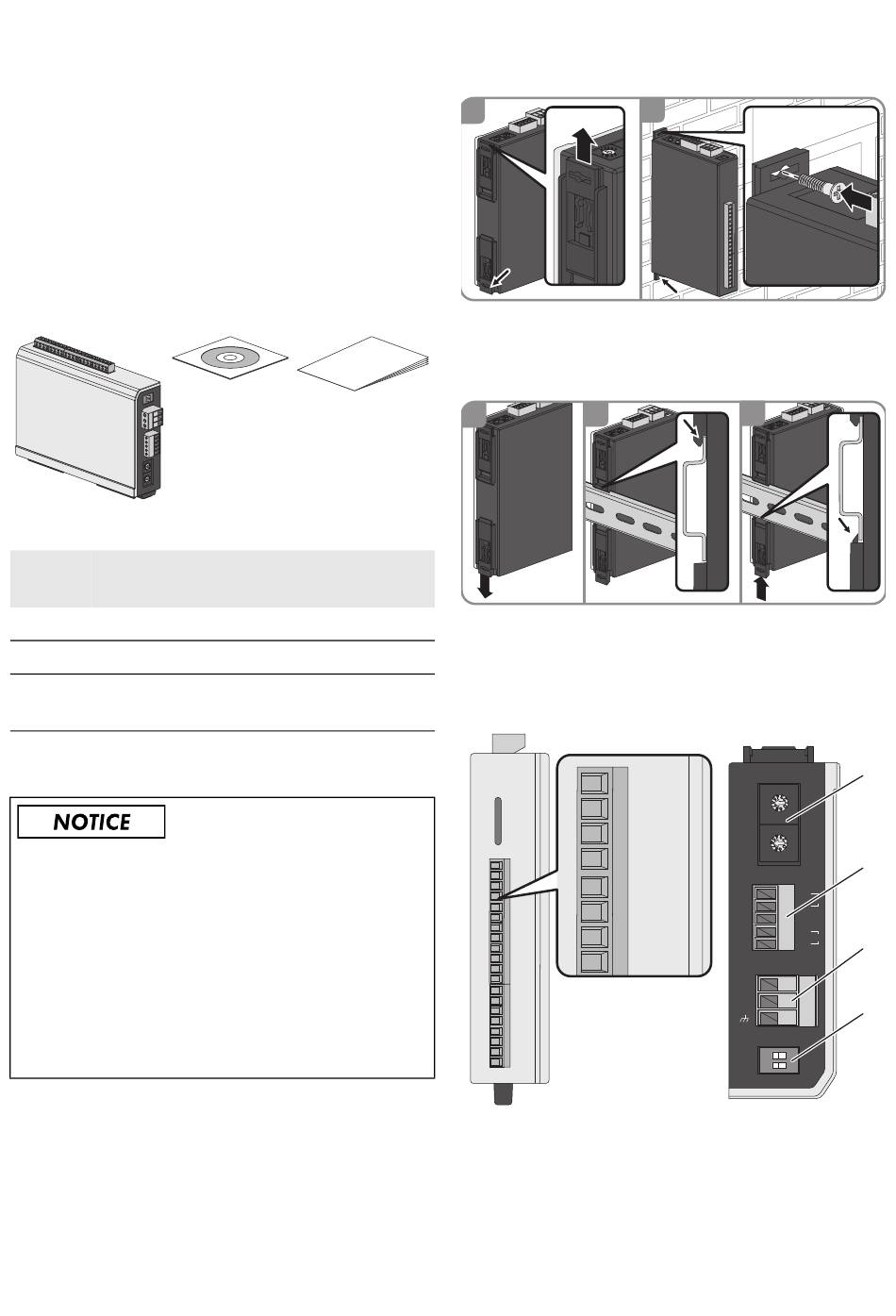

4.1 Scope of Delivery

Check the scope of delivery of each product for
completeness and any externally visible damage.
Contact your distributor if the scope of delivery is
incomplete or damaged.
The scope of delivery may contain parts that are not
required for the installation.
A
Figure 8: Components included in scope of delivery of the I/O Box
Position Numbe Designation
r
A 1 I/O Box
B 1 CD
C 1 Quick reference guide for
installation
4.2 Mounting the I/O Box
Damage to the products and cables due to moisture
The Inverter Manager and the I/O Box are not protected
against splash water. Consequently, moisture can
penetrate the device and damage the products and
cables.
• The Inverter Manager and the I/O Box must be
installed in a dry environment, e.g. indoors or in a
splash-proof enclosure (degree of protection: at least
IP54 (NEMA 3R)).
20 IMVIOBOX-IA-xx-19
B C
4.2.1 Option 1: Wall Mounting
1
4.2.2 Option 2: Mounting on Top-Hat
Rail
2
1
4.3 Connection to the I/O Box
4.3.1 Overview
A
COM0
DI0
DI1
DI2
DI3
GND
DI4
DI5
DI6
DI7
COM1
DIO0
DIO1
DIO2
DIO3
GND
DIO4
DIO5
DIO6
DIO7
Figure 9: Overview of the connection to the I/O Box
SMA Solar Technology AG
2
3
COM0
DI0
DI1
DI2
DI3
D1+
GND
D1-
GND
DI4
D2+
D2-
DI5
V+
V-
Dual
Run
Installation Manual
B
X10
X1
C
P1
P2 D
E
Rep
Initial
