3.3 Connection to the
Inverter Manager

3.3.1 Safety Information

Danger to life due to electric shock
Lethal voltages are present at the connection point of the
utility grid.
• Disconnect the connection point from voltage sources
and ensure that the connection point is voltage-free.
3.3.2 Circuitry Overview of Sunny Tripower 60 / Sunny Highpower 75

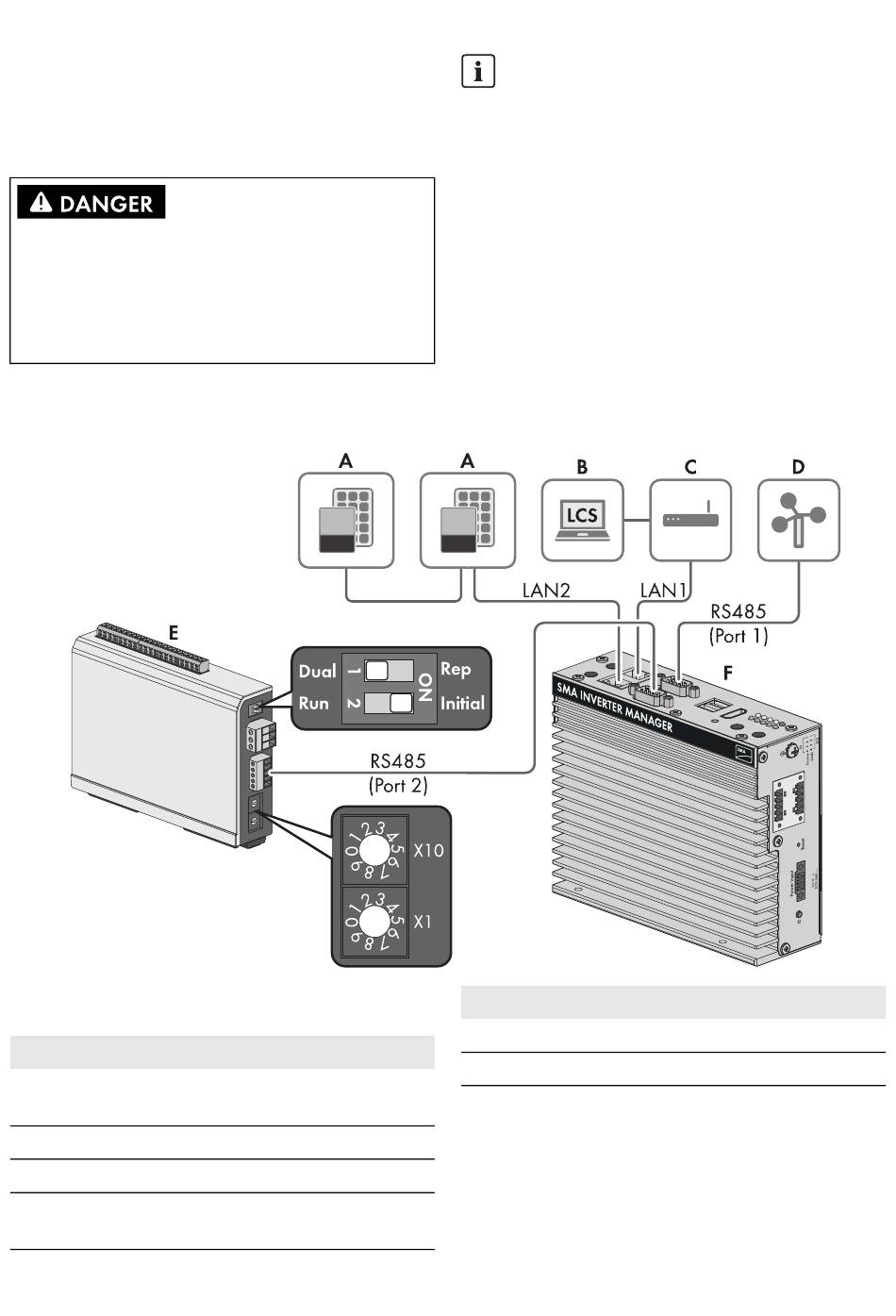

Figure 2: Circuitry Overview of Sunny Tripower 60 /
Sunny Highpower 75
Position Designation
A Sunny Tripower 60 /
Sunny Highpower 75
B PC with LCS-Tool
C Router
D SunSpec Alliance compatible weather
station (optional)
Installation Manual
Yield loss due to switching off the Inverter
Manager overnight
The Inverter Manager compresses database content
at night to save on physical storage space. If the
Inverter Manager is switched off during the night,
these database compressions cannot be carried out.
This may result in insufficient storage capacity. and
the Inverter Manager may no longer be able to
communicate with the inverter. This can result in yield
loss.
• Do not switch off the Inverter Manager at night.
• In the event of a communication failure, set the
fallback behavior in the inverter.
Position Designation
E I/O Box (optional)
F Inverter Manager
3 Inverter Manager
