2 Safety

2.1 Intended Use

The Inverter Manager is a device for monitoring and
controlling up to 42 Sunny Tripower 60 or
Sunny Highpower 75 or up to 20
Sunny Tripower Storage 60 with battery storage system in
decentralized PV system.
The I/O Box is a function interface for one Inverter
Manager. The I/O Box receives commands for grid
management services via digital signals and sends these
specifications to the Inverter Manager.
The Inverter Manager receives the specifications from the I/
O Box and controls all inverters in the PV system
accordingly. The Inverter Manager and the I/O Box must
only be used indoors and must only be operated with the
Sunny Tripower 60, Sunny Tripower Storage 60 and
Sunny Highpower Peak1.
The LCS-Tool is required for commissioning and servicing
the inverters via the Inverter Manager. The LCS-Tool is the
primary user interface for the PV system and battery storage
system.
Use this product only in accordance with the information
provided in the enclosed documentation and with the
locally applicable standards and directives. Any other
application may cause personal injury or property damage.
For safety reasons, it is not permitted to modify the product
or install components that are not explicitly recommended
or distributed by SMA for the product. Unauthorized
changes and modifications will void all warranty claims and
the operating permission. Any use of the product other than
that described in the Intended Use section does not qualify
as appropriate.
The type label must remain permanently attached to the
product. The enclosed documentation is an integral part of
this product.
Installation Manual
3 Inverter Manager
3.1 Scope of Delivery
Check the scope of delivery of each product for
completeness and any externally visible damage. Contact
your distributor if the scope of delivery is incomplete or
damaged.
The scope of delivery may contain parts that are not
required for the installation.

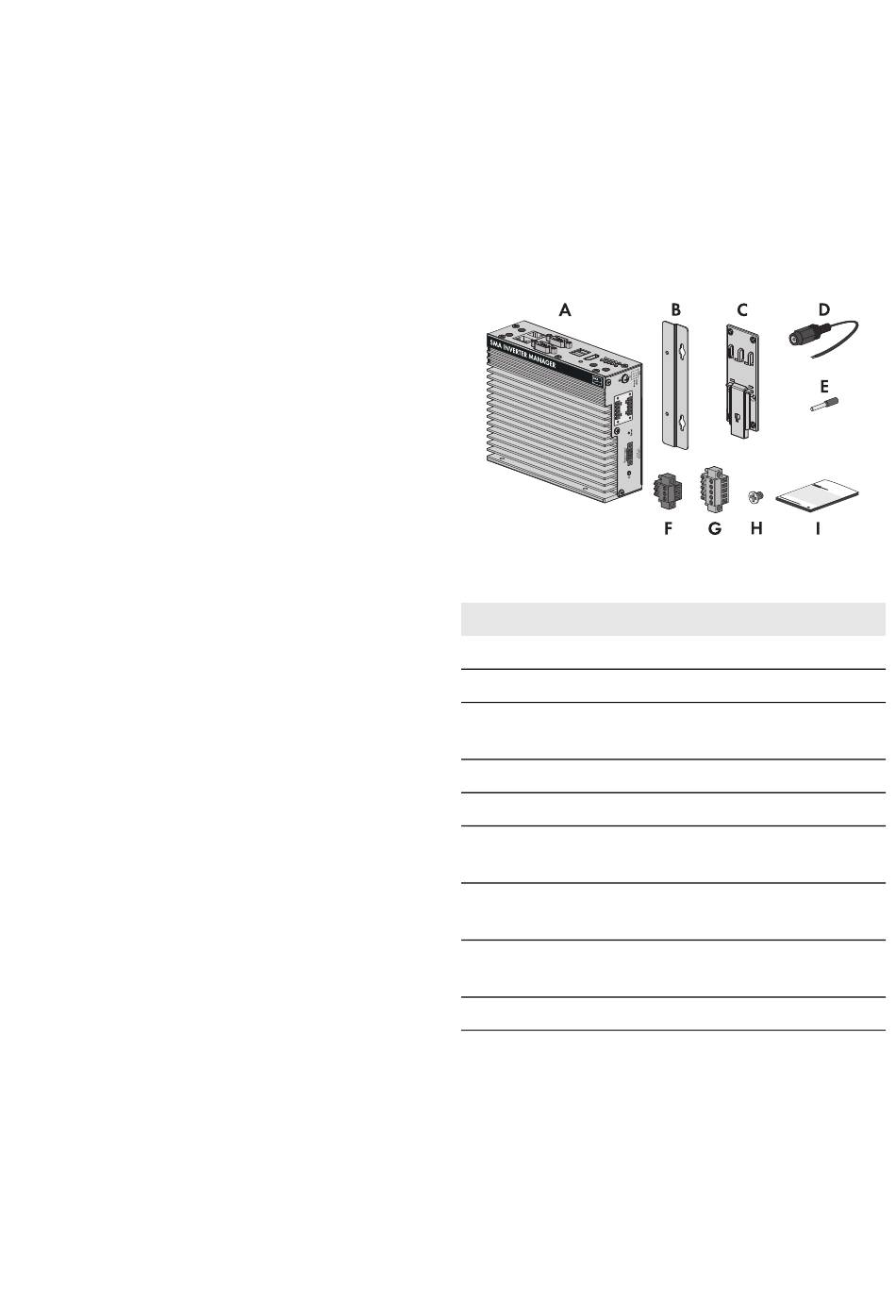

Figure 1: Components included in the scope of delivery of the
Inverter Manager
Position Number
A 1
B 2
C 1
D 1
E 2
F 1
G 2
H 4
I 1
Designation
Inverter Manager
Wall mounting brackets
Bracket for mounting on top-hat
rail (35 mm DIN rail)
Connection for electricity supply
Bootlace ferrules
Connecting terminal plate for
electricity supply
Connecting terminal plates for
serial port
Screws for wall and top-hat rail
mounting
Installation Manual
IMVIOBOX-IA-xx-19
